Products Description

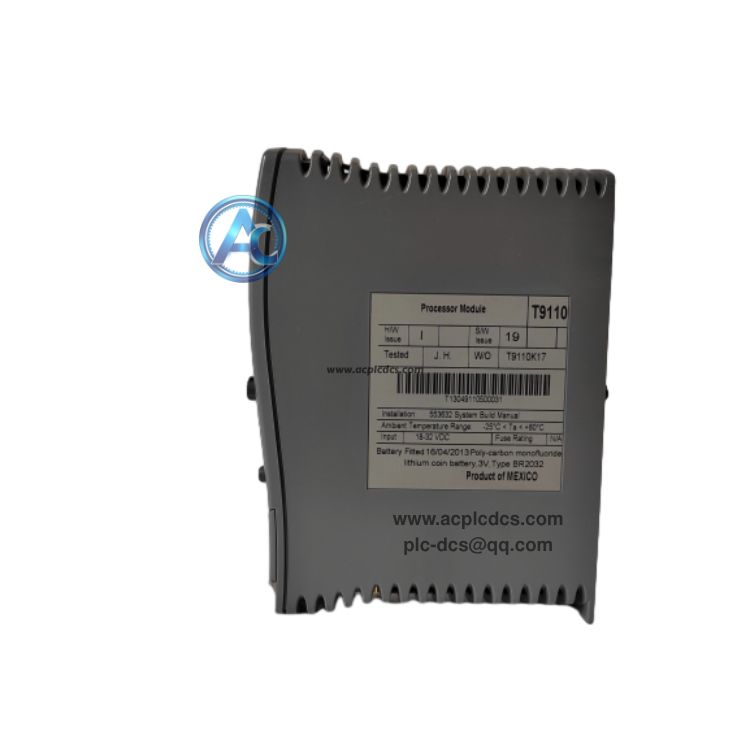

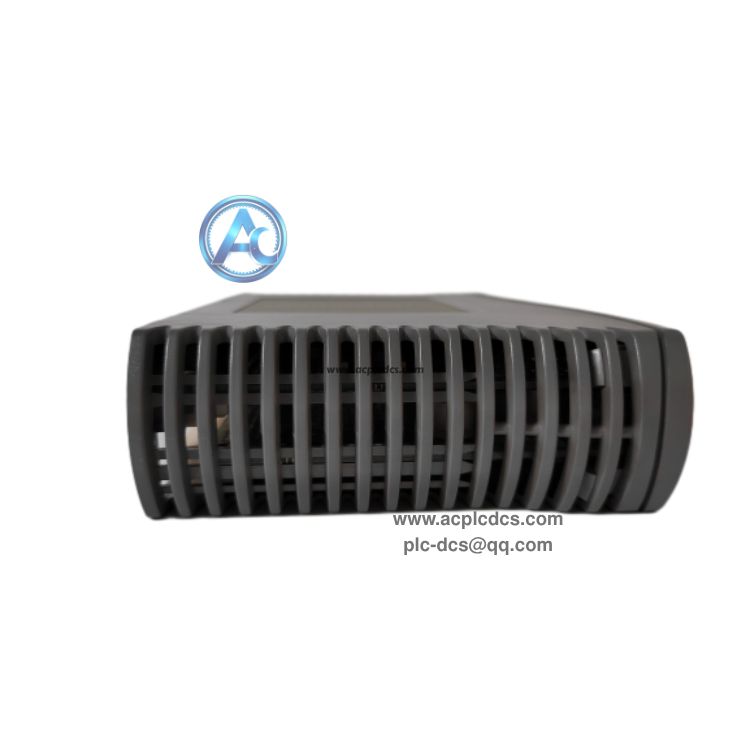

ICS TRIPLEX T9110 AADvance SIL3 TMR Processor Module in stock
ICS TRIPLEX T9110 is the triple modular redundant processor module for the AADvance safety instrumented system, which is installed on T9100 base unit. It executes safety control logic with 2oo3 hardware voting mechanism, coordinates all I/O modules in the rack and handles real-time safety data calculation for critical industrial protection systems.
This CPU module is equipped with dual 100Mbps Ethernet and dual serial communication ports, supports SOE sequence of event recording and Modbus TCP protocol. It obtains IEC 61508 SIL3 safety certification. It is discontinued legacy hardware, available as surplus or refurbished spare parts for maintenance and retrofit of existing AADvance SIS.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ICS TRIPLEX (Rockwell Automation) |
| 2 | Model | T9110 |
| 3 | Module Type | TMR Safety Processor Module (CPU) |
| 4 | Compatible System | AADvance SIS, installed on T9100 base unit |
| 5 | Safety Level | IEC 61508 SIL 3 certified, 2oo3 voting |
| 6 | Interfaces | Dual 100Base-T Ethernet, dual serial ports, SOE event logging |
| 7 | Operating Temperature | -25℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Run safety logic program with triple modular redundant 2oo3 hardware voting |
| 2 | Communicate with AADvance I/O modules and collect field safety signal data |
| 3 | Dual Ethernet ports for HMI, DCS upper system communication via Modbus TCP |
| 4 | SOE sequence of events recording to capture fault and trip event timestamps |
| 5 | Comprehensive self-diagnosis, detect and report internal hardware faults automatically |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Oil & gas refinery and pipeline SIL3 emergency shutdown system(ESD) |
| 2 | Power plant boiler and turbine safety trip control system |
| 3 | Chemical plant reactor fire & gas protection safety instrumented system |
| 4 | High-risk process industry safety interlock and protection control |
| 5 | AADvance safety system spare replacement and system retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ICS TRIPLEX T9110? A:It is the TMR processor CPU module for AADvance SIL3 safety instrumented system. It inserts into T9100 base unit, executes safety logic with 2oo3 voting, manages I/O data and network communication for safety control. |
| 2 | Q:What is the relationship between T9110 and T9100? A:T9100 is the rack base unit providing backplane bus and power. T9110 is the processor core module plugged into T9100 to perform safety logic calculation and control. |
| 3 | Q:Is T9110 still in production? A:ICS Triplex AADvance T9110 has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy SIL3 safety instrumented systems. |
