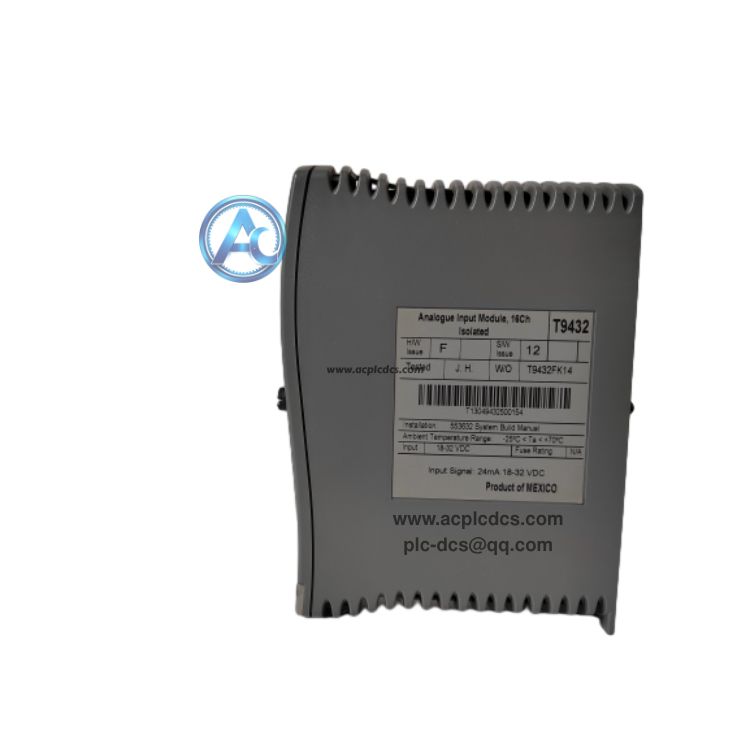

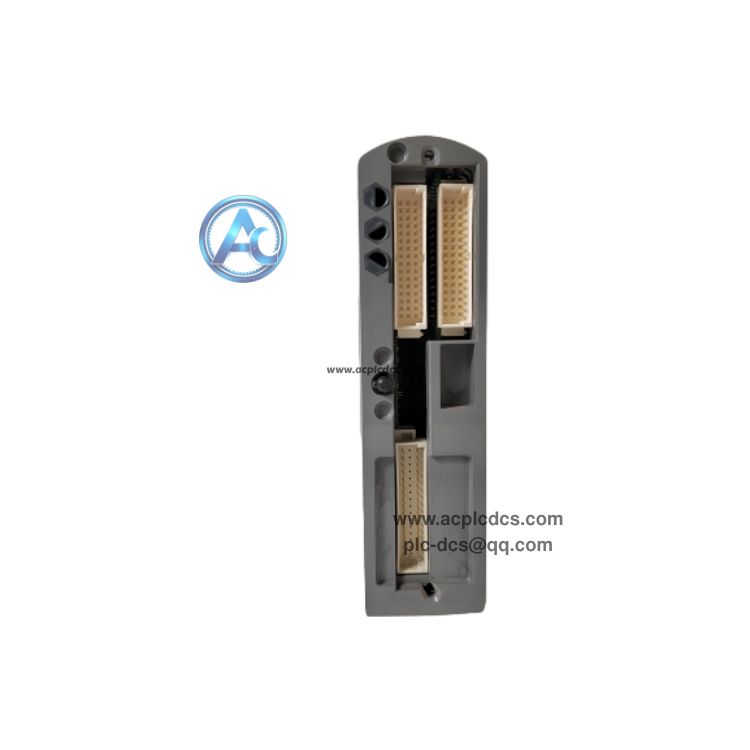

ICS TRIPLEX T9432 16-Channel Analog Input Module in stock
ICS TRIPLEX T9432 is a simplex analog input module for AADvance SIL3 safety instrumented system. It collects 4-20mA and voltage analog signals from field transmitters, converts analog signals into digital data and transmits to T9110 safety processor via rack backplane bus. It supports HART protocol for smart transmitter parameter reading and diagnosis.
This module adopts 16-bit high precision ADC and channel-to-backplane galvanic isolation. It supports simplex, dual redundant or TMR configurations according to safety requirements. It is IEC 61508 SIL3 certified. It is discontinued legacy spare hardware, used for maintenance and retrofit of existing AADvance safety systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ICS TRIPLEX (Rockwell Automation) |
| 2 | Model | T9432 |
| 3 | Module Type | 16-Channel Analog Input Module |
| 4 | Compatible System | AADvance SIS, works with T9110 processor & T9100 base unit |
| 5 | Signal Input | 4-20mA,0-20mA,0~10VDC,±10VDC, HART compatible |
| 6 | Resolution & Isolation | 16-bit ADC, 500VDC channel-to-backplane isolation |
| 7 | Operating Temperature | -40℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | 16-channel analog signal acquisition for pressure, temperature, flow and level transmitters |
| 2 | 16-bit analog-to-digital conversion with ±0.1% full scale high measurement accuracy |
| 3 | HART communication to read diagnostic information and configuration from smart field transmitters |
| 4 | Channel isolation protection to block surge and electromagnetic interference from field side |
| 5 | Comprehensive self-diagnosis for circuit fault, signal over-range and wire break detection |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Oil & gas refinery and pipeline SIL3 safety instrumented system |
| 2 | Power plant boiler and turbine safety monitoring analog signal collection |
| 3 | Chemical plant reactor safety interlock and process variable monitoring |
| 4 | Heavy industry fire & gas detection safety monitoring system |
| 5 | AADvance safety system spare replacement and system retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ICS TRIPLEX T9432? A:It is 16-channel analog input module for AADvance SIL3 safety instrumented system. It acquires 4-20mA/voltage analog signals from field transmitters, supports HART protocol and sends converted digital data to safety processor. |
| 2 | Q:What is the difference between T9431 and T9432? A:T9431 is 8-channel analog input module, while T9432 is 16-channel analog input module. Both support HART and can be configured for simplex, dual or TMR redundant architecture. |
| 3 | Q:Is T9432 still in production? A:ICS Triplex AADvance series T9432 has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy SIL3 safety instrumented systems. |
