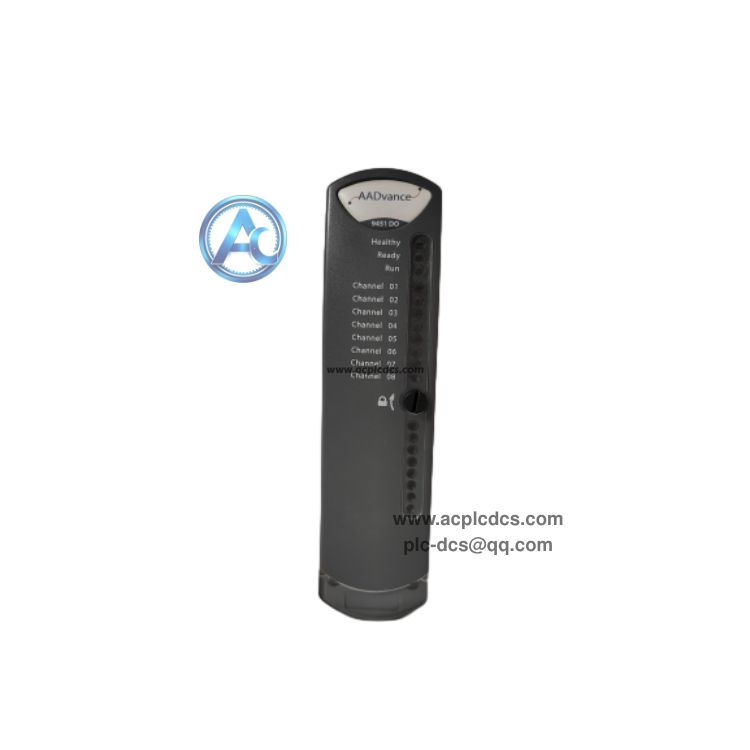

ICS TRIPLEX T9451 8-Channel Isolated Digital Output Module in stock
ICS TRIPLEX T9451 is an 8-channel galvanically isolated digital output module for AADvance SIL3 safety instrumented system. It receives safety logic commands from T9110 processor and converts internal signals into 24VDC drive outputs to control field solenoid valves, shutdown valves and alarm devices. It supports dual redundant signal path design for high-reliability safety execution.
This module features continuous per-channel load current and voltage monitoring, wire break and short-circuit fault diagnosis. It mates with T9852 termination assembly for field wiring connection. It meets IEC 61508 SIL3 safety standard. It is discontinued legacy hardware, used for spare replacement and retrofit of existing AADvance safety systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ICS TRIPLEX (Rockwell Automation) |
| 2 | Model | T9451 |
| 3 | Module Type | 8-Channel Isolated Digital Output Module |
| 4 | Compatible System | AADvance SIS, pairs with T9852 termination assembly |
| 5 | Output | 24VDC, max 1A continuous per channel |
| 6 | Safety Certification | IEC 61508 SIL3 certified |
| 7 | Operating Temperature | -40℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | 8 galvanically isolated digital output channels to drive 24VDC solenoid and shutdown valves |
| 2 | Execute safety trip commands sent by T9110 processor for emergency shutdown protection |
| 3 | Real-time channel monitoring of voltage and current to detect short circuit and open wire faults |
| 4 | Dual redundant signal path architecture to improve availability for safety control |
| 5 | Backplane communication with rack processor and comprehensive module self-diagnosis |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Oil & gas refinery and pipeline SIL3 emergency shutdown system (ESD) |
| 2 | Power plant boiler and turbine safety trip valve control system |
| 3 | Chemical plant reactor fire & gas protection safety instrumented system |
| 4 | High-risk industrial process safety interlock and valve actuation control |
| 5 | AADvance safety system spare replacement and system retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ICS TRIPLEX T9451? A:It is 8-channel isolated digital output module for AADvance SIL3 safety instrumented system. It receives safety commands from the processor and outputs 24VDC signals to operate field shutdown valves and alarm devices, with continuous channel fault monitoring. |
| 2 | Q:Which termination assembly matches T9451? A:T9451 works with T9852 dual redundant termination assembly. The TA provides field screw terminals and isolation protection between the module and field solenoid loads. |
| 3 | Q:Is T9451 still in production? A:ICS Triplex AADvance series T9451 has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy SIL3 safety instrumented systems. |
