ICS TRIPLEX T9100 (9100) AADvance Processor Base Unit in stock

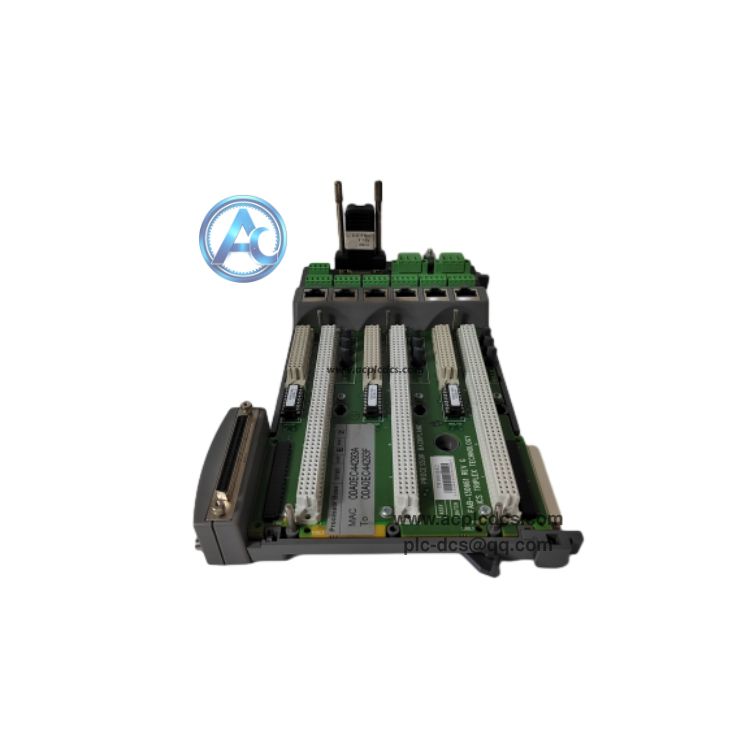

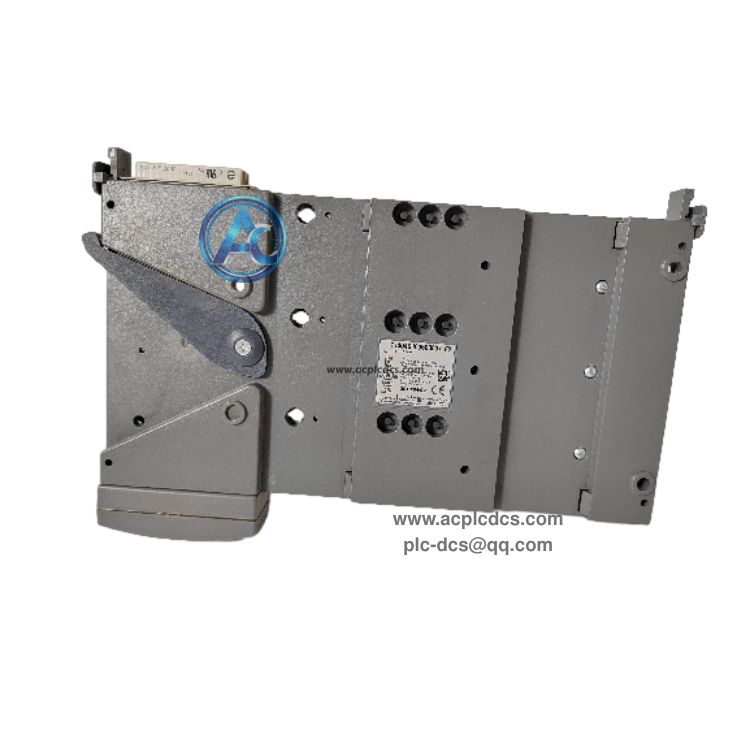

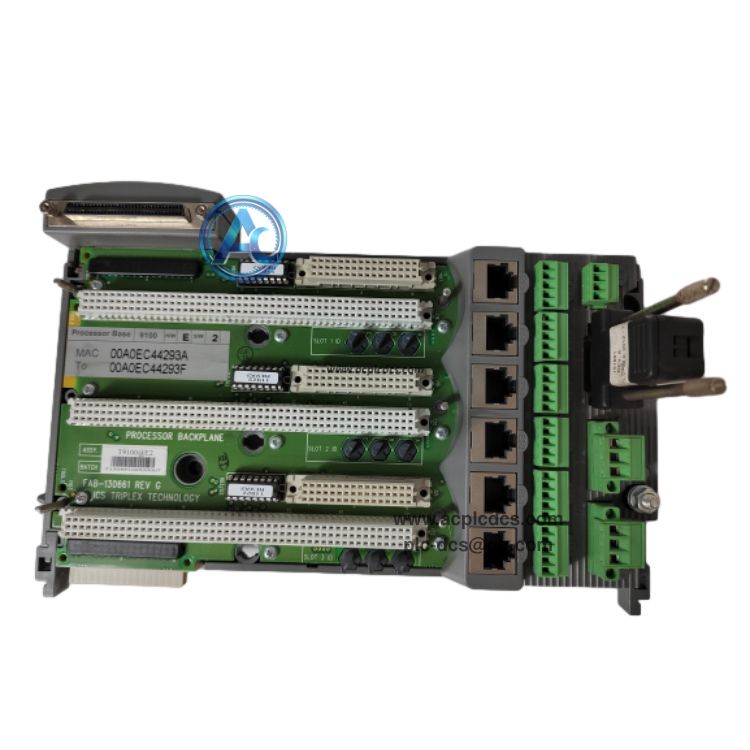

ICS TRIPLEX T9100 (often referred to as 9100) is the processor base unit for AADvance safety instrumented system, designed to host T9110 processor modules and connect I/O modules. It provides inter-processor bus, dual Ethernet and serial interfaces, supporting TMR or dual redundant safety architecture for critical industrial safety control.
This base unit supports up to 48 I/O modules, with dual 24VDC power input and program enable key switch. It achieves IEC 61508 SIL3 safety certification. It is legacy safety hardware, mainly available as surplus or refurbished spare parts for maintenance and retrofit of existing AADvance safety systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ICS TRIPLEX (Rockwell Automation) |
| 2 | Model | T9100 (9100) Processor Base Unit |
| 3 | Module Type | AADvance Processor Base Unit |
| 4 | Safety Level | IEC 61508 SIL 3 certified |
| 5 | Power Supply | Dual redundant +24VDC input |
| 6 | Expansion Capacity | Supports max 48 I/O modules |
| 7 | Operating Temperature | -40℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Base rack carrier for T9110 processor modules, supports TMR or dual redundant architecture |
| 2 | Command & response bus communication between processor and I/O modules |
| 3 | Integrated Ethernet and serial ports for controller network and local communication |
| 4 | Built-in BUSP memory to store processor IP address for hot module replacement |
| 5 | Program enable key switch to protect safety logic configuration from unauthorized modification |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Oil & gas pipeline, refinery SIL3 safety instrumented system (SIS) |
| 2 | Power plant boiler and turbine emergency trip safety control |
| 3 | Chemical plant reactor safety interlock and fire & gas protection system |
| 4 | Metallurgy and pulp & paper high-risk process safety shutdown system |
| 5 | Existing AADvance safety system spare replacement and retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ICS TRIPLEX 9100 (T9100)? A:It is AADvance processor base unit for SIL3 safety instrumented system, serving as the backplane carrier for T9110 CPU modules, providing bus, power and communication interfaces for safety control system. |
| 2 | Q:What is the difference between T9100 base unit and T9110 processor module? A:T9100 is the base rack unit, which provides bus and connection hardware. T9110 is the actual processor CPU module, which plugs into T9100 to execute safety logic programs. |
| 3 | Q:Is T9100 still in production? A:ICS Triplex AADvance series T9100 has been phased out of production. Available stock is surplus or refurbished spare parts for maintenance of old safety instrumented systems. |
