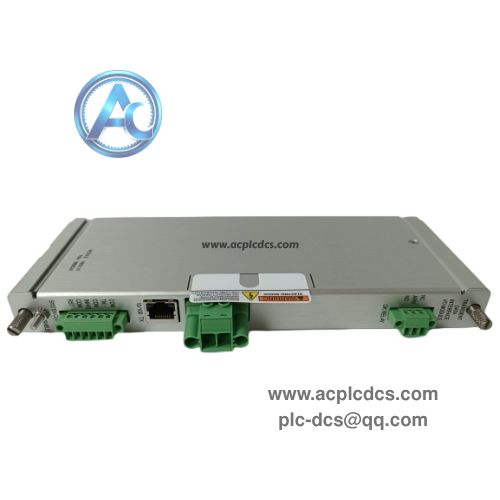

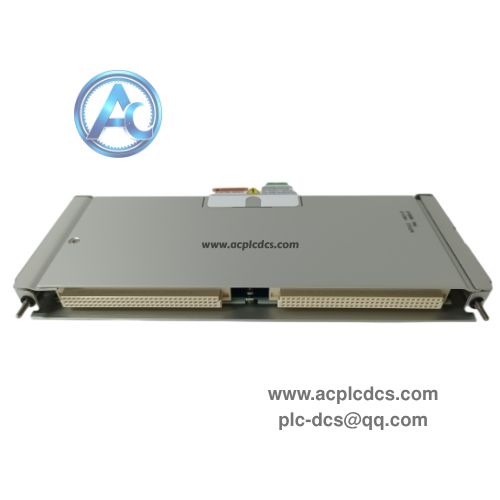

Bently Nevada 3500/22M 146031-01 Transient Data Interface Module in stock
Bently Nevada 3500/22M 146031-01 is a transient data interface module for the 3500 machinery protection system. It captures high-speed waveform and transient data from monitoring channels for post-event vibration analysis.
This module supports high resolution waveform storage and data uploading to analysis software. It is commonly used in power and petrochemical plants for turbine trip disturbance troubleshooting and spare replacement.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Bently Nevada (Baker Hughes) |
| 2 | Model | 3500/22M 146031-01 |
| 3 | Module Type | Transient Data Interface Module |
| 4 | Data Interface | Ethernet for waveform data transfer |
| 5 | Power Supply | Supplied by rack backplane |
| 6 | Working Temperature | -30 ~ +65°C |
| 7 | Status | Legacy spare for 3500 TSI rack |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Collect high-speed transient waveform data from all 3500 monitoring modules |
| 2 | Store waveform snapshots automatically when alarm or trip events trigger |
| 3 | Transmit captured waveform data to external analysis workstation via Ethernet |
| 4 | Support orbit, time base and spectrum data for rotating machinery diagnosis |
| 5 | LED indicators on front panel for module status and network communication |
Application Scenarios
| No. | Application |
|---|---|
| 1 | 3500 series TSI machinery protection monitoring rack |
| 2 | Steam turbine & gas turbine vibration transient analysis |
| 3 | Power plant turbine trip and fault root cause investigation |
| 4 | Oil & gas compressor rotating equipment condition monitoring |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is Bently Nevada 3500/22M 146031-01? A: It is transient data interface module for 3500 rack, used for high-speed waveform capture and vibration analysis. |
| 2 | Q: What data can this module capture? A: It captures time waveform, orbit and spectrum data for rotating machinery fault diagnosis. |
| 3 | Q: Does it replace the 3500/20 rack interface? A: No, 3500/22M works together with 3500/20, they perform different functions. |
