Products Description

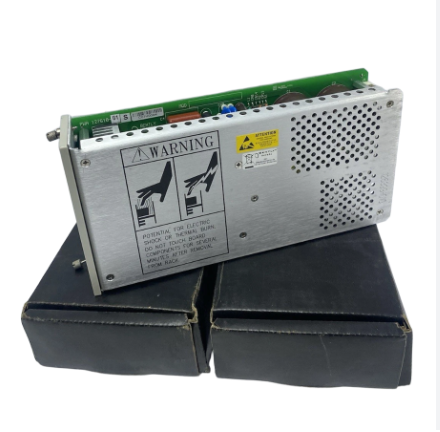

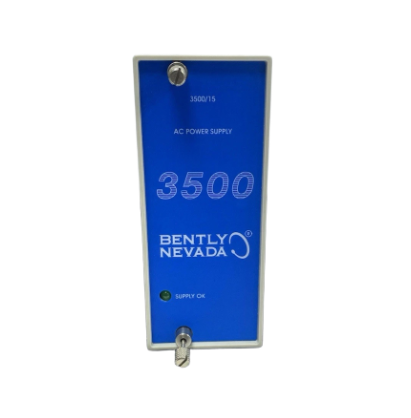

Bently Nevada 3500/15 127610-01 AC Power Supply Module in stock
Bently Nevada 3500/15 127610-01 is a half-height AC power supply module for the 3500 machinery protection system. It converts AC input into stable internal rack power to support all monitoring I/O modules.
This power module supports redundant dual power configuration and hot-swap capability. It is widely used on steam/gas turbine TSI systems for power plant and petrochemical maintenance replacement.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Bently Nevada (Baker Hughes) |
| 2 | Model | 3500/15 127610-01 |
| 3 | Module Type | AC Power Supply Module, Half-height |
| 4 | AC Input Range | 90 ~ 264 VAC |
| 5 | Output | 24VDC, 2A |
| 6 | Working Temperature | -30 ~ +65°C |
| 7 | Status | Legacy spare for 3500 TSI rack |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Convert wide-range AC input to stable DC power for 3500 rack modules |
| 2 | Support redundant dual power supply configuration for high availability |
| 3 | Hot-swappable, replacement without rack shutdown with redundant setup |
| 4 | Built-in power filter and "Supply OK" LED health indicator |
| 5 | Must be installed on designated left slots of 3500 rack |
Application Scenarios
| No. | Application |
|---|---|
| 1 | 3500 series TSI machinery protection monitoring rack |
| 2 | Steam turbine & gas turbine supervision instrumentation |
| 3 | Thermal power plant turbine monitoring system maintenance |
| 4 | Oil & gas rotating equipment vibration protection system |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is Bently Nevada 3500/15 127610-01? A: It is AC power supply module for 3500 rack, supplying power for TSI vibration monitoring modules. |
| 2 | Q: Can this module be hot swapped? A: Yes, hot swap is supported when redundant second power supply is fitted in rack. |
| 3 | Q: Where to install this module? A: It is half-height module and must be fitted on left dedicated slots of 3500 rack. |
