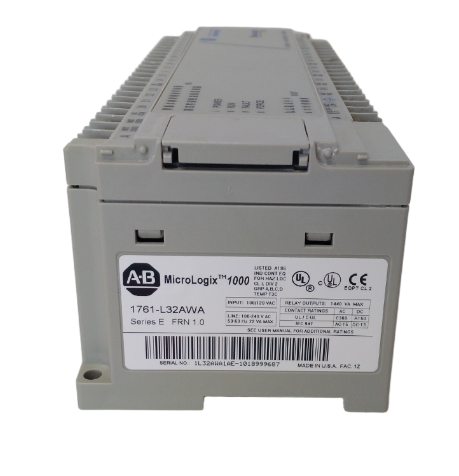

The Allen-Bradley 1761-L32AWA is an integrated MicroLogix 1000 PLC controller with built-in digital I/O points. It executes ladder-logic control programs for small-scale automation equipment, collecting field sensor signals and driving actuators to complete sequential interlock and logic control for manufacturing machinery.

This compact all-in-one unit features AC power supply, 20-point input and 12-point relay output, RS-232 communication port and status LED indicators. It is widely used in packaging, conveying and general-machinery automation. It serves as important aftermarket spare for maintenance, overhaul and retrofitting of legacy factory automation control cabinets.

Main Specifications

1. Brand: Allen-Bradley (Rockwell); Model:1761-L32AWA; Type: MicroLogix 1000 Integrated PLC Controller

2. Power Supply: 120-240V AC; I/O: 20-point digital input, 12-point relay output

3. Interface: RS-232 communication port, terminal block for field wiring, status diagnostic LED indicators

4. Function: Ladder-logic program execution, digital signal acquisition, relay output driving, communication with programming software and HMI

5. Feature: Compact integrated design, panel / DIN-rail mounting, relay output type, industrial-grade compact PLC

6. Installation: DIN-rail mounting or panel mounting inside equipment control cabinet

7. Power: 120-240V AC; Operating Environment:0℃ ~ +60℃, 5%-95% RH non-condensing

8. Certifications: CE compliant for factory industrial automation applications

Core Functions

1. Run user-written ladder-logic program to implement equipment sequence control, interlock protection and logic judgment.

2. Collect digital input signals from proximity switches, push-buttons and other field sensing devices.

3. Drive external contactors, solenoid valves and indicators via built-in relay output channels according to control logic.

4. RS-232 port supports program download/upload, connecting to programming software or simple HMI devices for data interaction.

5. On-board LED indicators reflect power, run status and I/O channel state for fast fault diagnosis during commissioning and maintenance.

6. Compact DIN-rail installation facilitates replacement during equipment overhaul and on-site troubleshooting work.

Application Scenarios

1. Compact integrated PLC controller component for small-scale factory automation machinery.

2. Critical spare-part for packaging machines, conveyor systems and general-purpose mechanical-equipment control cabinets.

3. Retrofit and spare replacement for legacy 1761-L32AWA controller industrial-equipment upgrade projects.

4. Machine-control-cabinet overhaul, logic-program debugging and faulty integrated-PLC replacement tasks.

5. Spare-parts inventory for machinery-automation integrators and manufacturing-plant engineering contractors.

6. Global aftermarket spare supply for technical teams maintaining legacy Allen-Bradley MicroLogix 1000 automation hardware.
