ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined I/O Module

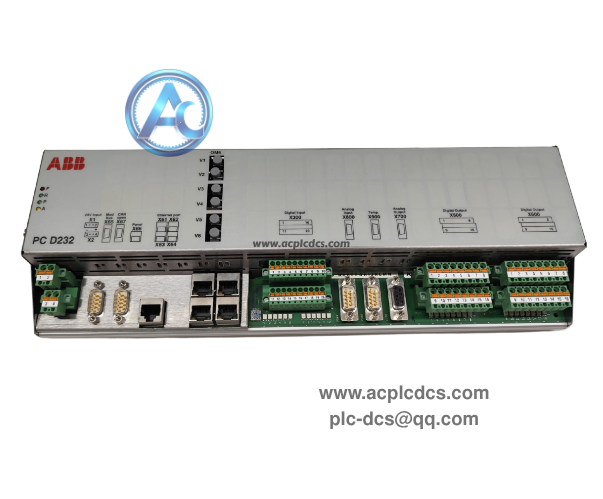

ABB PCD232A with part number 3BHE022293R0101 is a PEC80-CIO combined I/O and communication module for ABB UNITROL 6000 X-power excitation control system. It integrates analog and digital signal acquisition, relay output and multi-port Ethernet switch functions, acting as the front-end signal interface for generator excitation regulation.

This module contains isolated digital inputs, relay outputs and analog channels for real-time sampling of generator voltage and current signals. Its built-in 4-port Ethernet switch supports high-speed internal system communication. It is widely used as spare replacement parts for power plant generator excitation cabinet maintenance and system retrofit projects.

Main Specifications

1. Brand: ABB; Model: PCD232A; Part No: 3BHE022293R0101; Type: PEC80-CIO Combined I/O Module

2. Compatible System: UNITROL 6000 X-power generator excitation system

3. Channels: 12 isolated DI, 16 relay DO, 3 AI, 3 AO; 4-port 10/100Mbps Ethernet switch

4. Signal Range: Analog ±10V / ±20mA; Relay rating up to 250VAC 10A

5. Power Supply: Rack backplane powered; Galvanic isolation for field signals

6. Operating Temp: 0℃ ~ +60℃; Industrial EMC protection; IP20 rating

7. Supply Status: Spare I/O communication module for ABB UNITROL excitation control rack

Core Functions

1. Collect analog voltage/current signals and digital status signals from generator excitation equipment.

2. Output relay control signals to drive contactors and execute excitation protection and sequence logic.

3. Built-in 4-port Ethernet switch to realize high-speed internal data exchange within UNITROL 6000 system.

4. Galvanic isolation protects the core control board from surge and interference from field circuits.

5. Onboard LED indicators show channel status, network connection and fault alarms for site inspection.

6. Real-time signal transmission between field sensors and excitation main controller for closed-loop regulation.

Application Scenarios

1. ABB UNITROL 6000 excitation control cabinets for thermal power and hydroelectric generators.

2. Generator voltage regulation, excitation monitoring and protection control loops in power plants.

3. Replacement of defective PEC80-CIO combined I/O modules in existing excitation racks.

4. Spare parts inventory for power plant automation maintenance and engineering teams.

5. System upgrade and hardware expansion of legacy UNITROL generator excitation control systems.

6. Distributed power generation and large motor excitation control projects adopting ABB UNITROL series.

FAQ

1. Q: What is ABB PCD232A 3BHE022293R0101?
   A: It is PEC80-CIO combined I/O and communication module for UNITROL 6000 generator excitation system.

2. Q: What is the core function of PCD232A?
   A: It samples analog and digital field signals, outputs relay commands and provides 4-port Ethernet internal communication.

3. Q: Which system does this module belong to?
   A: It is designed for ABB UNITROL 6000 X-power generator excitation control system in power generation industry.
