ALLEN-BRADLEY 1336-QOUT-SP23A Output Transistor Kit Full Set in stock

Allen‑Bradley 1336-QOUT-SP23A is a complete output transistor assembly kit for 1336 ST / SPIDER series high-power AC drives. The full set includes 2 pcs 74101-177-52 gate drive boards and 4 pcs Infineon FZ1200R16KF4 IGBT power modules.

This power kit has been discontinued by Rockwell Automation. It is mainly used as spare parts for maintenance and overhaul of large 1336 series variable frequency drives in metallurgy, textile and heavy industrial production lines.

Data Parameters

• 1. Brand: ALLEN-BRADLEY (Rockwell Automation)

• 2. Model: 1336-QOUT-SP23A

• 3. Full Kit Contents: 2 pcs 74101-177-52 drive boards, 4 pcs FZ1200R16KF4 IGBT modules

• 4. Product Type: Output Transistor Power Assembly Kit

• 5. Application: 1336 ST / SPIDER high-power AC variable frequency drive

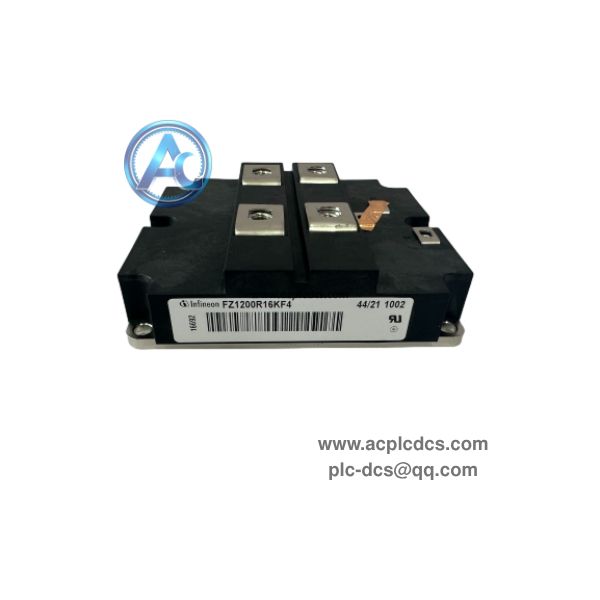

• 6. IGBT Spec: FZ1200R16KF4, 1600V, 1200A half-bridge IGBT module

• 7. Drive Board: 74101-177-52, gate signal driving & protection board

• 8. Characteristic: High current output, built-in overcurrent and temperature protection

• 9. Mounting: Installed inside 1336 series drive power cabinet

• 10. Operating Temperature: -10℃ ~ +70℃

Core Functions

• 1. Convert DC bus voltage into three-phase AC output to drive heavy-duty motors.

• 2. 74101-177-52 board sends isolated gate pulses to control IGBT switching.

• 3. FZ1200R16KF4 IGBT realizes high-power switching and energy conversion.

• 4. Collect IGBT temperature and current signals for fault detection and protection.

• 5. Cooperate with the main control board to complete vector speed regulation of the drive.

Application Scenarios

• 1. Heavy industrial 1336 SPIDER high-power AC variable frequency drive.

• 2. Metallurgical rolling mill, textile fiber production line main drive equipment.

• 3. Large fan, water pump and conveyor high-power speed regulation system.

• 4. 1336 ST series drive power unit repair and spare replacement.

• 5. Old Rockwell 1336 series drive overhaul and technical transformation.

FAQ

• 1. Q: What is 1336-QOUT-SP23A?
      A: It is a complete output power kit for Allen‑Bradley 1336 ST/SPIDER drives.

• 2. Q: What does this full set contain?
      A: 2 pcs 74101-177-52 drive boards and 4 pcs FZ1200R16KF4 IGBT modules.

• 3. Q: Is this model still in production?
      A: Discontinued, only available for aftermarket spare parts supply.
