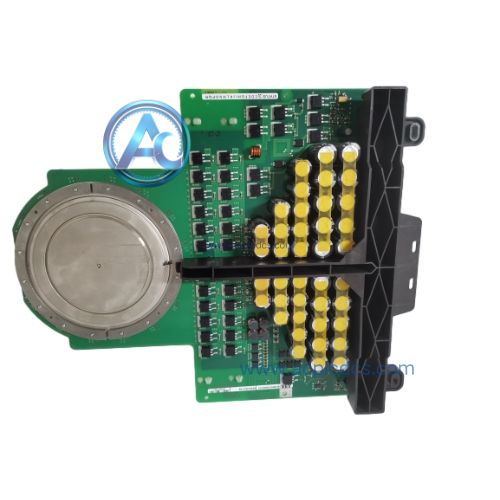

ABB S-073N ALU 3BHB009884R5211 ACS6000 Drive Phase Module in stock
ABB S-073N ALU 3BHB009884R5211 is an IGCT-based phase module exclusively designed for ABB ACS6000 medium voltage variable frequency drive system. It acts as the active front-end rectifier unit to precisely control phase angle, realize high-efficiency power conversion and power factor correction for high-power motor drive.
This module integrates power semiconductor devices, gate drive circuits and multi-layer protection circuits. With modular structure, it supports cabinet assembly and hot maintenance, and is built to endure heavy vibration, dust and temperature variation in industrial sites.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | S-073N ALU, Part No:3BHB009884R5211 |
| 3 | Module Type | IGCT Phase Module / Active Front End |
| 4 | Applicable System | ACS6000 Medium Voltage Drive |
| 5 | Phase Measurement Accuracy | ±0.1° |
| 6 | Structure | Modular rack mount design |
| 7 | Operating Temperature | -10℃ ~ +70℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Precise voltage and current phase detection and control for medium voltage power conversion |
| 2 | Active front-end rectification, power factor correction and bidirectional energy flow control |
| 3 | IGCT gate driving and switching control for high-power converter |
| 4 | Built-in overcurrent, overtemperature and overvoltage hardware protection mechanism |
| 5 | Real-time fault diagnosis and status feedback to ACS6000 main controller |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Metallurgical rolling mill medium voltage motor drive control |
| 2 | Oil & gas large compressor and pump variable speed control |
| 3 | Power plant auxiliary high-power fan and water pump speed regulation |
| 4 | Mine large medium voltage motor and conveyor drive system |
| 5 | Heavy industry ACS6000 medium voltage frequency conversion retrofit project |
