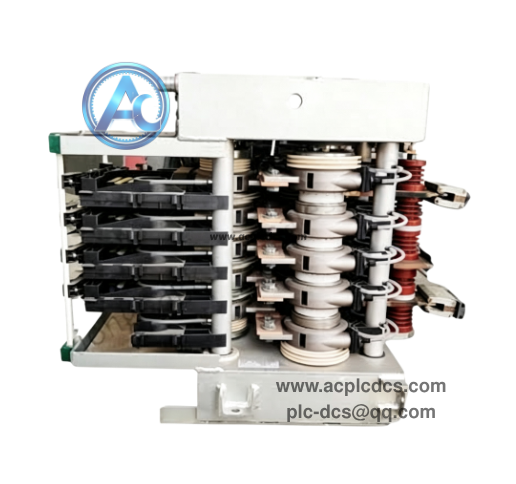

ABB S-123H 3BHB030479R0512 ACS6000 IGCT Phase Module in stock

ABB S-123H 3BHB030479R0512 is a high-performance phase module designed for ABB ACS6000 medium voltage AC drive systems. It serves as a core power phase control unit for medium voltage variable frequency drives, responsible for power semiconductor gate pulse generation, galvanic isolation and real-time phase monitoring.

This module adopts closed-loop water cooling design to maintain stable operation under heavy load and high-temperature industrial conditions. It is widely used as a replacement spare part for ACS6000 medium voltage drives in mining, oil & gas, metallurgy and power industries, supporting long-term continuous high-power operation.

Main Specifications

1. Brand: ABB; Model: S-123H; Part No:3BHB030479R0512; Series: ACS6000 Medium Voltage Drive

2. Type: Medium Voltage Phase Control Module

3. Cooling Method: Closed-loop water cooling

4. Operating Temperature: -10℃ ~ +50℃; Protection Grade: IP54

5. Function: Phase power control, pulse output, hardware fault diagnosis

6. Application: High-power medium voltage AC variable frequency drive system

Core Functions

1. Generate isolated gate drive pulses to control power semiconductor devices of single phase in inverter.

2. Provide galvanic isolation between low voltage control circuit and high voltage power circuit for system safety.

3. Real-time monitoring of phase current, temperature and power device status, built-in multi-protection mechanism.

4. Quickly block drive pulses and send alarm signals when detecting short circuit, over-temperature or overload faults.

5. Optical fiber communication with main drive controller to transmit diagnostic data and operating status.

6. Modular structure for easy disassembly, maintenance and spare parts replacement of ACS6000 drive cabinet.

Application Scenarios

1. ACS6000 medium voltage variable frequency drive system for mining, metallurgy and cement industry.

2. High-power fan, pump and compressor medium voltage drive control in oil & gas and chemical plants.

3. Maintenance and faulty module replacement of existing ABB ACS6000 medium voltage drive cabinets.

4. Power plant medium voltage motor speed regulation and energy-saving transformation projects.

5. Industrial heavy-duty equipment medium voltage drive spare parts inventory storage.

6. Marine high-power medium voltage motor drive and power conversion control systems.

FAQ

1. Q: What is ABB S-123H 3BHB030479R0512?
   A: It is a phase module for ABB ACS6000 medium voltage AC drive, used for single phase power control and fault monitoring.

2. Q: Which drive system does it fit?
   A: It is specially designed for ABB ACS6000 series medium voltage variable frequency drive cabinets.

3. Q: What cooling method does it adopt?
   A: It uses closed-loop water cooling, suitable for high power and high ambient temperature working conditions.
