ABB HIEE200130R0002 AFC094AE02 ARCnet Control Panel

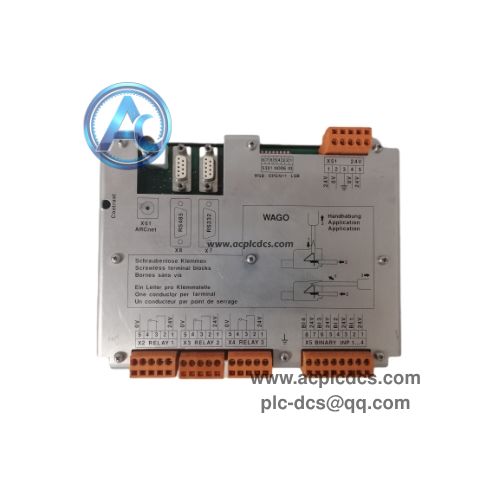

ABB AFC094AE02 with part number HIEE200130R0002 is an ARCnet control panel developed for ABB industrial control systems. It acts as an ARCnet communication interface and control board, responsible for data exchange between the main controller and distributed field units via ARCnet fieldbus protocol.

This unit adopts industrial-grade circuit design with built-in bus diagnostic functions and status LED indicators. It is widely used as spare replacement parts for power generation, chemical and pulp & paper plant control cabinet maintenance, system retrofit and upgrade projects.

Main Specifications

1. Brand: ABB; Model: AFC094AE02; Part No: HIEE200130R0002; Type: ARCnet Control Panel

2. Communication Protocol: ARCnet; Application: Industrial distributed control system

3. Power Supply: Rack backplane powered; Industrial EMC protection design

4. Indicator: LED status lights for power, bus communication and fault alarm

5. Operating Temp: -20℃ ~ +60℃; Protection Class: IP20

6. Material Origin: Switzerland; Net Weight: 1.2kg

7. Supply Status: Spare ARCnet control panel for ABB legacy control rack

Core Functions

1. Realize ARCnet fieldbus communication between ABB main controller and distributed field devices.

2. Transmit field process data to the controller and forward control commands to remote field units.

3. Manage ARCnet bus node addressing, data polling and communication sequence control.

4. Built-in bus self-diagnosis function to detect bus disconnection, communication error and node failure.

5. Onboard LED indicators display running status and fault codes for fast on-site troubleshooting.

6. Stable data transmission under heavy electromagnetic interference in industrial environments.

Application Scenarios

1. ABB legacy distributed control cabinets used in power, pulp & paper and chemical industries.

2. Distributed field device networking based on ARCnet fieldbus for process control systems.

3. Replacement of damaged ARCnet control panels in existing ABB control racks.

4. Spare parts inventory for automation maintenance teams of process industries.

5. System upgrade and fieldbus node expansion of old ABB industrial control systems.

6. Oil & gas, metallurgy and water treatment plants with ARCnet distributed control architecture.

FAQ

1. Q: What is ABB HIEE200130R0002 AFC094AE02?
   A: It is an ARCnet control panel for ABB industrial control system, responsible for ARCnet fieldbus data communication.

2. Q: What is ARCnet used for?
   A: ARCnet is an old industrial token bus protocol used for connecting distributed control nodes in legacy DCS systems.

3. Q: What is the weight of this panel?
   A: The net weight of ABB AFC094AE02 HIEE200130R0002 is about 1.2 kg.
