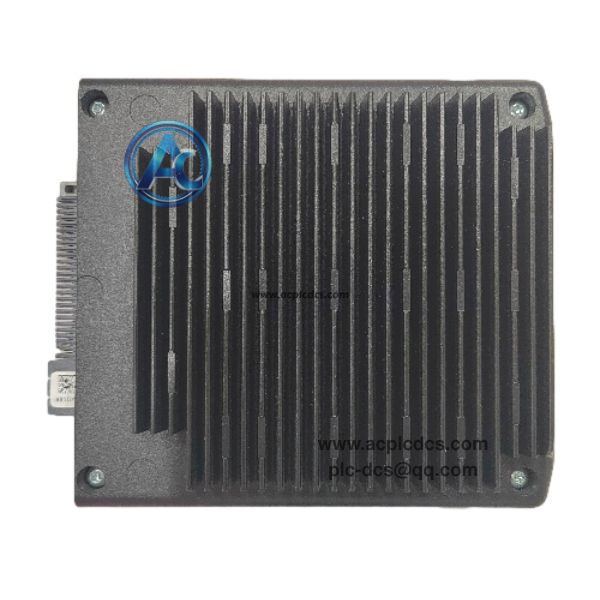

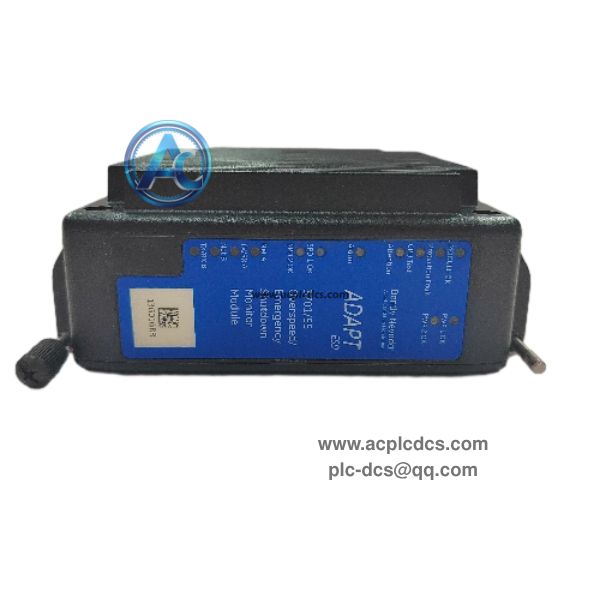

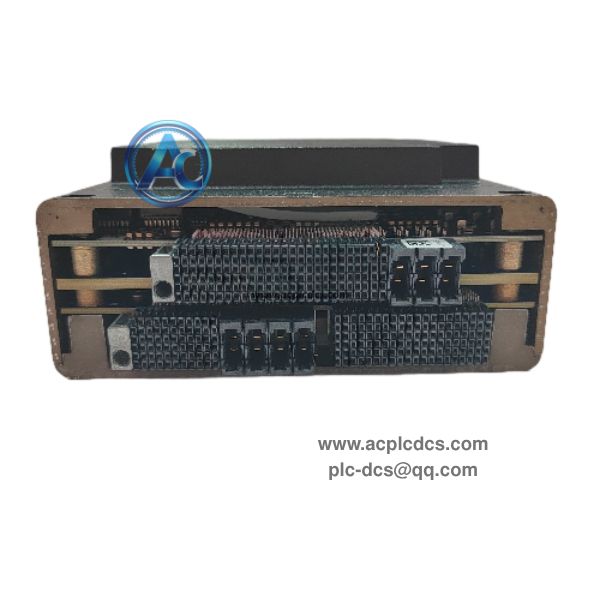

Bently Nevada 3701/55 323073-01 ADAPT ESD Relay Output Module

Bently Nevada 3701/55 323073-01 is a relay output module belonging to the Bently Nevada ADAPT ESD emergency shutdown system. It adopts triple modular redundant architecture, delivering fast and fail-safe relay contact outputs to drive shutdown solenoid valves and alarm annunciators for rotating machinery protection.

This module meets SIL3 safety certification with comprehensive self-diagnosis functions for relay channels and hardware. It works together with ADAPT ESD controller for turbine overspeed and emergency trip control, widely used for power and oil&gas safety cabinet maintenance, spare replacement and safety interlock retrofit projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3701/55, Part Number:323073-01.

• 3. Product Type: ADAPT ESD Relay Output Module.

• 4. Product Series: ADAPT Overspeed ESD System.

• 5. Architecture: Triple Modular Redundancy (TMR).

• 6. Safety Level: SIL3 certified per IEC 61508.

• 7. Response Time: Nominal 2ms logic, 8ms relay switching.

• 8. Power Supply: 18~36 VDC.

• 9. Diagnosis: Relay channel and hardware continuous fault detection.

• 10. Operating Temperature: -20℃ ~ +65℃.

Core Functions

• 1. Receive safety trip commands from ADAPT ESD controller and trigger relay contact actions.

• 2. Provide reliable dry contact outputs to control shutdown valves, alarm lamps and auxiliary interlock devices.

• 3. Continuous built-in diagnostics monitor relay status, detect contact or wiring failures.

• 4. Support overspeed protection and emergency shutdown logic execution for steam/gas turbines and compressors.

• 5. TMR redundant design ensures safety loop integrity when single internal component fails.

Application Scenarios

• 1. Power plant steam/gas turbine overspeed ESD protection cabinet spare parts replacement.

• 2. Oil & gas compressor rotating machinery emergency shutdown system upgrade project.

• 3. Petrochemical plant critical rotating equipment safety interlock control spare renewal.

• 4. Refining industries SIL3 machinery protection system spare inventory backup.

• 5. Legacy Bently Nevada ADAPT ESD system aging relay output module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3701/55 323073-01?
      A: It is relay output module for Bently Nevada ADAPT ESD overspeed emergency shutdown system, SIL3 certified for turbine safety protection.

• 2. Q: What equipment does it protect?
      A: Mainly for steam turbines, gas turbines, hydro turbines and compressors in power, oil and petrochemical plants.

• 3. Q: What safety standard does it comply with?
      A: It complies with IEC 61508 SIL3 and API 670 machinery protection standards.
