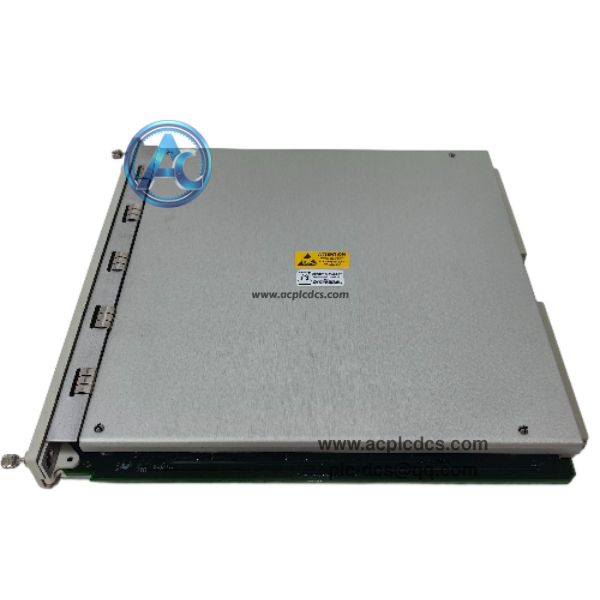

Bently Nevada 3500/92 136180-01 Communication Gateway Module

Bently Nevada 3500/92 136180-01 is a communication gateway module designed for the Bently Nevada 3500 machinery protection rack. It collects all real-time machinery monitoring data from rack internal bus, and provides Ethernet communication interface to transmit vibration, speed and alarm data to DCS, PLC or monitoring workstation.

This module supports multiple industrial communication protocols and built-in network diagnostic functions. It adopts hot-swap design without stopping the monitoring system, widely used for rotating machinery monitoring cabinet maintenance, spare parts replacement and machine protection system network transformation projects.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes).

• 2. Model: 3500/92, Part Number:136180-01.

• 3. Product Type: Communication Gateway Module.

• 4. Product Series: 3500 Machinery Protection System.

• 5. Port: Ethernet communication port.

• 6. Function: Rack data collection and protocol transmission.

• 7. Protocol: Support multiple standard industrial communication protocols.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Network link and module hardware fault detection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Collect real-time vibration, speed, position and alarm data from all modules inside the 3500 rack via internal bus.

• 2. Convert internal rack data into standard industrial protocol and transmit to upper DCS, PLC or monitoring workstation over Ethernet.

• 3. Provide remote access channel for viewing machinery operating status, alarm records and historical monitoring data.

• 4. Monitor network connection status and report communication interrupt or module hardware faults to system alarms.

• 5. Support hot-swap replacement to perform on-site maintenance without interrupting the whole machinery protection system.

Application Scenarios

• 1. Thermal power plant turbine monitoring cabinet network communication spare parts replacement and maintenance.

• 2. Oil & gas compressor machinery protection system data upload and network upgrade project.

• 3. Petrochemical plant large rotating equipment monitoring data transmission system spare renewal.

• 4. Steel, paper and mining factories critical machine protection system remote monitoring backup inventory.

• 5. Legacy Bently Nevada 3500 machinery monitoring system aging communication gateway module replacement project.

FAQ

• 1. Q: What is Bently Nevada 3500/92 136180-01?
      A: It is Ethernet communication gateway module for Bently Nevada 3500 machinery protection system for uploading machine monitoring data.

• 2. Q: What is its main purpose?
      A: It gathers data from all rack modules and sends real-time machine condition and alarm information to upper host systems.

• 3. Q: Can 3500/92 be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole machinery monitoring rack.
