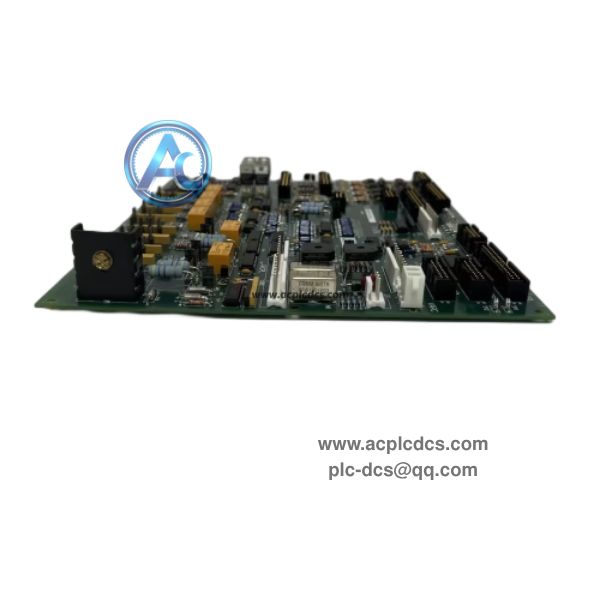

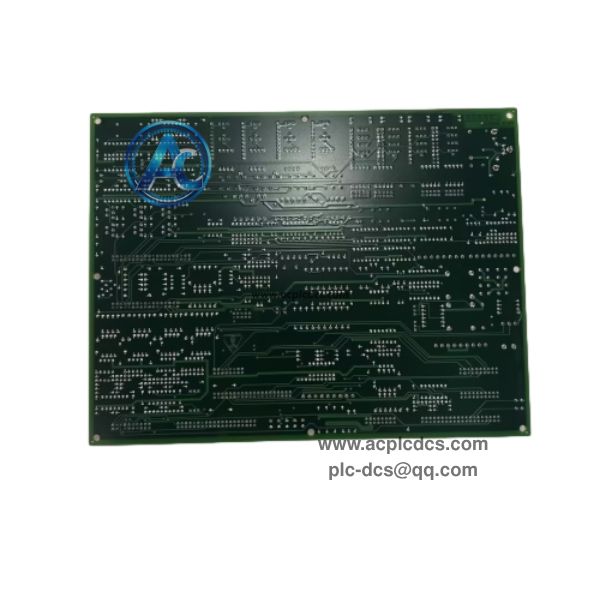

GE DS200TCQCG1AJD RST Overflow Analog I/O Expander Board

GE DS200TCQCG1AJD is an RST overflow analog I/O expander board for GE Speedtronic Mark V gas turbine control system. It collects and processes analog field signals, provides LVDT excitation signal and signal scaling processing for turbine monitoring and control loops.

This rack plug-in circuit board communicates with the main processor through the backplane bus. It is widely used for spare replacement and maintenance of gas turbine control cabinets in power plants, oil & gas energy stations.

Data Parameters

• 1. Brand: GE.

• 2. Model: DS200TCQCG1AJD.

• 3. Product Type: RST Overflow Analog I/O Expander Board.

• 4. Application: Speedtronic Mark V gas turbine control system.

• 5. Feature: Analog signal acquisition, LVDT excitation, signal conditioning.

• 6. Characteristic: Backplane bus communication, multi-channel analog expansion.

• 7. Communication: Proprietary Mark V rack backplane bus.

• 8. Package: Rack plug-in PCB board with pin connectors.

• 9. Mounting: Mark V control chassis rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Expand analog input channels to collect turbine temperature, pressure and displacement signals.

• 2. Supply excitation drive for LVDT sensors to monitor valve position and shaft displacement.

• 3. Complete signal amplification, filtering and scaling before sending data to main processor.

• 4. Detect signal overflow and abnormal state, send fault flag to turbine control logic.

• 5. Cooperate with other Mark V boards to realize closed-loop regulation of gas turbine.

Application Scenarios

• 1. Power plant Mark V gas turbine control cabinet spare replacement and maintenance.

• 2. Oil and gas station gas turbine unit control system renovation project.

• 3. Industrial combined cycle power generation turbine control spare inventory backup.

• 4. Old Speedtronic Mark V analog signal acquisition board renewal.

• 5. LM series gas turbine monitoring and control loop expansion upgrade.

FAQ

• 1. Q: What is GE DS200TCQCG1AJD?
      A: It is RST overflow analog I/O expander board dedicated for GE Speedtronic Mark V gas turbine control rack.

• 2. Q: What sensors can it support?
      A: It is mainly used for LVDT position sensors and other standard analog process sensors.

• 3. Q: Can it be hot swapped during turbine running?
      A: Cut off rack control power before replacement to avoid turbine control trip risk.
