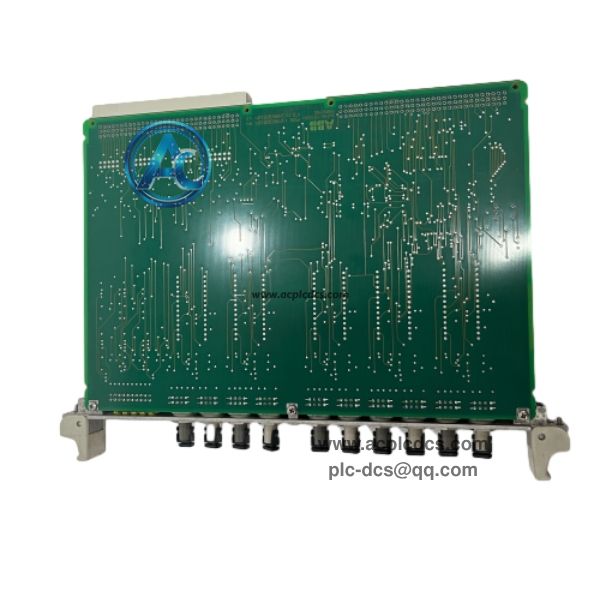

ABB 500SCM01 1MRB200059C 1MRB15004R0001 Communication Module

ABB 500SCM01 1MRB200059C 1MRB15004R0001 is a signal conditioning and communication module for ABB REB500 busbar protection system. It acts as a dedicated signal interface, handling high-speed synchronization pulse signals and serial communication data inside the protection rack for power system protection equipment.

This module features high isolation voltage and built-in signal monitoring function, supporting RS232/RS485 serial links and pulse signal processing. It adopts rack-mounted installation, widely used in power substation protection cabinet maintenance, spare replacement and protection system upgrade projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: 500SCM01, Part Number:1MRB200059C, 1MRB15004R0001.

• 3. Product Type: Signal Conditioning & Communication Module.

• 4. Product Series: REB500 Busbar Protection System.

• 5. Interface: RS232 / RS485 serial port, high-speed sync pulse input.

• 6. Isolation: 2.5kV AC electrical isolation.

• 7. Power: 5V / 24V DC supplied via backplane.

• 8. Diagnosis: Signal quality and hardware fault detection.

• 9. Mounting: Standard protection rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Receive and process high-speed synchronization pulse signals for busbar protection logic calculation.

• 2. Realize serial data transmission between protection core unit and external monitoring devices via RS232/RS485.

• 3. Complete signal isolation and conditioning to suppress interference in substation harsh electromagnetic environment.

• 4. Continuously monitor signal status, report abnormal signal interruption and module hardware faults.

• 5. Coordinate with other REB500 rack modules to realize reliable busbar differential protection function.

Application Scenarios

• 1. Power substation REB500 busbar protection cabinet spare replacement.

• 2. Power grid busbar differential protection system renovation and upgrade project.

• 3. Thermal power plant generator and busbar protection cabinet spare renewal.

• 4. Power industry protection device spare inventory backup.

• 5. Legacy ABB REB500 protection system aging signal module replacement project.

FAQ

• 1. Q: What is ABB 500SCM01 1MRB200059C 1MRB15004R0001?
      A: It is ABB REB500 busbar protection signal conditioning and serial communication module for substation protection racks.

• 2. Q: What is its core value in protection system?
      A: It provides isolated signal conversion and high-precision sync pulse acquisition to guarantee the accuracy of busbar differential protection.

• 3. Q: Can it be hot swapped?
      A: Not hot-swappable. De-energize the protection rack and implement safety isolation before replacement.
