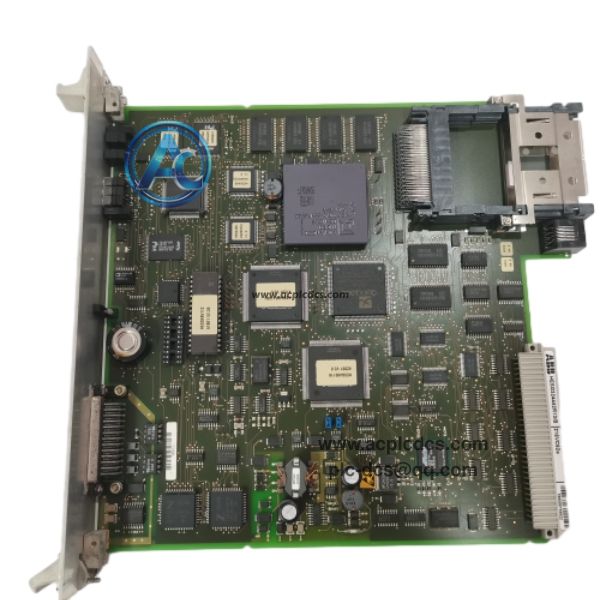

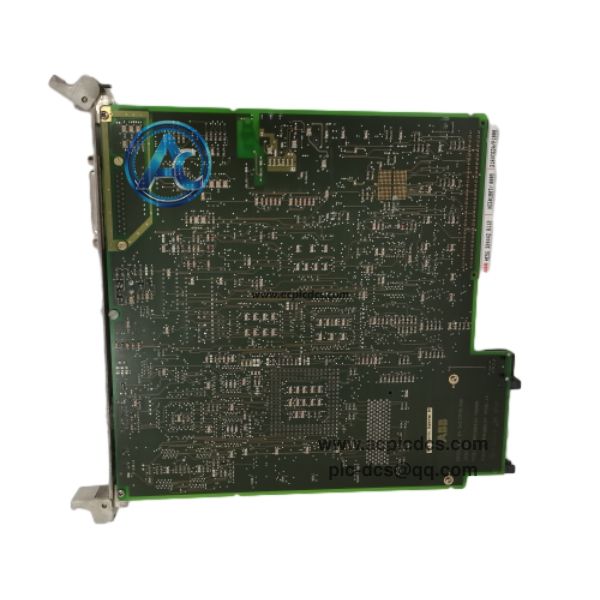

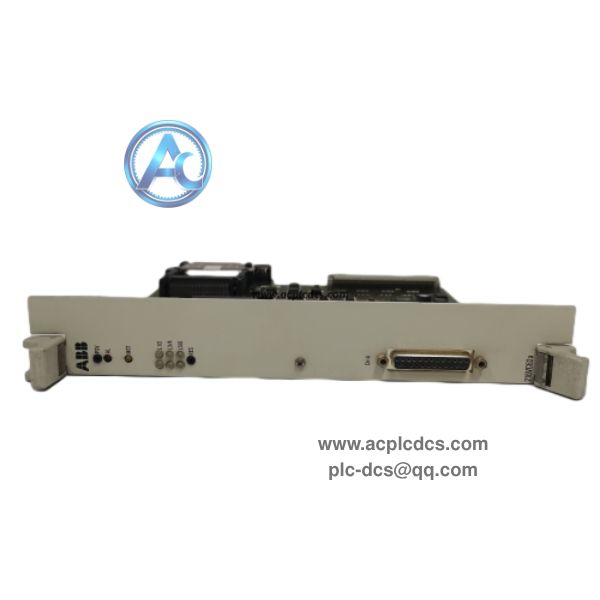

ABB 216VC62A HESG324442R13/B Processing Unit Board

ABB 216VC62A HESG324442R13/B is a core processing unit board for ABB Symphony / INFI90 DCS system. It executes control logic, processes I/O data and performs calculation tasks, acting as the central processing core for the controller rack in power and process plants.

This board is equipped with on-board memory and communication interface for backplane bus data exchange with I/O modules. It is widely used for thermal power plant DCS cabinet maintenance, spare parts replacement and distributed control system renovation projects.

Data Parameters

• 1. Brand: ABB (Bailey).

• 2. Model: 216VC62A, Part Number:HESG324442R13/B.

• 3. Product Type: Controller Processing Unit Board.

• 4. Product Series: Symphony / INFI90 DCS System.

• 5. Function: Run control logic and process I/O calculation.

• 6. Bus: Symphony rack backplane bus communication.

• 7. Storage: Onboard RAM and firmware memory.

• 8. Diagnosis: Hardware watchdog and fault self-test.

• 9. Mounting: Standard DCS rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Execute user-defined DCS control logic, closed-loop PID regulation and sequence control programs.

• 2. Read data from AI/DI pulse boards and send output commands to AO/DO I/O modules via backplane bus.

• 3. Complete real-time calculation of process variables, alarm judgement and event logging functions.

• 4. Built-in watchdog circuit continuously monitors CPU status to ensure safe operation once fault occurs.

• 5. Communicate with upper workstation for parameter configuration, data uploading and system debugging.

Application Scenarios

• 1. Thermal power plant Symphony DCS main controller cabinet spare replacement.

• 2. Petrochemical plant distributed control system logic control upgrade project.

• 3. Pulp & paper continuous production process control cabinet spare renewal.

• 4. Large industrial process plant DCS spare inventory backup.

• 5. Legacy ABB Symphony / INFI90 DCS aging processing unit board replacement project.

FAQ

• 1. Q: What is ABB 216VC62A HESG324442R13/B?
      A: It is ABB Symphony DCS processing unit board, the core CPU board to run control logic and handle all rack I/O data.

• 2. Q: What is its core responsibility?
      A: It performs PID closed-loop control, sequence logic, alarm processing and data exchange with all I/O modules.

• 3. Q: Can it be hot swapped?
      A: Not hot-swappable. System shutdown and safety isolation are required before replacement.
