Products Description

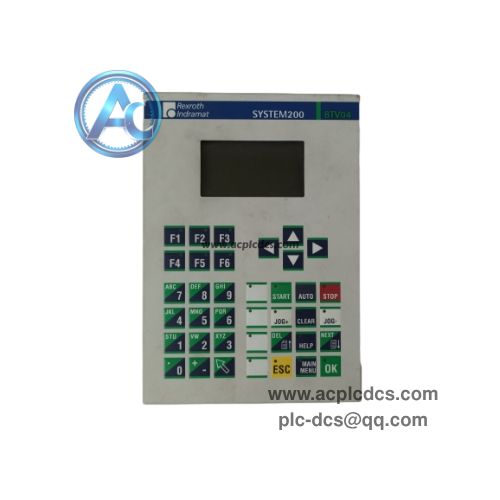

REXROTH BTV04.2GN-FW SYSTEM200 Miniature Operator Control Panel in stock
REXROTH BTV04.2GN-FW is a compact operator HMI panel of Indramat SYSTEM200 BTV04 series. It is equipped with 128×64 monochrome graphic LCD display and 38-key membrane keypad, serving as local operation and monitoring interface for Rexroth drive and motion control systems.
This HMI panel supports RS485 and RS232 dual communication ports, built-in isolated digital I/O. Front panel reaches IP65 protection grade. It is a discontinued legacy spare part, widely used for maintenance replacement of old machine tool, printing and packaging automation equipment.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | REXROTH (Indramat) |
| 2 | Model | BTV04.2GN-FW |
| 3 | Product Type | Miniature Operator HMI Control Panel |
| 4 | Display | 128×64 monochrome graphic LCD |
| 5 | Communication | RS485 bus, RS232 interface |
| 6 | Digital I/O | 10 isolated DI, 11 isolated DO, 24VDC |
| 7 | Protection | Front IP65, housing IP20 |
| 8 | Power Supply | 24VDC, max 400mA |
| 9 | Status | Discontinued legacy spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Local manual operation and parameter setting for Rexroth SYSTEM200 motion control system |
| 2 | Real-time display of drive status, alarm codes and process data on graphic LCD screen |
| 3 | Dual serial communication ports for data exchange with servo controller and upper system |
| 4 | Built-in isolated digital input and output for direct interlock signal control |
| 5 | 38 membrane keys including 7 programmable function keys for customized machine operation |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Rexroth Indramat SYSTEM200 servo motion control platform |
| 2 | Old CNC machine tools, printing and packaging production lines |
| 3 | Material handling and metal forming automation equipment |
| 4 | Legacy industrial equipment HMI spare replacement and maintenance retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is REXROTH BTV04.2GN-FW? A: It is a miniature operator HMI panel for Rexroth Indramat SYSTEM200, used for local operation and status monitoring of servo motion systems. |
| 2 | Q: What communication interfaces does it have? A: It has RS485 bus interface and RS232 serial port for connecting to Rexroth servo controllers. |
| 3 | Q: What is the front panel protection rating? A: The front panel is IP65, suitable for installation on machine front for on-site operation. |
