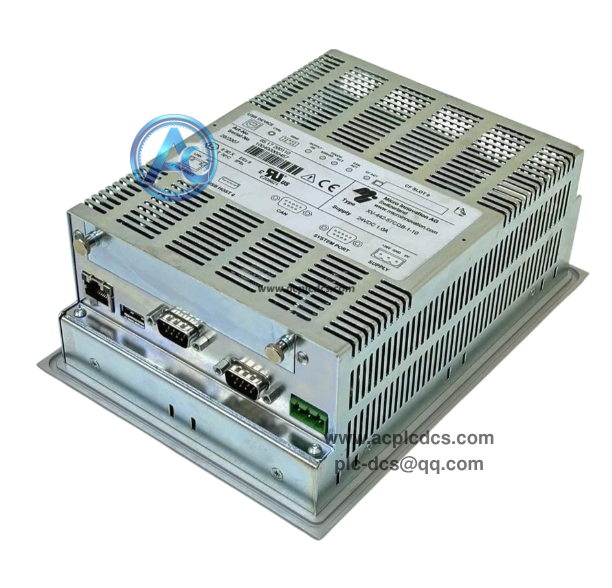

EATON XV-442-57CQB-1-10 XV400 Series HMI Touch Panel in stock

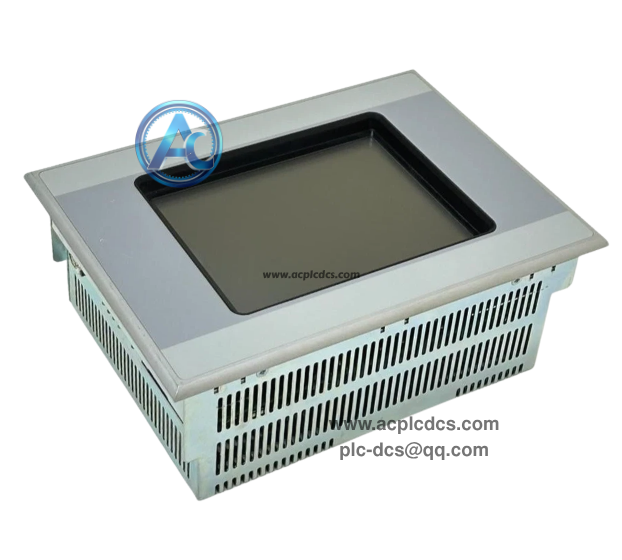

EATON XV-442-57CQB-1-10 is a 5.7-inch color resistive touch HMI panel from Eaton Moeller XV400 series. It is designed for industrial machine visualization, parameter setting and real-time data monitoring, supporting multiple communication protocols to connect with PLC and servo controllers.

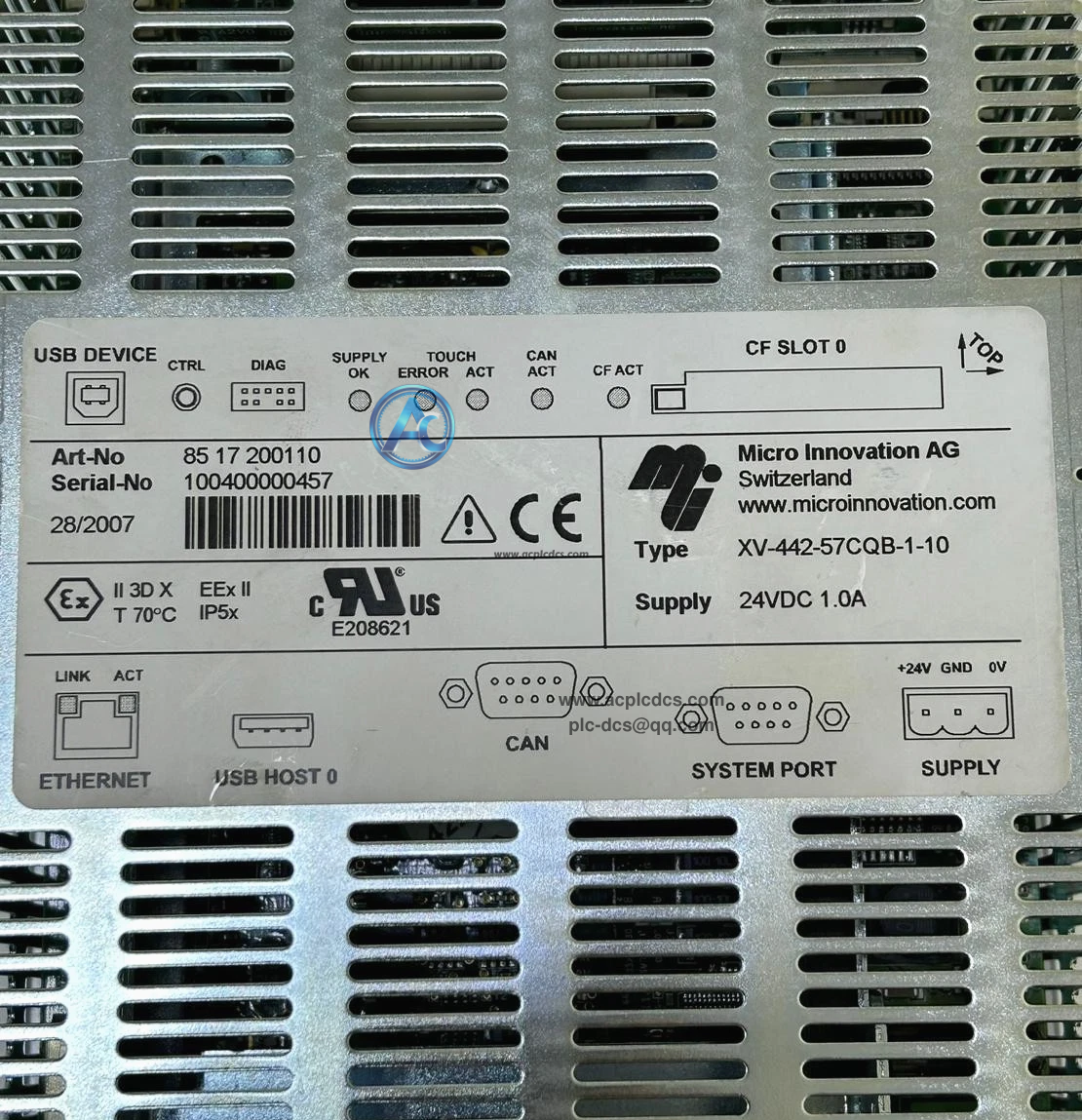

This HMI features front IP65 protection for panel installation, equipped with Ethernet, RS232 and CAN interfaces. It is a discontinued legacy spare part, widely used for maintenance replacement of old packaging, printing and metalworking automation equipment.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | EATON (Moeller) |
| 2 | Model | XV-442-57CQB-1-10 |
| 3 | Module Type | Industrial HMI Touch Panel |
| 4 | Display | 5.7" STN Color, resistive touchscreen |
| 5 | Power Supply | 24VDC |
| 6 | Communication Ports | Ethernet, RS232, CAN bus |
| 7 | Protection Grade | Front IP65, rear IP20 |
| 8 | Mounting | Panel cutout mounting |
| 9 | Status | Discontinued legacy spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Real-time display of machine operating status, process values and alarm messages |
| 2 | On-site parameter modification, recipe management and manual operation control |
| 3 | Multi-channel communication to exchange data with PLC, drives and field controllers |
| 4 | Resistive touch screen supports glove operation for harsh industrial environment |
| 5 | Store historical data, event logs and fault records for equipment troubleshooting |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Eaton XV400 series HMI automation control system |
| 2 | Packaging machinery, printing equipment and metal forming machine tools |
| 3 | Conveyor, material handling and general factory automation lines |
| 4 | Legacy industrial HMI spare replacement and equipment retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is EATON XV-442-57CQB-1-10? A: It is Eaton Moeller XV400 series 5.7 inch color HMI touch panel for industrial machine monitoring and operation. |
| 2 | Q: What communication interfaces does it have? A: It is equipped with Ethernet, RS232 serial port and CAN bus interface for connecting to automation controllers. |
| 3 | Q: What is the front protection rating? A: The front panel reaches IP65 after correct panel installation, suitable for workshop dusty and splash environment. |
