ABB PPD517A3011 3BHE041576R3011 Control Module in stock

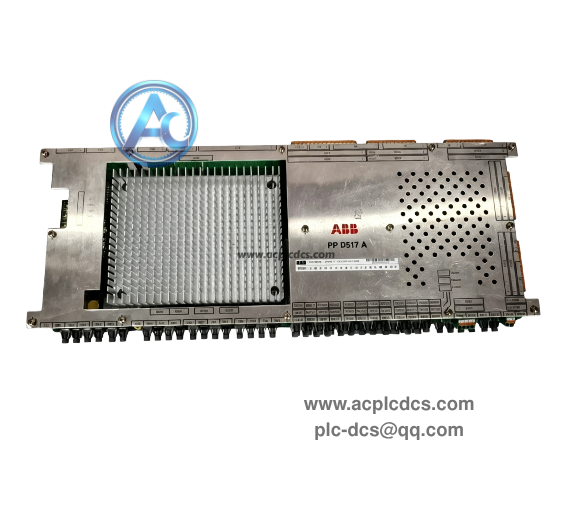

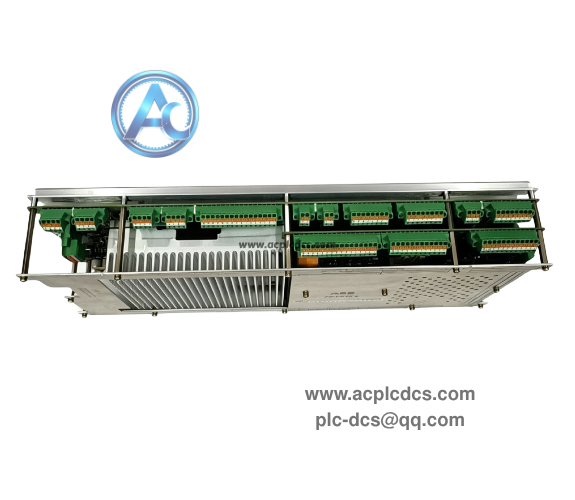

ABB PPD517A3011 3BHE041576R3011 is a high-performance digital excitation control module for ABB Unitrol 6000 generator excitation systems. It adopts high-speed DSP processor to run excitation regulation algorithms, realizing real-time generator voltage and reactive power closed-loop control.

This module supports DDCS fiber communication and integrated hardware protection functions for power plant synchronous generators. It is widely used as spare replacement part for hydroelectric and thermal power excitation cabinets, ensuring stable grid connection and generator operation.

3BHE043576R0011.pdf

Main Specifications

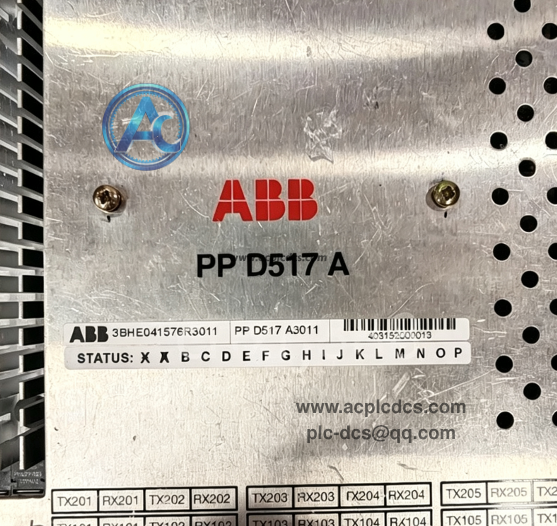

1. Brand: ABB; Model: PPD517A3011; Part No:3BHE041576R3011; Series: Unitrol 6000

2. Type: Digital Excitation Control Processor Module

3. Processor: High-speed DSP; Communication: DDCS optical fiber interface

4. Power Supply: 24VDC; Mounting: Standard subrack installation

5. Operating Temp: -20℃ ~ +70℃; Industrial EMC protection; IP20

6. Application: Generator excitation control for thermal & hydro power plants

Core Functions

1. Execute excitation control algorithm to regulate synchronous generator terminal voltage and reactive power.

2. Generate pulse signals for power unit, adjust excitation current dynamically according to grid condition.

3. High-speed DDCS fiber communication to exchange data with other modules in Unitrol system.

4. Built-in multi-protection: overvoltage, overcurrent, loss of excitation and out-of-step protection.

5. Real-time data recording and fault event logging for troubleshooting and system analysis.

6. Modular subrack design, convenient maintenance and faulty module replacement in excitation cabinet.

Application Scenarios

1. Unitrol 6000 generator excitation control cabinets for thermal and hydropower plants.

2. Synchronous generator voltage regulation and grid stability control systems.

3. Maintenance and faulty module replacement of existing ABB Unitrol excitation systems.

4. Power plant generator set renovation and excitation system upgrade projects.

5. Power station spare parts inventory for electrical overhaul and maintenance teams.

6. STATCOM and reactive power compensation control systems in power grid.

FAQ

1. Q: What is ABB PPD517A3011 3BHE041576R3011?
   A: It is a digital excitation control processor module for ABB Unitrol 6000 generator excitation systems.

2. Q: What communication interface does it adopt?
   A: It uses DDCS optical fiber communication for high-speed data transmission inside the excitation cabinet.

3. Q: Where is this module mainly applied?
   A: It is mainly used in thermal and hydropower plants for synchronous generator excitation regulation.
