Products Description
GE IS215UCVEH2AE UCM VME CPU Controller in stock

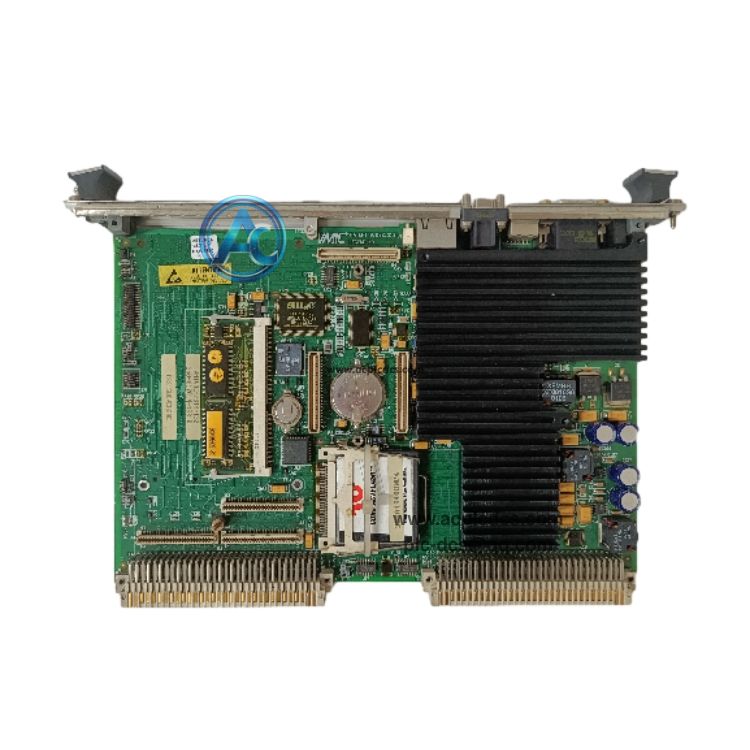

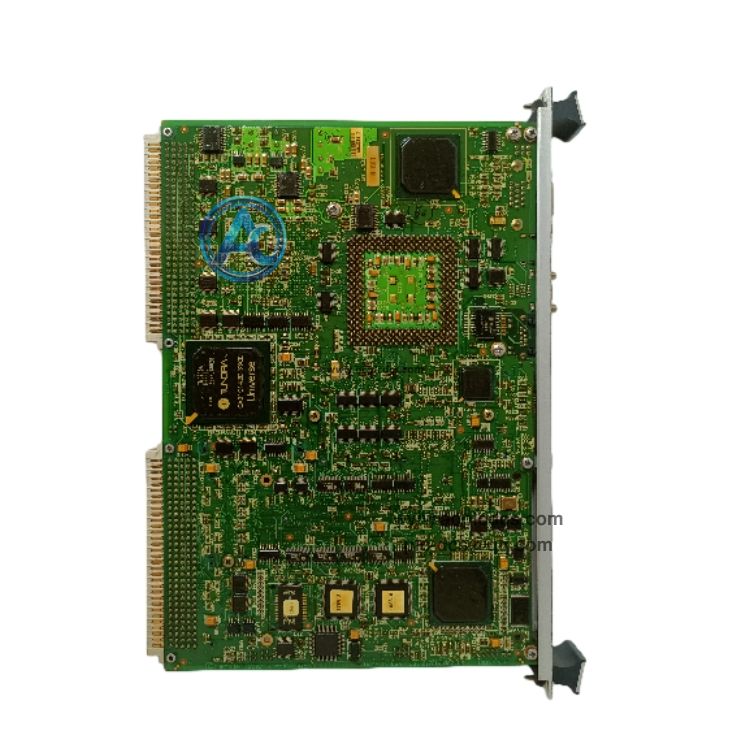

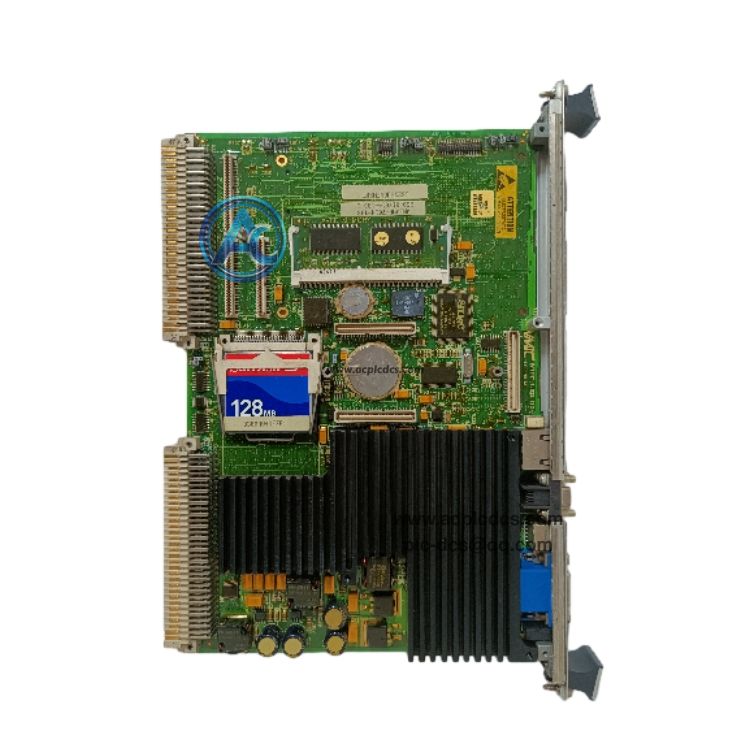

GE IS215UCVEH2AE is a single-slot VME UCM (Universal Control Module) CPU board for GE Mark VI Speedtronic turbine control system, also compatible with EX2100 excitation control system. It acts as the core processor, executing real-time turbine control algorithms, collecting field signals and coordinating data communication between all rack I/O modules.
This board is equipped with 300MHz Intel Celeron processor, QNX real-time operating system, Ethernet and dual serial ports. It supports redundant configuration and comprehensive hardware self-diagnosis with status LED indicators. It is discontinued legacy turbine control hardware, supplied as surplus or refurbished spare parts for power plant system maintenance and retrofit.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | IS215UCVEH2AE |
| 3 | Module Type | UCM VME CPU Controller Board |
| 4 | Compatible System | Mark VI Speedtronic Turbine Control, EX2100 Excitation System |
| 5 | Processor & OS | 300MHz Intel Celeron, QNX real-time OS |
| 6 | Interfaces | 10/100Mbps Ethernet, dual serial COM ports, VME bus |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Run real-time gas/steam turbine control and protection logic as the rack main controller |
| 2 | Communicate with VME I/O modules, HMI and engineering station via Ethernet and serial ports |
| 3 | Support redundant control configuration to improve system reliability for power generation units |
| 4 | Continuous hardware self-diagnosis, fault reporting via front panel LED indicators |
| 5 | Process speed, temperature, pressure signals and execute turbine trip protection commands |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant gas turbine and steam turbine Mark VI control cabinet |
| 2 | Combined cycle power plant EX2100 generator excitation control system |
| 3 | Oil & gas industry power generation turbine safety monitoring and protection |
| 4 | Large rotating machinery critical control and interlock protection system |
| 5 | Legacy Mark VI turbine control system spare replacement and retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE IS215UCVEH2AE? A:It is UCM VME CPU controller board for Mark VI Speedtronic turbine control system. It uses QNX real-time OS to execute turbine control logic, manage VME backplane I/O data and network communication for power generation units. |
| 2 | Q:What is the difference between IS215UCVEH2AE and IS215UCVEH2AB? A:Both are Mark VI UCM CPU boards. The suffix code indicates hardware revision and firmware variant, they share the same core function while having slight differences in component version and firmware. |
| 3 | Q:Is IS215UCVEH2AE still in production? A:GE Mark VI series IS215UCVEH2AE has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy turbine control systems. |
