Products Description

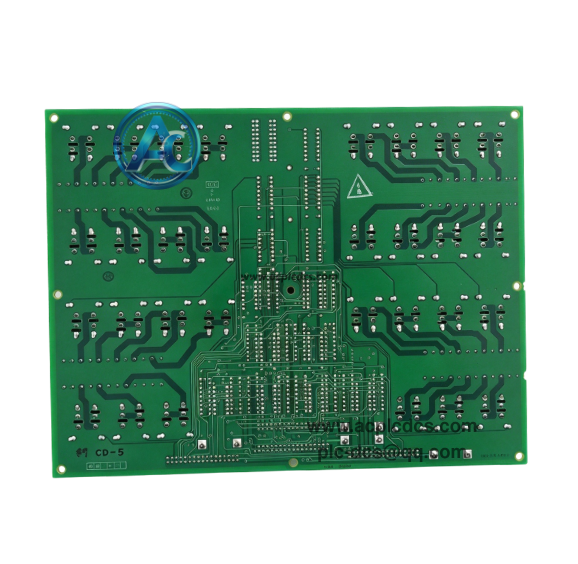

GE DS200TCRAG1ACC Relay Output Board in stock
GE DS200TCRAG1ACC is a relay output board for GE Mark V Speedtronic gas and steam turbine control system. It receives control logic commands from the main turbine controller and drives 30 plug-in relays to output dry contact signals for turbine trip, valve control and auxiliary equipment actuation.
This board is equipped with 30 replaceable plug-in relays, 4×34-pin and 4×12-pin multi-pin connectors. It provides electrical isolation between the control rack and field loads, with onboard LED indicators for relay channel status and fault diagnosis. It is an obsolete legacy PCB, mainly used as surplus or refurbished spare parts for power plant Mark V turbine control cabinet maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | DS200TCRAG1ACC |
| 3 | Module Type | Relay Output Board |
| 4 | Compatible System | Mark V Speedtronic Gas / Steam Turbine Control System |
| 5 | Relay | 30 plug-in SPST relays, 0.5A per channel |
| 6 | Connectors | 4 × 34-pin, 4 × 12-pin ribbon connectors |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Receive logic commands from Mark V main controller and drive built-in plug-in relays |
| 2 | Output dry contact signals to control solenoid valves, auxiliary relays and turbine trip circuits |
| 3 | Electrical isolation between rack control circuits and field external loads |
| 4 | Onboard LED indicators to display relay working status and channel fault information |
| 5 | Support expansion connection with external termination boards for extra output capacity |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant Mark V gas and steam turbine control cabinet relay output control |
| 2 | Combined cycle power unit turbine emergency trip and valve actuation control |
| 3 | Oil & gas power generation turbine auxiliary equipment sequence logic control |
| 4 | Heavy industry large turbine safety interlock and alarm relay output system |
| 5 | Legacy Mark V turbine control system spare parts replacement and retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE DS200TCRAG1ACC? A:It is relay output board for Mark V Speedtronic turbine control system, equipped with 30 plug-in relays to output dry contact signals for turbine trip and field actuator control. |
| 2 | Q:Can individual relays be replaced separately? A:Yes, the relays are pluggable, technicians can replace single failed relay without swapping the whole board. |
| 3 | Q:Is this board still in production? A:No, GE discontinued production, only surplus and refurbished spare parts available for legacy turbine system maintenance. |
