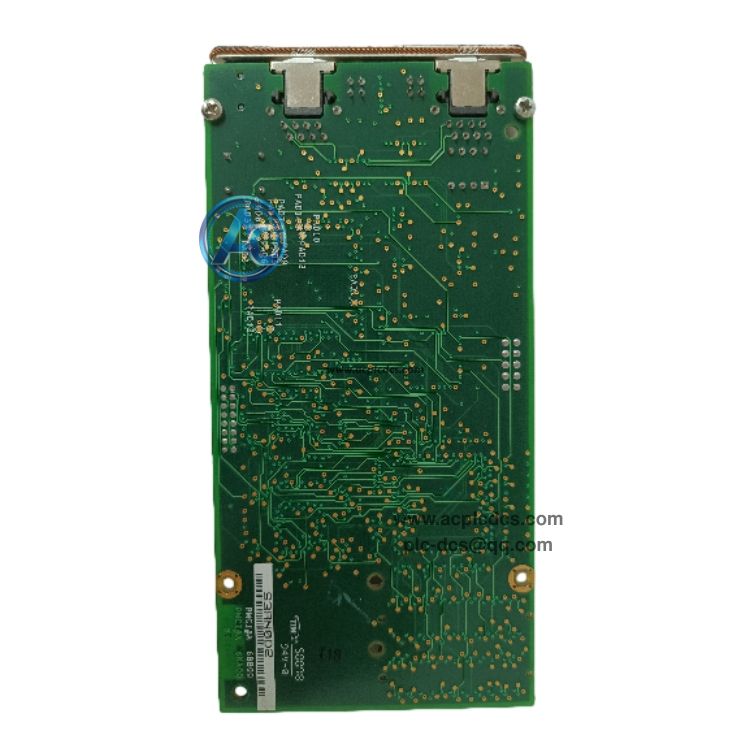

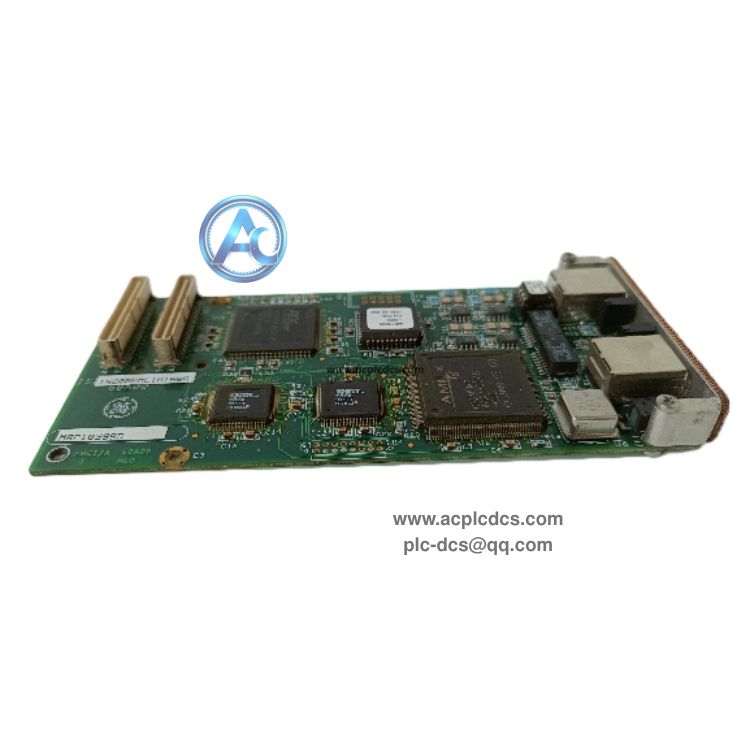

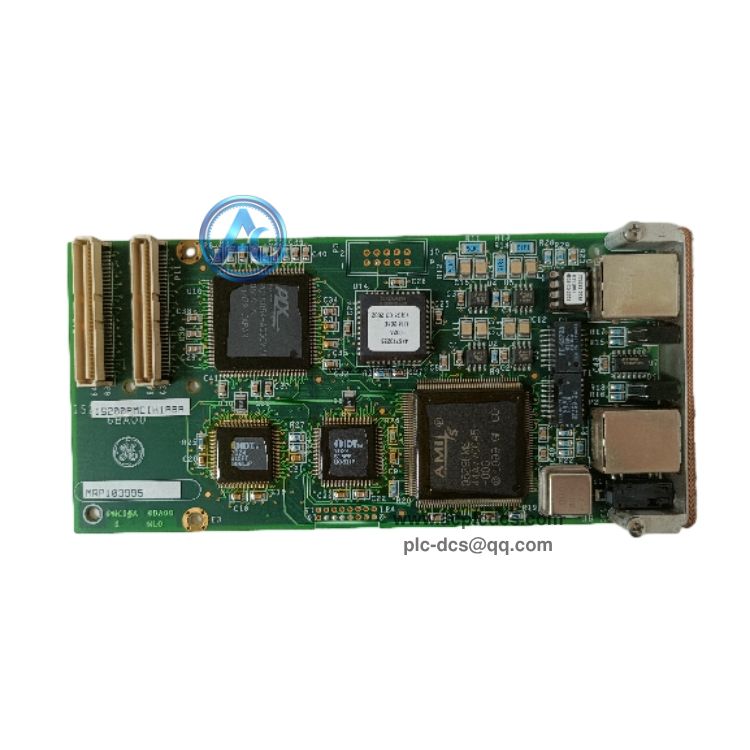

GE IS200PMCIH1ABA PCI Communication Interface Card in stock
GE IS200PMCIH1ABA is a high-speed PCI communication interface board for GE Mark VIe turbine control system. It acts as a data bridge between the system controller, I/O modules, operator stations and engineering workstations, handling high-volume real-time data transmission and command exchange for gas and steam turbine control.
This board adopts dual Ethernet ports for redundant network communication, supports TurbineNet and Profibus DP protocols. It is a 6U VME form factor board powered by backplane +5VDC. It is discontinued legacy turbine control hardware, supplied as surplus or refurbished spare parts for existing Mark VIe system maintenance and retrofit.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | IS200PMCIH1ABA |
| 3 | Module Type | PCI Communication Interface Card |
| 4 | Compatible System | Mark VIe Gas / Steam Turbine Control System |
| 5 | Communication | Dual Ethernet, TurbineNet, Profibus DP |
| 6 | Power & Form Factor | +5VDC backplane power, 6U VME standard |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | High-speed data exchange between Mark VIe controller, I/O modules and upper HMI workstations |
| 2 | Dual redundant Ethernet network interface to improve communication reliability for turbine control |
| 3 | Support TurbineNet proprietary protocol and Profibus DP for field device communication |
| 4 | Real-time control command transmission and process value upload for turbine protection |
| 5 | Built-in hardware self-diagnosis to detect communication link and circuit faults |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant gas turbine and steam turbine Mark VIe control cabinet |
| 2 | Combined cycle power generation unit turbine monitoring and protection system |
| 3 | Oil & gas industry power generation turbine control and safety interlock |
| 4 | Heavy industry critical rotating machinery control and data acquisition system |
| 5 | Existing Mark VIe turbine control system spare replacement and retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE IS200PMCIH1ABA? A:It is PCI communication interface card for GE Mark VIe turbine control system. It provides dual Ethernet communication ports, realizes high speed data interaction between turbine controller, I/O and operator stations, supporting TurbineNet and Profibus DP. |
| 2 | Q:What is the main advantage of dual Ethernet ports? A:Dual redundant Ethernet design. If one communication link fails, the other channel automatically takes over, avoiding turbine control system communication interruption and improving system safety and availability. |
| 3 | Q:Is IS200PMCIH1ABA still in production? A:GE Mark VIe series IS200PMCIH1ABA has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy turbine control systems. |
