Products Description

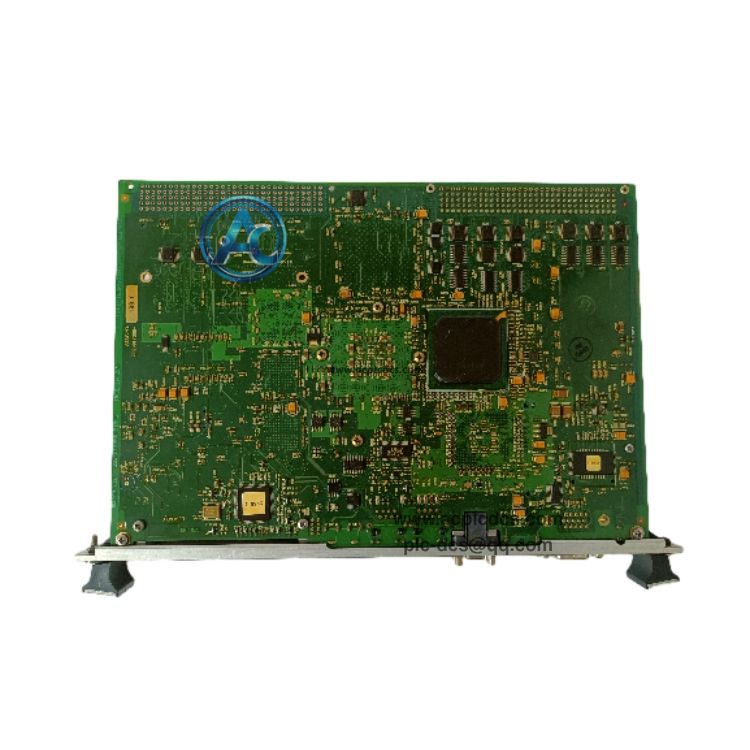

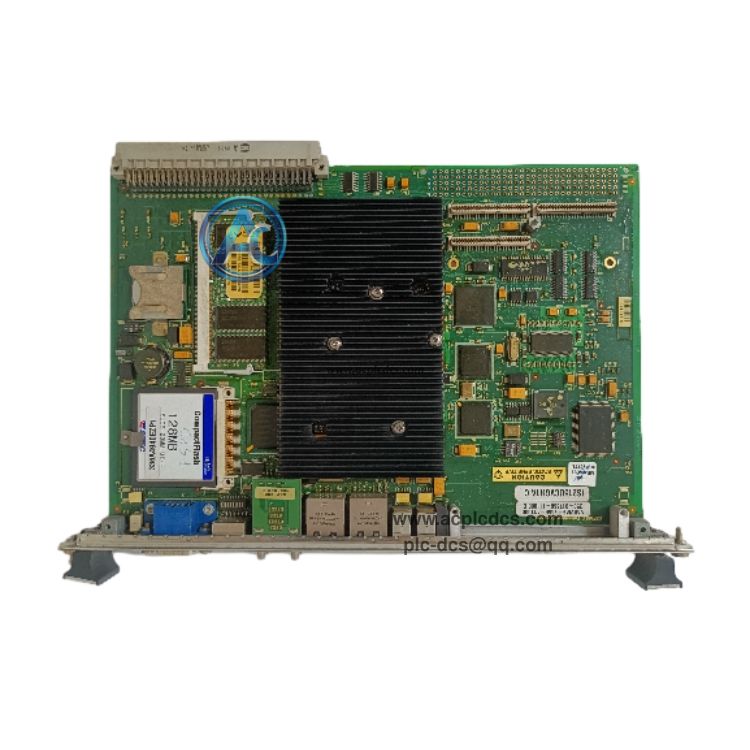

GE IS215UCVGH1A UCVG VME Universal Control Module in stock
GE IS215UCVGH1A is a 6U VME universal control module (UCVG) designed for GE Speedtronic Mark VI turbine control platform. It serves as the rack core CPU, powered by Intel 650MHz ultra-low voltage Celeron processor, executing real-time gas/steam turbine control algorithms, processing field measurement signals and coordinating all I/O modules over VME backplane bus.
This board integrates dual 10/100Mbps Ethernet, dual serial COM ports, SVGA video and keyboard/mouse interface, with 128MB SDRAM and 128MB flash memory. It runs QNX real-time operating system and supports ToolboxST configuration and diagnostic software. It is discontinued legacy hardware, supplied as surplus or refurbished spare parts for power plant Mark VI system maintenance and retrofit.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | IS215UCVGH1A |
| 3 | Module Type | UCVG VME Universal Control Module (CPU) |
| 4 | Compatible System | Speedtronic Mark VI Turbine Control System |
| 5 | Processor & Memory | 650MHz Intel Celeron, 128MB SDRAM,128MB Flash |
| 6 | Interfaces | Dual 10/100Mbps Ethernet, dual COM, SVGA, PS/2 KB/Mouse |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Execute real-time turbine control and protection logic as main rack controller for Mark VI system |
| 2 | Communicate with VME I/O modules, HMI and engineering station via Ethernet and serial ports |
| 3 | Support ToolboxST software for parameter configuration, online monitoring and fault diagnosis |
| 4 | Comprehensive onboard self-diagnosis with front panel LED status indicators for fault alert |
| 5 | Process speed, pressure, temperature signals and trigger turbine trip protection commands |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant gas turbine and steam turbine Mark VI control cabinets |
| 2 | Combined cycle power generation unit turbine monitoring and protection |
| 3 | Generator excitation control system and critical rotating machinery protection |
| 4 | Oil & gas power generation plant turbine safety interlock control system |
| 5 | Legacy Mark VI turbine control system spare replacement and retrofit project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE IS215UCVGH1A? A:It is UCVG VME universal control CPU board for GE Mark VI Speedtronic turbine control system. It runs QNX real-time OS, handles turbine control logic, VME I/O data collection and network communication for power plant turbine protection. |
| 2 | Q:What is the difference between IS215UCVGH1A and IS215UCVEH2AE? A:Both are Mark VI VME CPU controllers. IS215UCVGH1A uses faster 650MHz Celeron processor, while IS215UCVEH2AE adopts 300MHz Celeron chip, with different onboard memory and peripheral interfaces. |
| 3 | Q:Is IS215UCVGH1A still in production? A:GE Mark VI series IS215UCVGH1A has been discontinued. Available stock is surplus or refurbished spare parts for maintenance of legacy turbine control systems. |
