Products Description

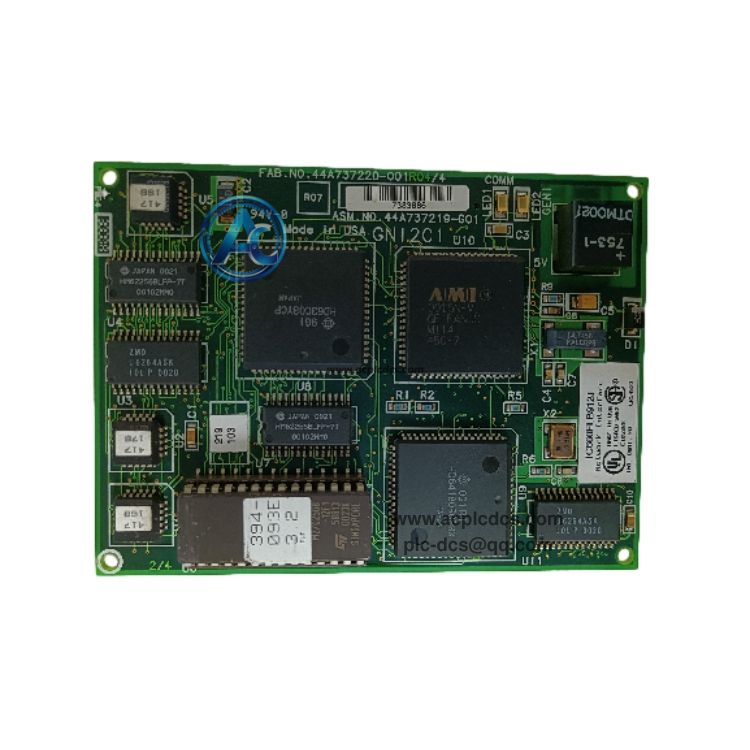

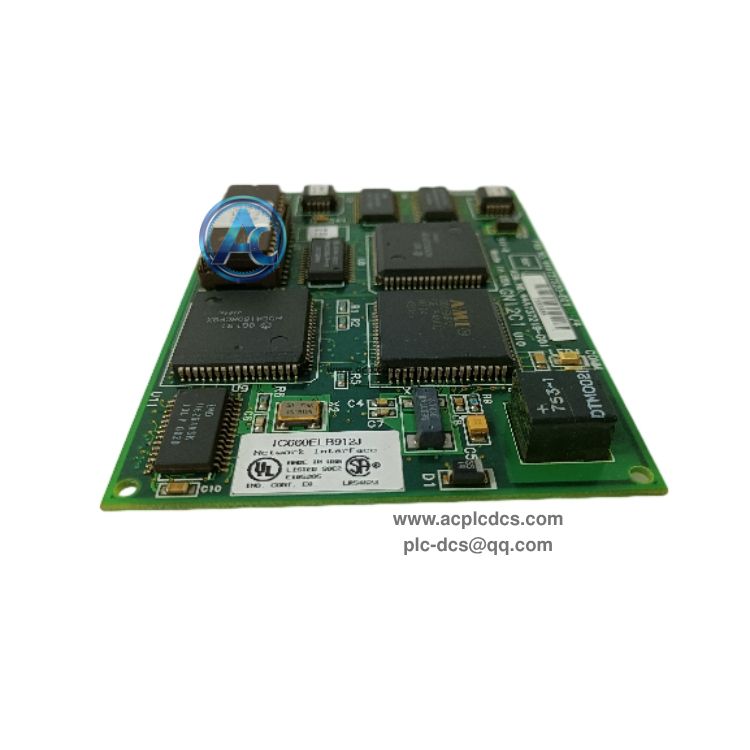

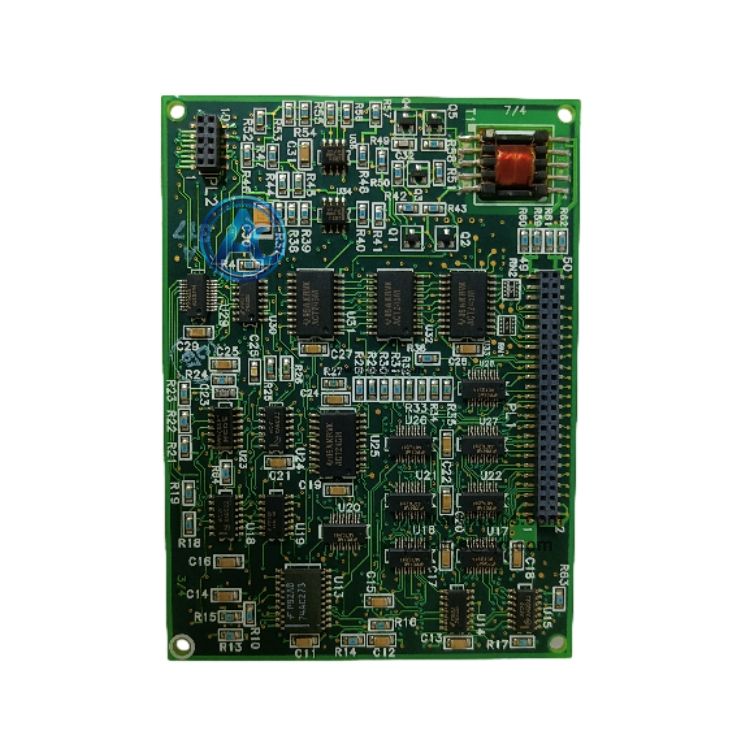

GE IC660ELB912J Genius Network Interface Module
GE IC660ELB912J is a Genius network interface module (NIM) for GE Fanuc Genius distributed I/O system. It acts as the communication gateway between host PLC and remote Genius I/O racks, managing Genius bus data transmission and offloading communication workload from the main controller.
This module adopts dual-processor architecture with dual-port RAM for high-speed data exchange. It is an obsolete legacy spare, commonly used for maintenance and replacement of power, petrochemical and manufacturing Genius distributed control systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE Fanuc (Emerson legacy) |
| 2 | Model | IC660ELB912J |
| 3 | Module Type | Genius Network Interface Module (NIM) |
| 4 | System Platform | GE Genius Distributed I/O System |
| 5 | Bus Protocol | Genius fieldbus, 5Mbps transmission speed |
| 6 | Architecture | Dual processor, 16KB dual-port RAM |
| 7 | Max Nodes | Support up to 30 Genius bus devices |
| 8 | Operating Temperature | -20℃ ~ +55℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Establish high-speed Genius bus communication between host controller and remote I/O racks |
| 2 | Offload bus communication processing to reduce the load of main PLC CPU |
| 3 | Support global data exchange, datagram and directed control data messages |
| 4 | Bus initialization, node management and continuous communication fault detection |
| 5 | Built-in status LED indicators for quick network diagnosis and troubleshooting |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant GE Genius distributed I/O control cabinet |
| 2 | Petrochemical, oil & gas process automation control system |
| 3 | Heavy industry production line remote distributed I/O network |
| 4 | Connect Series 90-30 PLC to distributed Genius I/O modules |
| 5 | Legacy GE Genius automation system spare replacement and maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE IC660ELB912J? A:It is a Genius network interface module for GE Fanuc Genius I/O system. It serves as the communication bridge between host PLC and remote Genius I/O racks, responsible for Genius bus management and real-time I/O data exchange. |
| 2 | Q:What is the difference between IC660ELB912J and IC660ELB912? A:IC660ELB912J is the revised J version of IC660ELB912, with component and firmware optimization, fully compatible with the same Genius bus system and rack installation. |
| 3 | Q:How many devices can it connect on Genius bus? A:This NIM module supports up to 30 Genius bus nodes, realizing multi-point distributed I/O collection and control over the Genius fieldbus. |
