Products Description

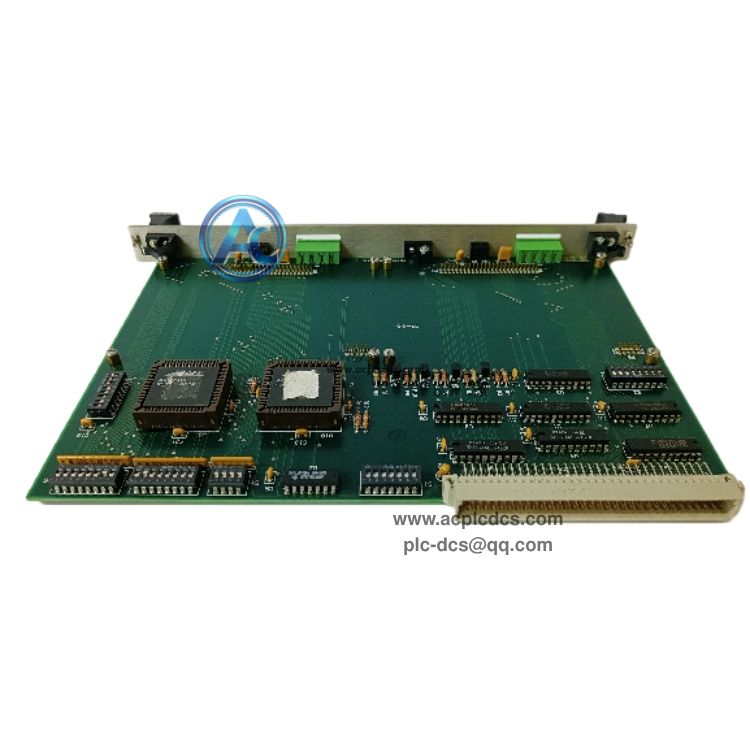

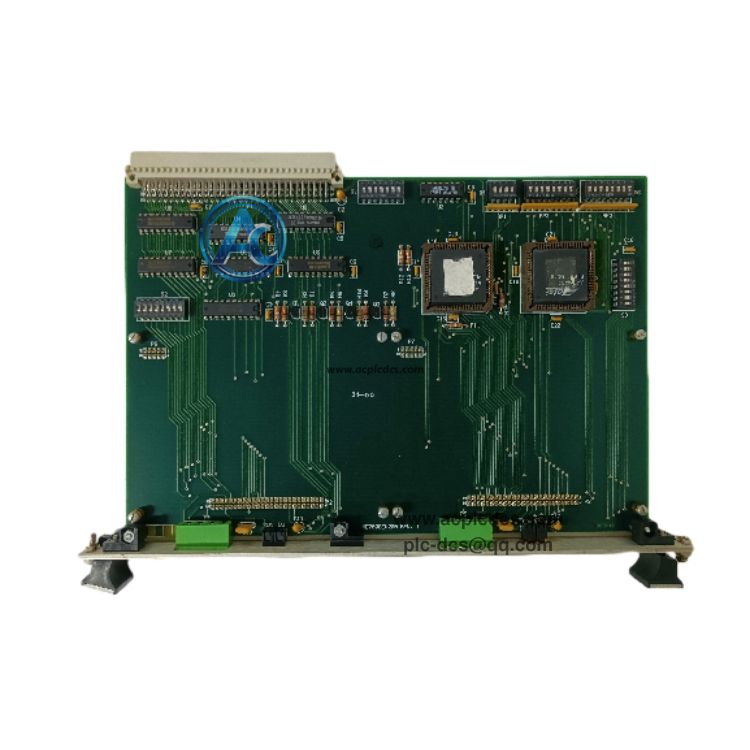

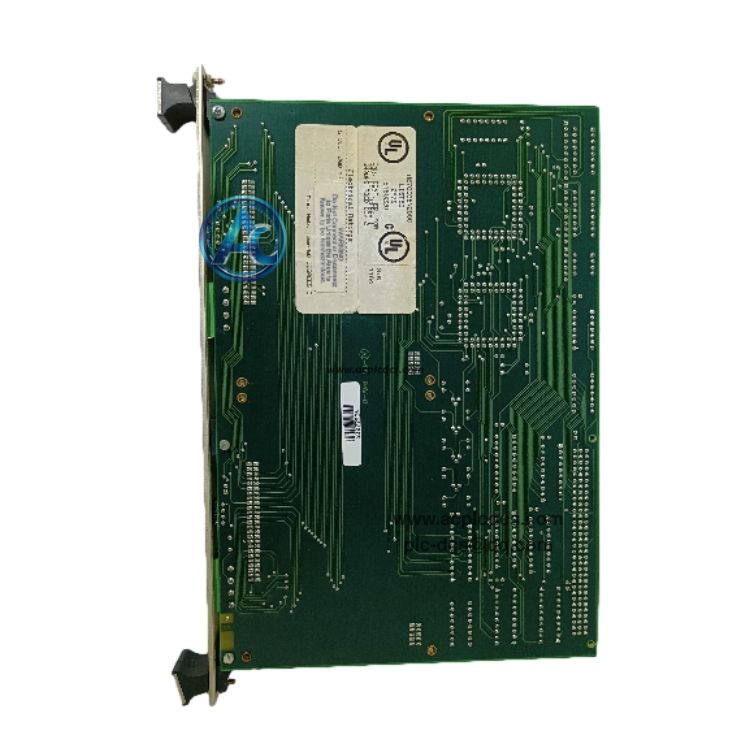

GE HE700GEN200C Dual Channel Genius Bus Interface Module in stock
GE HE700GEN200C is a dual-channel redundant Genius bus interface module for GE Genius distributed I/O system. It acts as a high-reliability communication bridge between VME host controller and remote Genius I/O racks, transmitting analog and digital process data over two independent Genius bus links.
This VME bus module supports redundant communication path switching, dip-switch configuration and built-in comprehensive fault diagnosis. It is an obsolete spare part, widely used for power plant and petrochemical Genius DCS rack maintenance and high-availability system retrofit.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE General Electric |
| 2 | Model | HE700GEN200C |
| 3 | Module Type | Dual Channel Genius Bus Interface Module |
| 4 | System Platform | GE Genius Distributed I/O System |
| 5 | Bus Type | Genius fieldbus, VME backplane bus |
| 6 | Channel | Dual redundant communication channels |
| 7 | Configuration | Dip switch setting |
| 8 | Operating Temperature | -20℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Two independent Genius bus channels for redundant communication transmission |
| 2 | Automatic path switchover if one Genius communication channel fails |
| 3 | Exchange real-time I/O data and control commands between VME CPU and remote I/O racks |
| 4 | Continuous bus monitoring, fault logging and LED status indication |
| 5 | Isolation protection to suppress electromagnetic interference on fieldbus lines |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant high-availability Genius distributed I/O control cabinet |
| 2 | Petrochemical and oil & gas critical process redundant control system |
| 3 | Heavy industry production line remote I/O redundant communication network |
| 4 | VME controller connecting to remote Genius analog and digital I/O racks |
| 5 | Legacy GE Genius I/O system spare replacement and maintenance project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE HE700GEN200C? A:It is dual-channel redundant Genius bus interface module for GE Genius distributed I/O system. It provides two independent communication links to connect VME controller with remote Genius I/O racks for high availability control. |
| 2 | Q:What is the difference between HE700GEN200C and HE700GEN100C? A:HE700GEN200C adopts dual redundant Genius channels for automatic failover, while HE700GEN100C is single channel without redundant backup, used for non-critical control loops. |
| 3 | Q:Can this module work with existing Genius I/O modules? A:Yes, it is fully compatible with the whole series of Genius I/O modules, and can be installed in the same VME rack together with HE700GEN100C for system upgrade. |
