Products Description

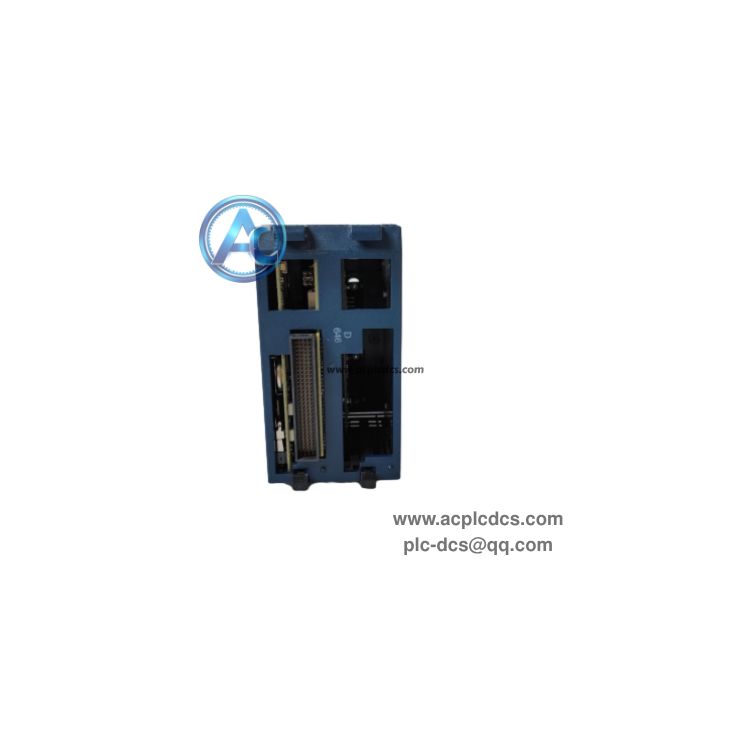

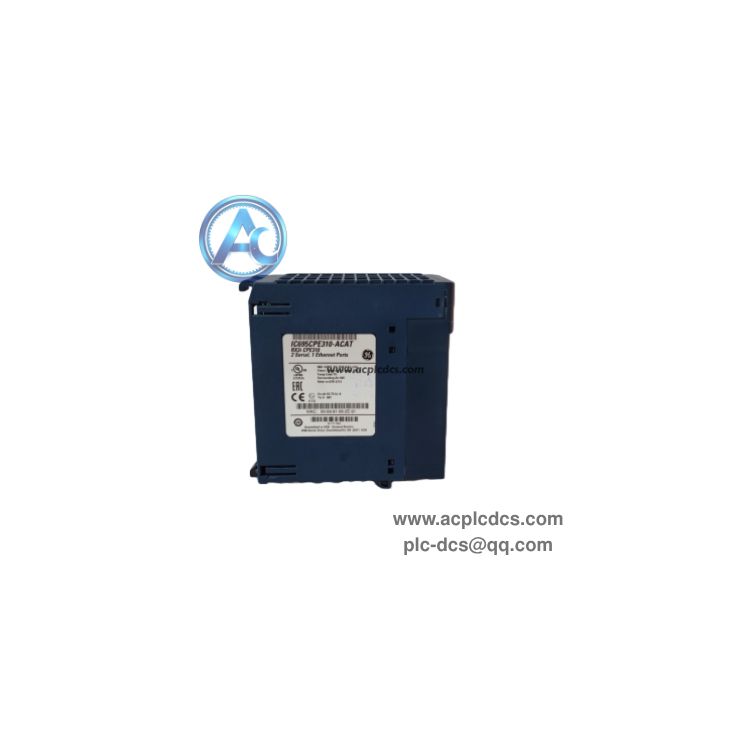

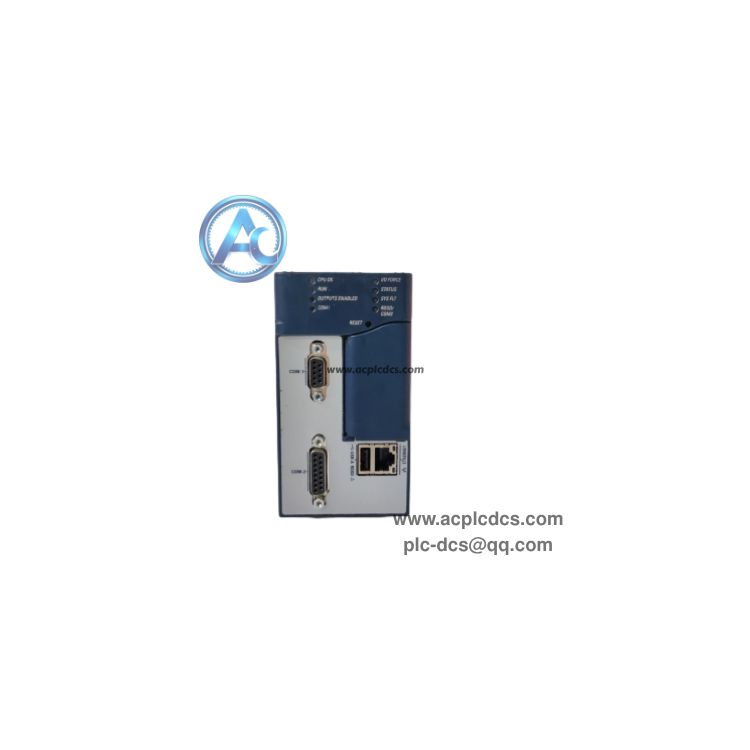

GE IC695CPE310 PACSystems RX3i CPU Controller Module
GE IC695CPE310 is a mid-range CPU controller for GE PACSystems RX3i PLC platform. It is the core processing unit responsible for executing user control logic, processing I/O signals and communicating with HMI, SCADA and field devices, widely used in factory automation and process control.
This CPU features 1.1GHz processor, embedded Ethernet, dual serial ports and USB master port, supporting battery-less memory retention and Proficy Machine Edition programming. It supports up to 8 local racks and rich industrial protocols for flexible system expansion.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | GE Fanuc / Emerson |
| 2 | Model | IC695CPE310 |
| 3 | Module Type | RX3i CPU Controller |
| 4 | System Platform | PACSystems RX3i |
| 5 | Processor | 1.1GHz Atom processor |
| 6 | Memory | 10MB user memory, 10MB non-volatile flash |
| 7 | Interfaces | 1×10/100M Ethernet, RS232, RS485, USB master port |
| 8 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Execute ladder, structured text, FBD and C programming control logic |
| 2 | Built-in Ethernet supports Modbus TCP, SRTP for HMI/SCADA communication |
| 3 | RS232/RS485 serial ports support SNP and Modbus master/slave protocol |
| 4 | USB port for program upload/download without programming cable |
| 5 | Battery-less data retention, system self-diagnosis and fault alarm |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Manufacturing factory production line automation control cabinet |
| 2 | Water treatment, power plant auxiliary process control system |
| 3 | Packaging, material handling and motion control applications |
| 4 | Connect to RX3i I/O modules, HMI and SCADA master station |
| 5 | RX3i PACSystems spare parts replacement and system upgrade |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is GE IC695CPE310? A:It is mid-range CPU controller for PACSystems RX3i PLC. It runs user control logic, collects I/O data and communicates with HMI and SCADA for discrete and process automation projects. |
| 2 | Q:What software is used to program this CPU? A:Programming is completed by Proficy Machine Edition software, supporting multiple programming languages including ladder diagram and structured text. |
| 3 | Q:What is the maximum rack support? A:IC695CPE310 can support up to 8 local racks of RX3i I/O modules, realizing large-scale distributed I/O control. |
