Products Description

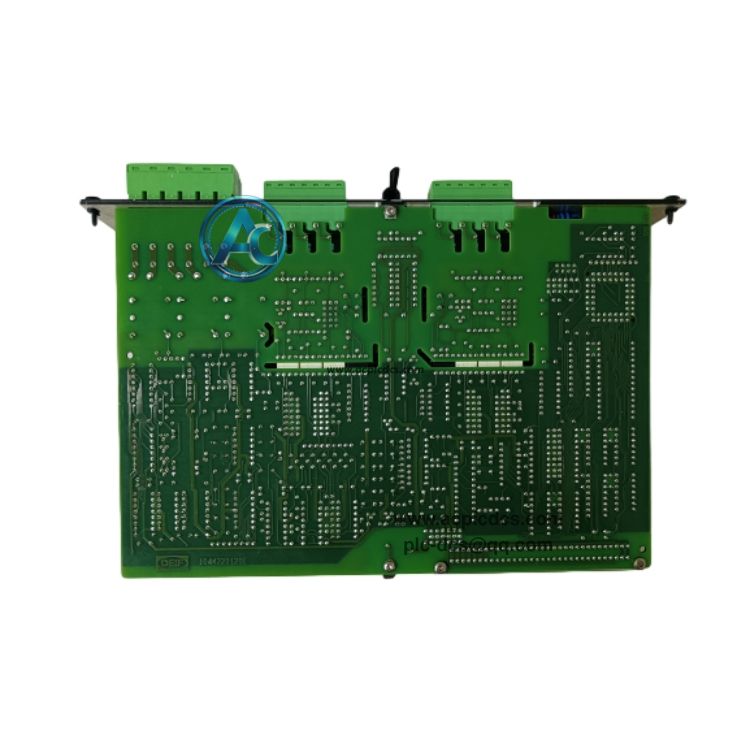

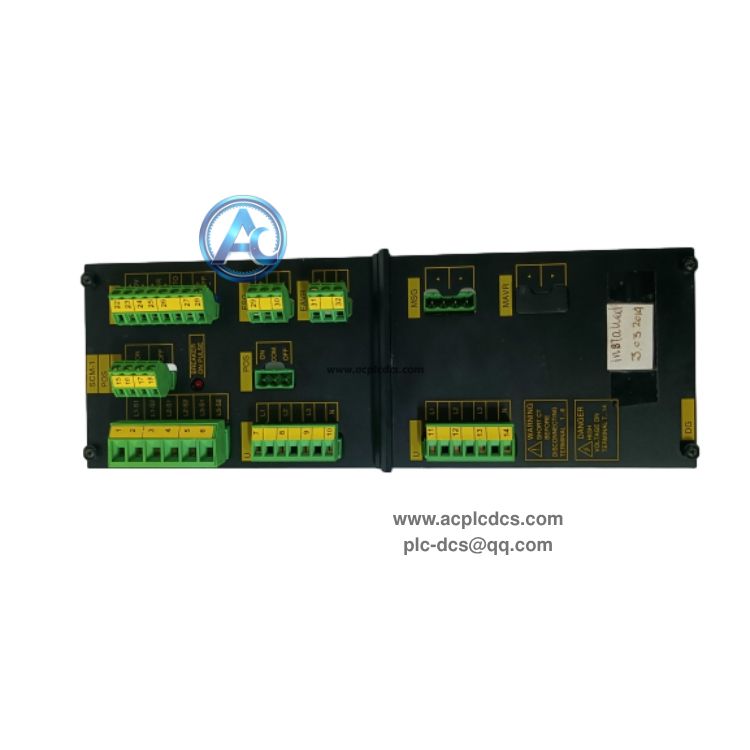

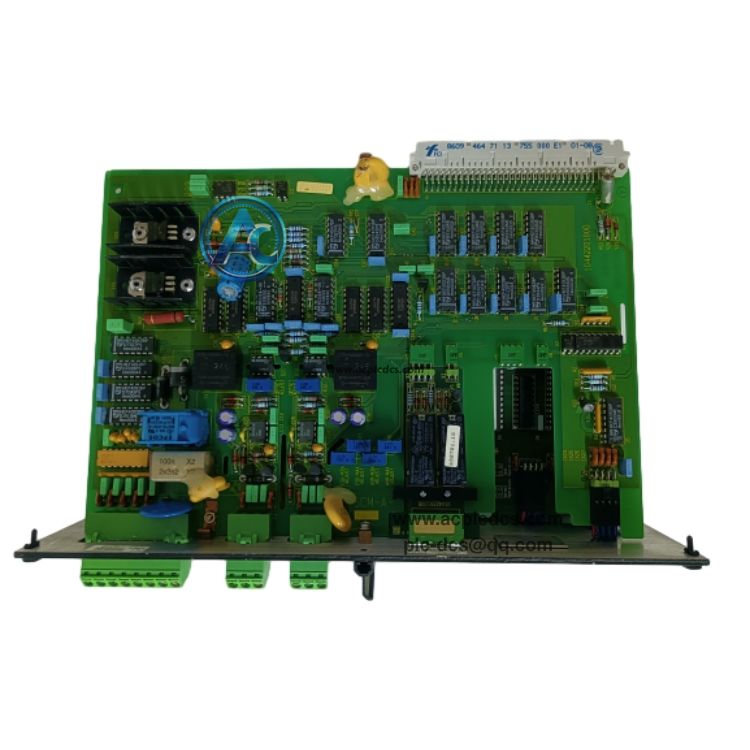

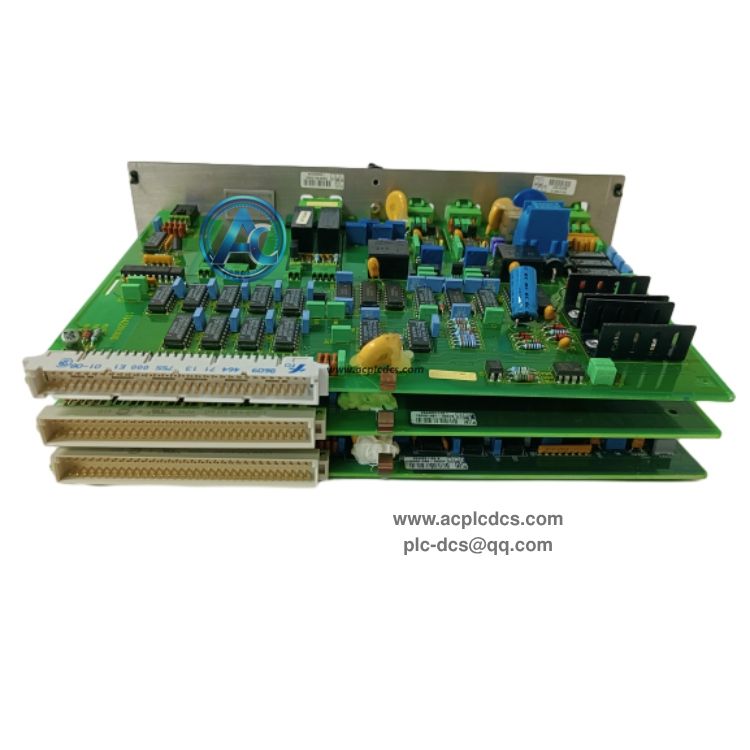

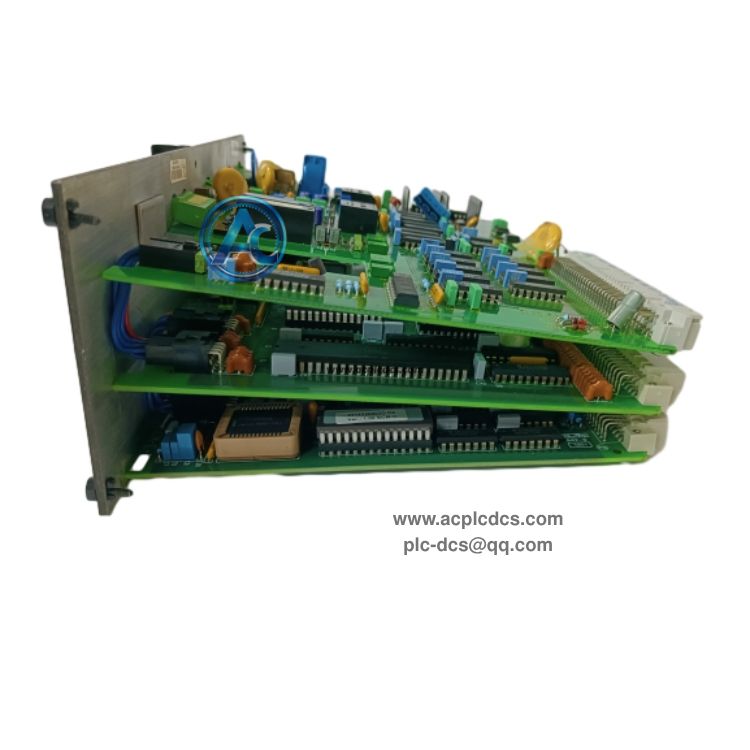

DEIF SCM-1 Automatic Generator Synchronizing Control Module
DEIF SCM-1 is a microprocessor-based automatic synchronizing module for generator paralleling control. It continuously compares voltage, frequency and phase difference between generator and busbar, and outputs governor and AVR control signals to match parameters before closing the generator breaker.
This compact panel-mount module uses DIP switches and potentiometers for on-site parameter setting, with front LED status indicators. Widely used in diesel generator sets, hydro power and marine power systems, it is a common spare part for power station switchgear maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | DEIF (Denmark) |
| 2 | Model | SCM-1 |
| 3 | Module Type | Automatic Synchronizing Control Module |
| 4 | Function | Generator & bus voltage, frequency, phase synchronization |
| 5 | Input | PT voltage signals from generator and busbar |
| 6 | Output Relay | Gov raise/lower, AVR raise/lower, breaker close pulse |
| 7 | Configuration | DIP switch and potentiometer adjustment |
| 8 | Operating Temperature | -20℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Real-time comparison of generator voltage, frequency and phase against busbar |
| 2 | Send raise/lower control signals to governor and AVR for parameter matching |
| 3 | Output breaker closing pulse only when sync conditions are fully satisfied |
| 4 | Adjustable threshold for voltage deviation, frequency slip and advance closing time |
| 5 | LED status indication for synchronization progress, alarm and fault diagnosis |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Land-based diesel generator parallel switchgear cabinet |
| 2 | Marine power station generator paralleling control system |
| 3 | Small hydro power plant generator synchronization control |
| 4 | Backup power automatic paralleling for hospital and data center |
| 5 | Legacy DEIF generator control system spare replacement and maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is DEIF SCM-1? A:It is an automatic synchronizing module for generator paralleling. It matches generator voltage, frequency and phase with the busbar, then triggers breaker close to safely connect generators to the grid. |
| 2 | Q:How to configure SCM-1? A:It is configured via DIP switches and potentiometers on the module, no special PC software required. Users can set allowable voltage/frequency tolerance and breaker advance time. |
| 3 | Q:What is the main risk without synchronizing control? A:Closing breaker out of sync will cause huge impact current, damage generator winding and switchgear, and trigger power grid protection trip. |
