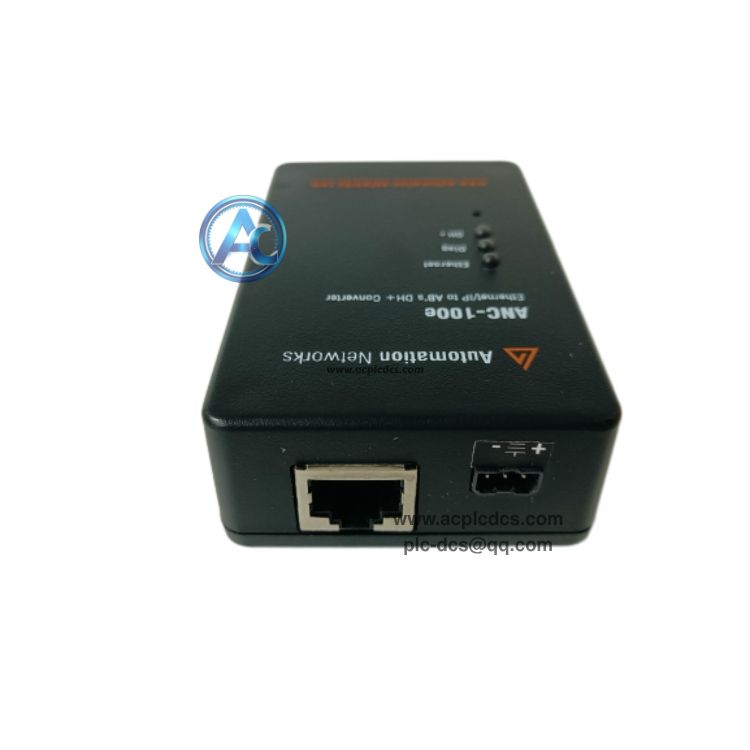

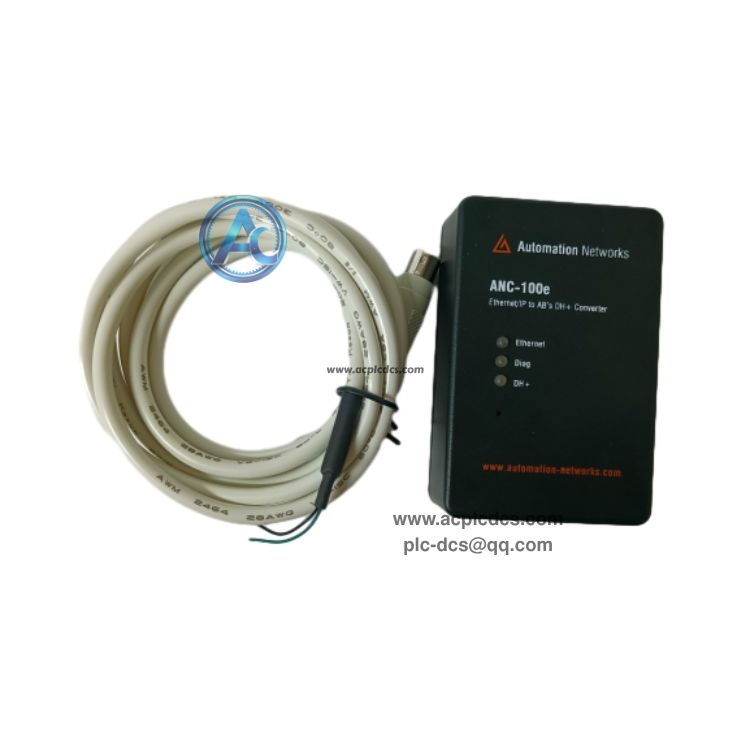

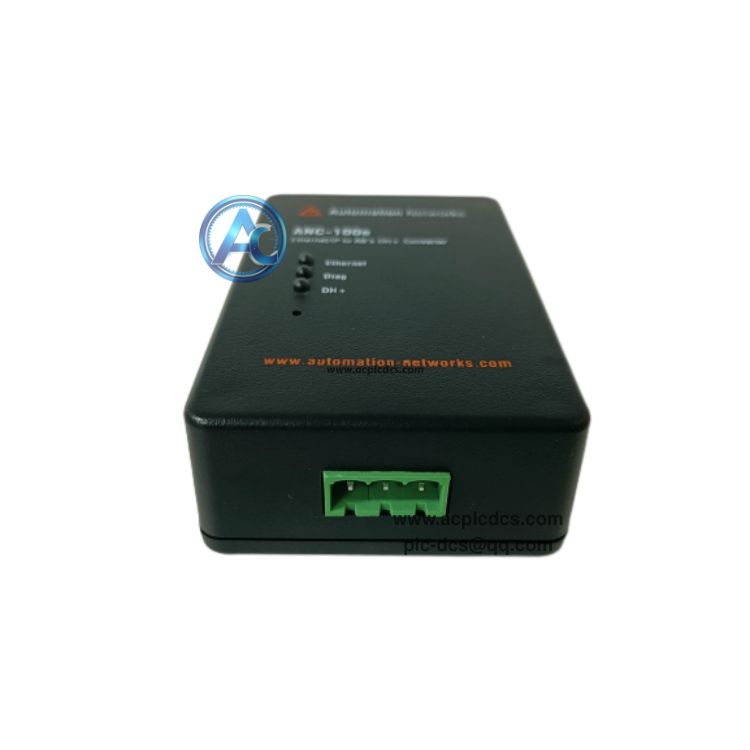

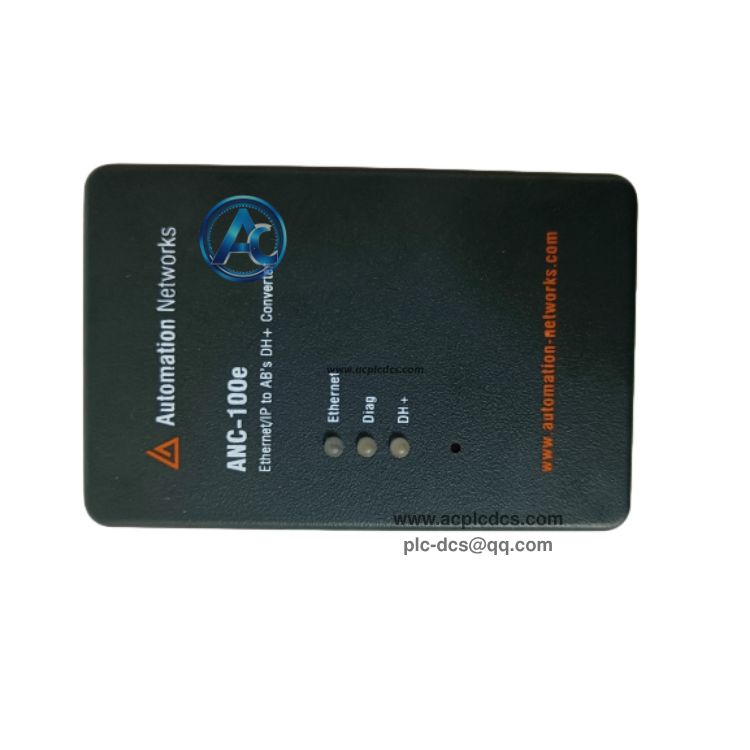

Automation Networks ANC-100E ProSoft AN-X2-AB-DHRIO DH+/RIO Gateway in stock
ANC-100E and AN-X2-AB-DHRIO are industrial communication gateways for Allen‑Bradley legacy networks. AN-X2-AB-DHRIO is manufactured by ProSoft, while ANC-100E is from Automation Networks. Both bridge old DH+ / Remote I/O networks to modern EtherNet/IP, enabling data exchange between legacy PLC5/SLC and new ControlLogix systems.
These gateways support web-based configuration and microSD card for firmware and configuration storage. Widely used for phased migration of obsolete AB PLC systems, they are common spare parts for retrofitting old production lines and power plant control networks.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Automation Networks(ANC-100E), ProSoft(AN-X2-AB-DHRIO) |
| 2 | Model | ANC-100E, AN-X2-AB-DHRIO |
| 3 | Module Type | Industrial Protocol Gateway |
| 4 | Protocol | EtherNet/IP ↔ DH+ / Remote I/O(RIO) |
| 5 | Ethernet Port | 1 × 10/100Mbps RJ45 |
| 6 | Field Interface | Phoenix 3-pin terminal for DH+/RIO |
| 7 | Power Supply | 12~24VDC |
| 8 | Operating Temperature | 0℃ ~ +50℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Realize bidirectional data conversion between EtherNet/IP and DH+ / RIO network |
| 2 | Connect modern ControlLogix to legacy PLC-5, SLC500 and Remote I/O racks |
| 3 | Built-in web server for configuration, diagnosis and firmware upgrade |
| 4 | MicroSD card to save configuration parameters and firmware files |
| 5 | LED status indicators for power, ethernet and fieldbus network status |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Factory legacy Allen‑Bradley PLC system migration and upgrade |
| 2 | Power plant, water treatment old DH+ control network reconstruction |
| 3 | Connect new HMI/SCADA to PLC5 and SLC500 legacy controllers |
| 4 | Phased replacement of obsolete Remote I/O racks and old HMIs |
| 5 | Spare parts maintenance for existing AB DH+ / RIO automation systems |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What are ANC-100E and AN-X2-AB-DHRIO? A:They are protocol gateways to convert EtherNet/IP to Allen‑Bradley DH+ or Remote I/O, allowing new-generation PLC and HMI to communicate with legacy PLC-5/SLC500 without full system replacement. |
| 2 | Q:What is the difference between ANC-100E and AN-X2-AB-DHRIO? A:ANC-100E is from Automation Networks; AN-X2-AB-DHRIO is ProSoft’s model. Both serve similar DH+/RIO to EtherNet/IP bridging functions for Allen‑Bradley legacy systems. |
| 3 | Q:How to configure this gateway? A:Users can access the built-in web browser interface for parameter setup, network diagnosis and firmware update, no special software required for basic configuration. |
