ABB S-113H 3BHB018008R0003 ACS6000 Phase Module in stock

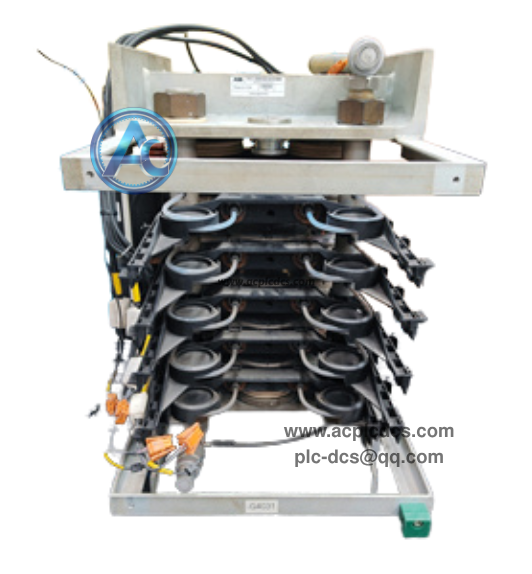

ABB S-113H 3BHB018008R0003 is a core phase module for ABB ACS6000 medium voltage variable frequency drive system. It is the power phase unit of medium voltage inverter, responsible for IGBT drive, power conversion and real-time monitoring of phase operating status.

This module adopts industrial high-power design and water cooling structure, capable of stable operation under heavy load and high electromagnetic interference. It is widely used as replacement spare parts for ACS6000 medium voltage drives in mining, metallurgy, oil & gas and power industries.

Main Specifications

1. Brand: ABB; Model: S-113H; Part No:3BHB018008R0003; Series: ACS6000 Medium Voltage Drive

2. Type: Medium Voltage Inverter Phase Module

3. Cooling Method: Water cooling

4. Operating Temperature: -10℃ ~ +50℃; Industrial EMC protection

5. Core Component: Integrated IGBT power unit and gate drive circuit

6. Communication: Optical fiber communication with main drive controller

Core Functions

1. Complete AC-DC-AC power conversion and realize medium voltage motor speed regulation.

2. Generate IGBT gate drive signals, control on-off of power semiconductor devices.

3. Real-time monitoring of phase current, voltage and temperature, multi-level hardware protection.

4. Transmit operating data and fault alarms to main controller via optical fiber links.

5. Quickly block power drive signals when detecting overcurrent, over-temperature or short-circuit faults.

6. Modular structure, convenient disassembly and replacement for ACS6000 drive cabinet maintenance.

Application Scenarios

1. ACS6000 medium voltage drive cabinets for mining, metallurgy and cement industries.

2. High-power fan, pump and compressor medium voltage speed control in oil & gas and chemical plants.

3. Maintenance and faulty phase module replacement of existing ABB ACS6000 drive systems.

4. Power plant medium voltage motor energy saving and speed regulation transformation projects.

5. Heavy-duty industrial equipment medium voltage drive spare parts inventory.

6. Large process automation high-power medium voltage variable frequency control systems.

FAQ

1. Q: What is ABB S-113H 3BHB018008R0003?
   A: It is a medium voltage phase module for ABB ACS6000 VFD, including IGBT power unit and gate drive circuit.

2. Q: Which drive system does it match?
   A: It is exclusively used for ABB ACS6000 series medium voltage variable frequency drive cabinets.

3. Q: What is the cooling type?
   A: It adopts water cooling design to support continuous high-power operation of medium voltage inverter.
