Products Description

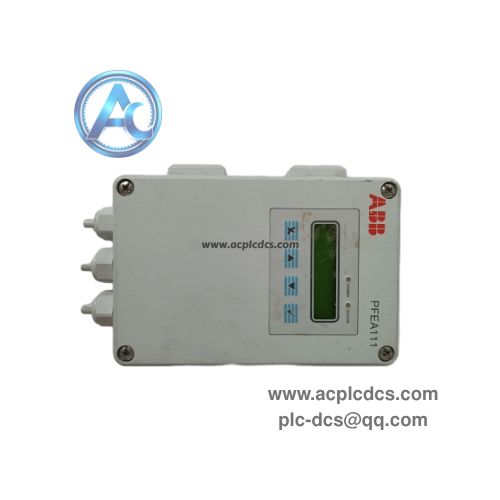

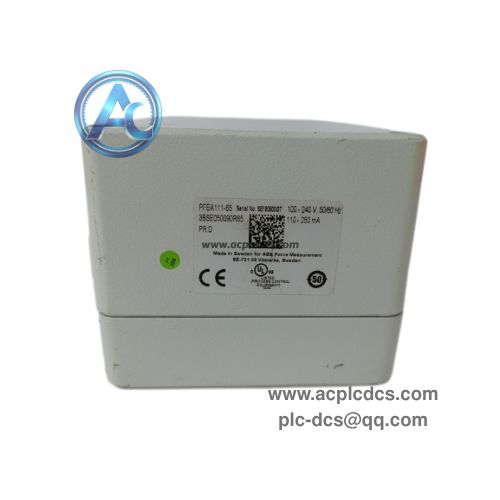

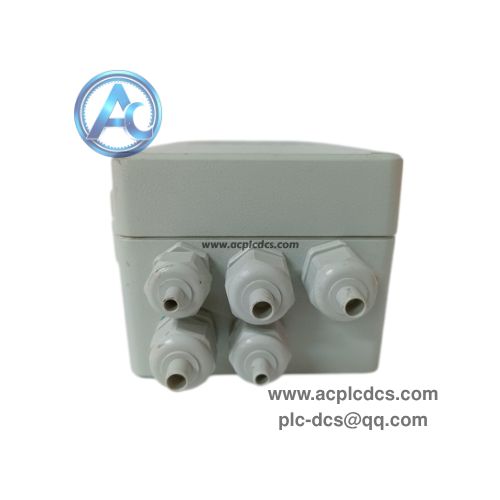

ABB PFEA111-65 3BSE050090R65 Tension Measurement Electronic Unit in stock
ABB PFEA111-65 (3BSE050090R65) is ABB tension electronics unit designed for Pressductor load cells, used for web tension measurement. It supports 2 load cell inputs, with built-in digital display and parameter buttons to show tension value, sum and difference signals.
This unit provides configurable analog voltage and current output for tension control system. It adopts IP65 enclosure for field installation, supports adjustable signal filtering and unit conversion, widely used in paper, film, textile and metal foil continuous production lines.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | PFEA111-65, Part No:3BSE050090R65 |
| 3 | Module Type | Tension Measurement Electronic Unit |
| 4 | Load Cell Input | 2 channels for Pressductor load cell |
| 5 | Analog Output | 0-±10V / 4-20mA configurable |
| 6 | Power Supply | 24VDC, power consumption 8W |
| 7 | Operating Temperature | +5℃ ~ +55℃, IP65 enclosure |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Receive measuring signal from 2 pieces of Pressductor tension load cells |
| 2 | Calculate and display tension value, A/B single value, sum and difference of two sensors |
| 3 | Configurable analog output to transmit tension signal to PLC or drive controller |
| 4 | Adjustable digital filter to suppress vibration and noise interference on production line |
| 5 | Local digital display and keys for parameter setting, calibration and unit switching |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Paper making machine web tension monitoring and closed-loop control |
| 2 | Plastic film, foil and textile continuous production line tension control |
| 3 | Metal strip rolling and slitting line tension measurement system |
| 4 | Packaging printing machine web unwinding and rewinding tension regulation |
| 5 | ABB Pressductor load cell matching tension measurement system upgrade |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is PFEA111-65 used for? A:It is ABB tension electronics unit for continuous web tension measurement with Pressductor load cells. |
| 2 | Q:How many load cells can it connect? A:It supports 2 channels of Pressductor tension load cell input. |
| 3 | Q:What is the protection class? A:IP65 enclosure, suitable for direct installation on production site. |
