Products Description

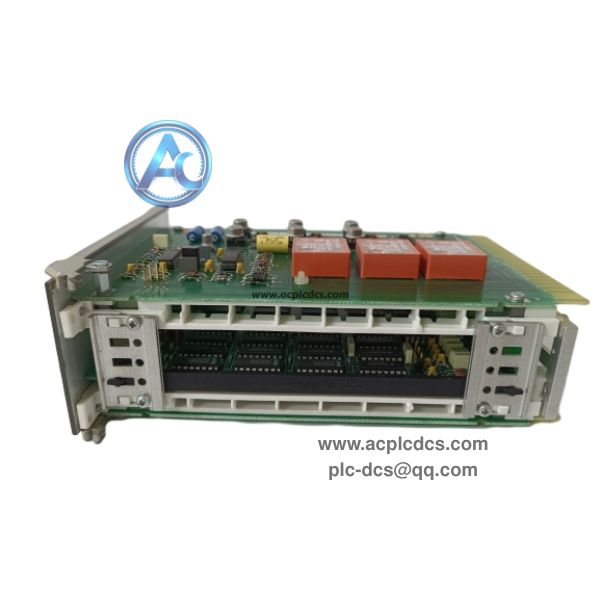

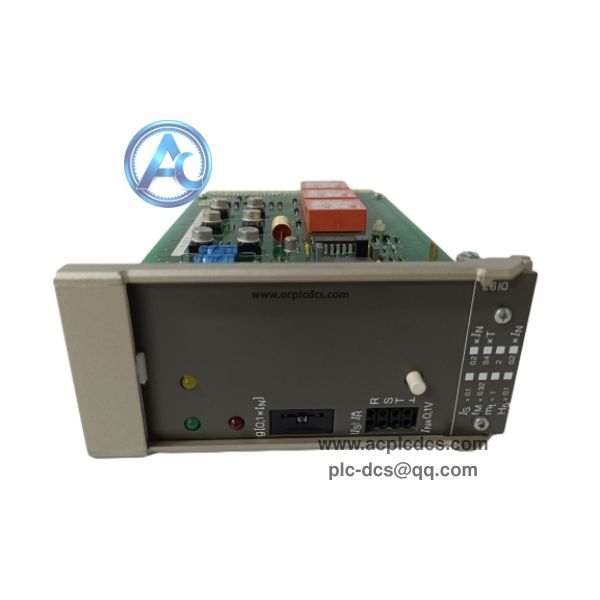

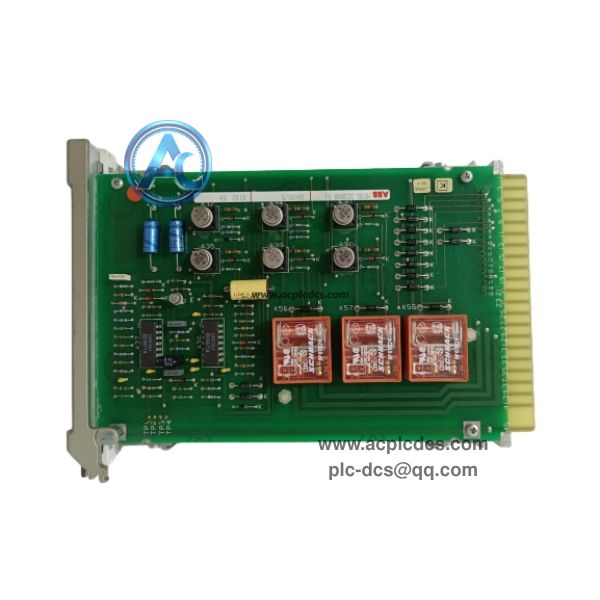

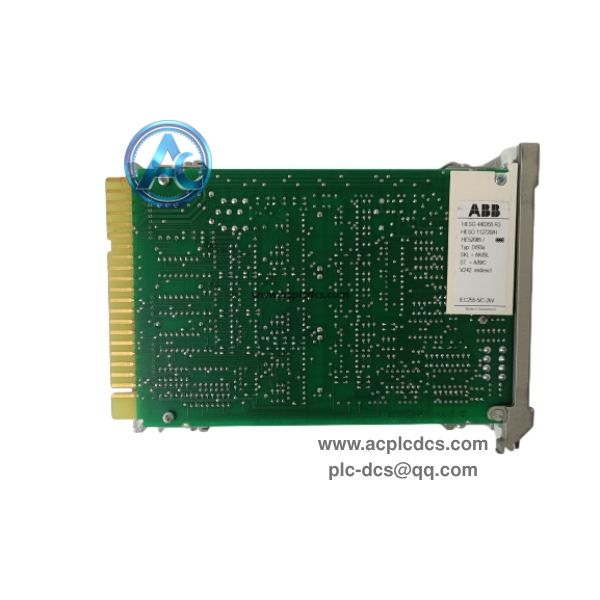

ABB DI93a HESG440355R3 Digital Input Module
ABB DI93a HESG440355R3 is a digital input module used for ABB industrial control systems. It collects on-site digital switching signals and converts them into internal bus signals for the main controller, with optical isolation to resist industrial electromagnetic interference.
This module is equipped with LED status indicators for each channel for quick on-site troubleshooting. It belongs to legacy spare parts, widely used for maintenance and replacement of old ABB power and process automation control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | DI93a, HESG440355R3 |
| 3 | Module Type | Digital Input Module |
| 4 | Input Channel | 16 channels |
| 5 | Isolation Type | Optical isolation |
| 6 | Input Voltage Range | 10~30VDC |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
| 8 | Status | Discontinued legacy automation spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Collect digital switching signals from field sensors, limit switches and proximity sensors. |
| 2 | Optical isolation design isolates field noise and prevents ground loop damage to main control unit. |
| 3 | Convert field digital signals into internal bus data and transmit to the controller for logic judgment. |
| 4 | Built-in LED channel indicators to directly display the on/off status of each input point. |
| 5 | Support rack hot swap for convenient module replacement without shutting down the whole system. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB legacy control system digital signal acquisition cabinet spare replacement |
| 2 | Power plant auxiliary system switch status monitoring and interlock signal collection |
| 3 | Water treatment, chemical industry on-site sensor and valve feedback signal acquisition |
| 4 | Old industrial automation system overhaul and spare parts inventory stocking |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB DI93a HESG440355R3? A: It is a 16-channel optically isolated digital input module for ABB industrial control systems to collect field switch signals. |
| 2 | Q: What is the function of optical isolation? A: It blocks high voltage and electromagnetic interference from field wiring to protect the main controller board. |
| 3 | Q: Can it be used for 220V AC signal input? A: No, it is designed for 10~30VDC digital signals; AC signals need external conversion modules. |
