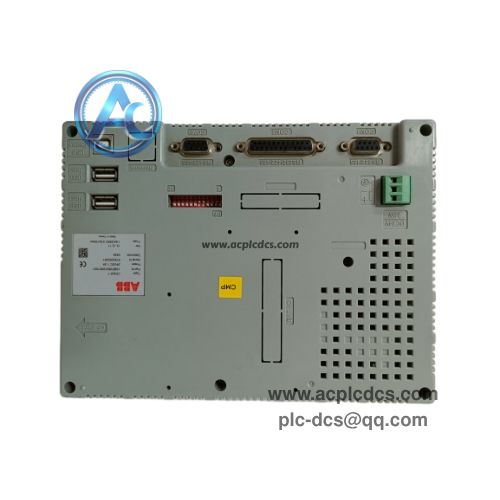

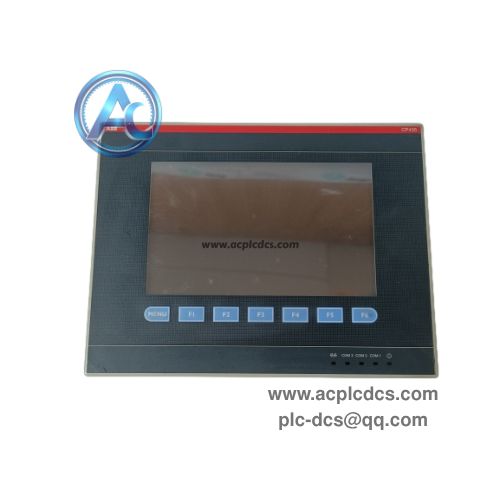

ABB CP435T 1SBP260193R1001 7 Inch TFT HMI Touch Panel
ABB CP435T 1SBP260193R1001 is an industrial HMI touch panel belonging to the ABB CP400 series. It serves as the human-machine interface for AC500 PLC and automation systems, supporting real-time process data display, parameter setting and alarm monitoring.
This operator terminal adopts 7-inch TFT color screen with resistive touch, IP65 front panel protection for dust and splash resistance. It is widely used as spare replacement for factory automation, power and water treatment control cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | CP435T, 1SBP260193R1001 |
| 3 | Module Type | Industrial HMI Touch Panel |
| 4 | Display | 7" TFT, 64K Colors, 800×480 |
| 5 | Touch Type | Resistive touch screen |
| 6 | Power Supply | 24VDC |
| 7 | Operating Temperature | 0℃ ~ +50℃ |
| 8 | Front Protection | IP65 |
| 9 | Status | Legacy ABB HMI spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Real-time display of PLC process data, running status, trend curves and equipment graphics. |
| 2 | Touch operation and physical function keys for parameter modification and remote control of field devices. |
| 3 | Alarm message recording, event logging and password-based multi-level access management. |
| 4 | Supports RS232/RS485 and Ethernet communication, compatible with ABB AC500 PLC series. |
| 5 | SD card slot for project backup, recipe storage and firmware upgrade without system shutdown. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB AC500 PLC automation cabinet HMI operator interface replacement |
| 2 | Water treatment plant pump and valve monitoring & local operation panel |
| 3 | Manufacturing production line, packaging and material handling machine control cabinet |
| 4 | Industrial automation system retrofit and old HMI spare stocking |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB CP435T 1SBP260193R1001? A: It is a 7-inch industrial HMI touch panel for ABB AC500 PLC, used for on-site monitoring and operation. |
| 2 | Q: Can it communicate with non-ABB PLC? A: Yes, it supports multiple common industrial protocols to connect with most mainstream PLC brands. |
| 3 | Q: Does it support glove touch operation? A: Yes, the resistive touch screen can work normally when wearing industrial gloves. |
