Products Description

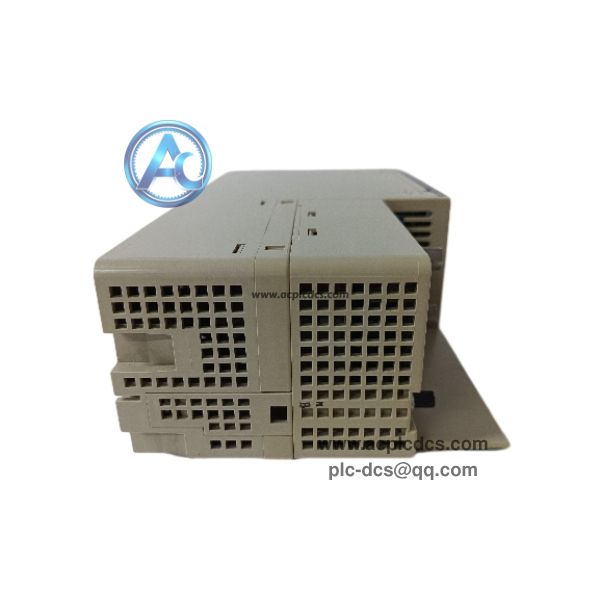

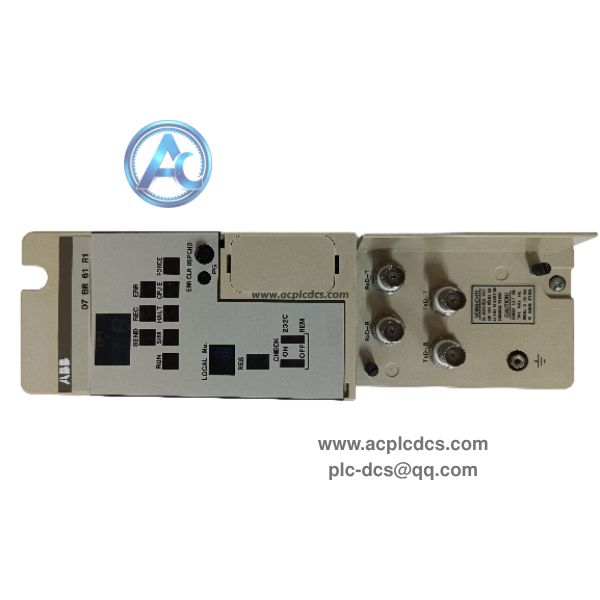

ABB 07BR61R1 GJV3074376R1 Digital Relay Output Module in stock
ABB 07BR61R1 GJV3074376R1 is a PLC digital relay output module for ABB Advant Controller series. It provides relay contact outputs for switching control of field equipment, supporting isolation between control circuit and field side.
This module adopts mechanical relay design, with high load capacity and strong anti-surge capability. It is a legacy industrial spare part widely used for DCS and PLC system maintenance in power, water treatment and manufacturing industries.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | 07BR61R1, GJV3074376R1 |
| 3 | Module Type | Digital Relay Output Module |
| 4 | Series | Advant Controller |
| 5 | Output Type | Relay contact output |
| 6 | Operating Temperature | 0℃ ~ +60℃ |
| 7 | Application Industry | Power, water treatment, factory automation |
| 8 | Status | Discontinued legacy automation spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Convert internal PLC logic signals into relay contact switching signals for field actuators. |
| 2 | Electrical isolation between controller backplane and field wiring to protect main control unit. |
| 3 | Support switching of loads such as contactors, valves, alarms and indicator lights. |
| 4 | Diagnostic feedback of relay channel status to the upper controller for fault monitoring. |
| 5 | Hot swap compatible in matched rack for convenient module replacement during maintenance. |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB Advant DCS system digital output control cabinet spare replacement |
| 2 | Power plant auxiliary equipment logic switching and interlock protection control |
| 3 | Water treatment plant valve, pump and alarm signal switching control |
| 4 | Legacy industrial automation system overhaul and spare parts stocking |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB 07BR61R1 used for? A: It is a relay output module for Advant Controller, used to drive field switches, valves and alarm devices. |
| 2 | Q: What is the part number GJV3074376R1? A: GJV3074376R1 is the alternate part number for 07BR61R1, they refer to the same module. |
| 3 | Q: Can it be used for high current load directly? A: The relay contact has rated load limit; heavy loads need external contactor for protection. |
