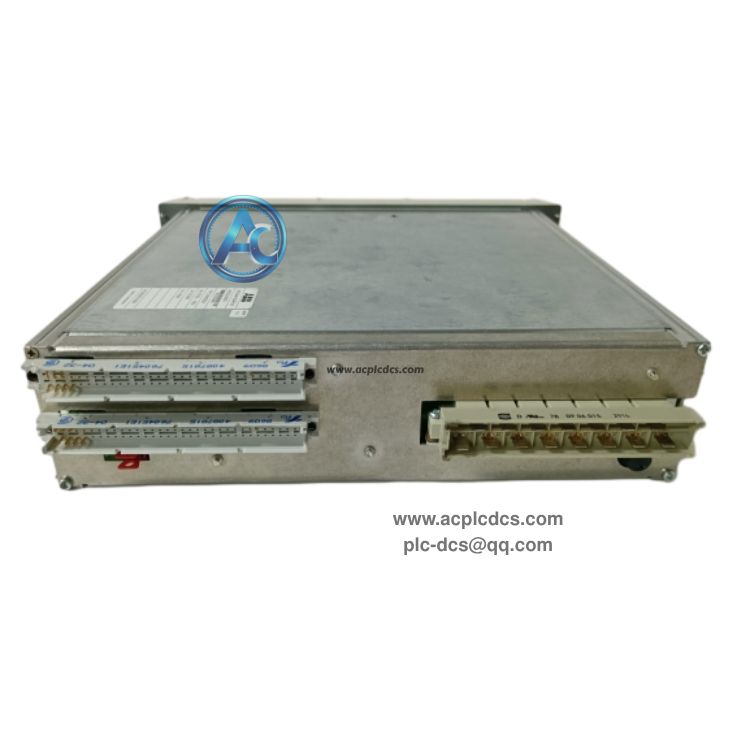

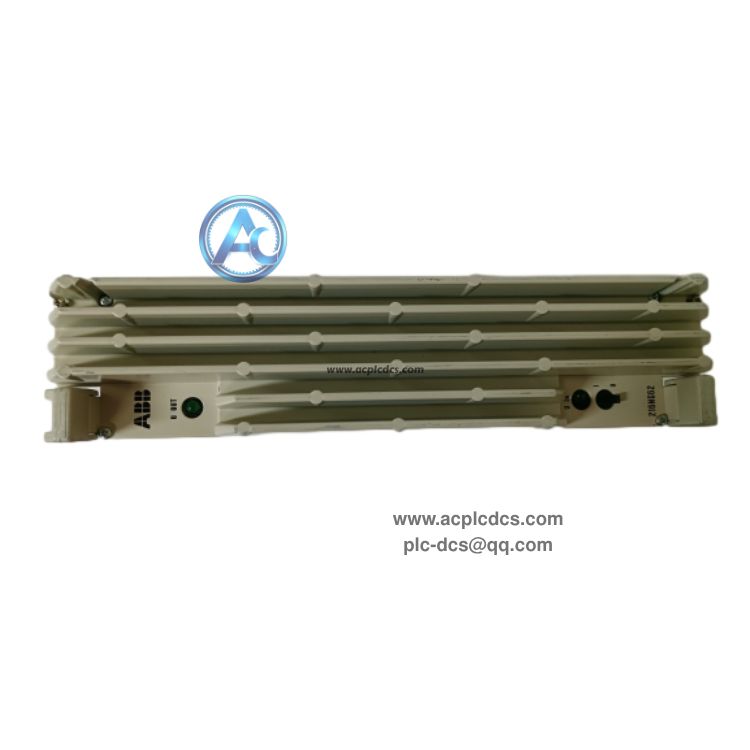

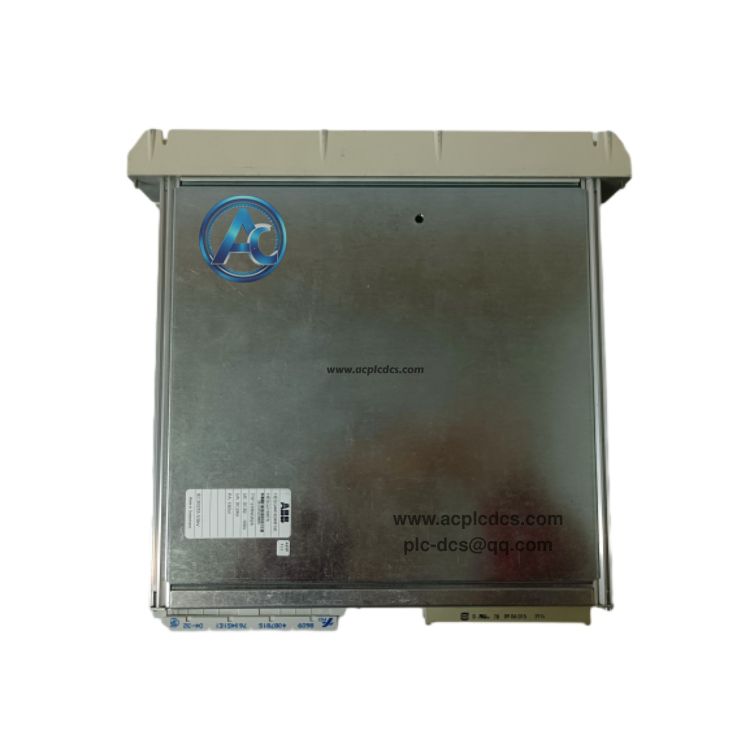

ABB 216NG62A HESG441634R1K HESG216876 Communication Interface Module
ABB 216NG62A (HESG441634R1K, HESG216876) is a communication interface module for ABB Advant Master DCS system. It acts as a data bridge between the DCS controller and remote I/O modules, responsible for transmitting process data, control commands and status information across the fieldbus network.
This module supports high-speed fieldbus communication with built-in signal isolation and communication fault diagnosis. It is an obsolete spare part, mainly used for maintenance, replacement and overhaul of legacy ABB Advant Master DCS control racks.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | 216NG62A, HESG441634R1K, HESG216876 |
| 3 | Module Type | Communication Interface Module |
| 4 | System Platform | ABB Advant Master DCS |
| 5 | Communication Type | Advant fieldbus |
| 6 | Isolation | Galvanic isolation for communication circuit |
| 7 | Mounting | DCS rack mount |
| 8 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Realize high-speed fieldbus data exchange between DCS controller and I/O modules |
| 2 | Transmit field acquisition signals from I/O modules to the Advant controller |
| 3 | Forward control commands from controller to field I/O modules reliably |
| 4 | Communication error detection, network monitoring and fault alarm function |
| 5 | Isolation protection to reduce interference on fieldbus communication lines |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant ABB Advant Master DCS control cabinet |
| 2 | Petrochemical and oil & gas plant fieldbus control network |
| 3 | Pulp & paper, metallurgy continuous process automation system |
| 4 | Advant DCS rack internal controller and I/O communication link |
| 5 | Legacy ABB Advant DCS spare replacement and maintenance project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB 216NG62A HESG441634R1K HESG216876? A:It is an Advant Master DCS communication interface module, responsible for fieldbus data transmission between the DCS controller and I/O modules to guarantee normal exchange of control and status data. |
| 2 | Q:What is the core role of this communication module? A:It serves as the data gateway on the Advant fieldbus, transferring process signals and control orders, and continuously monitoring network communication quality. |
| 3 | Q:Which DCS rack can this module be installed in? A:It fits ABB Advant Master DCS rack, works together with Advant series controllers and I/O modules such as 216DB61 and 216EA62. |
