Products Description

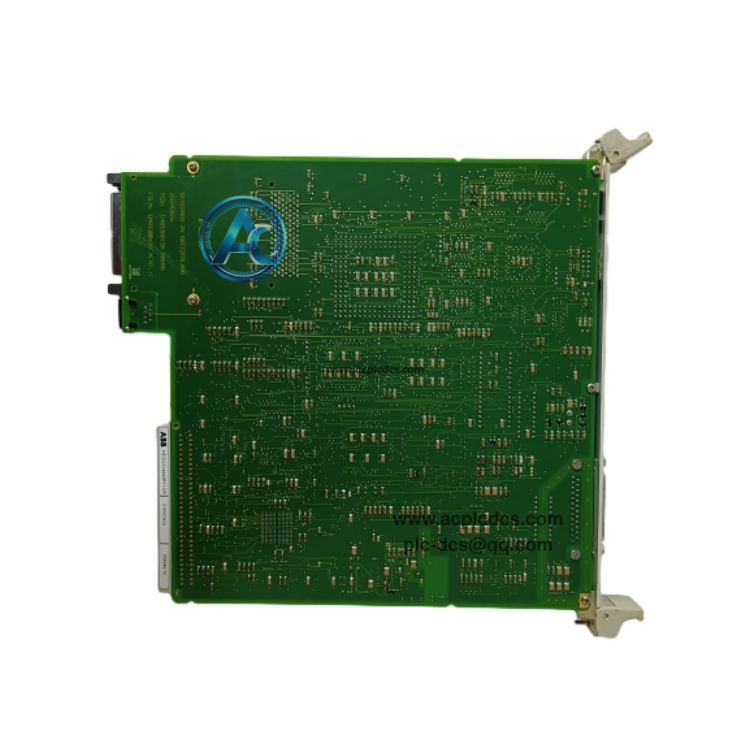

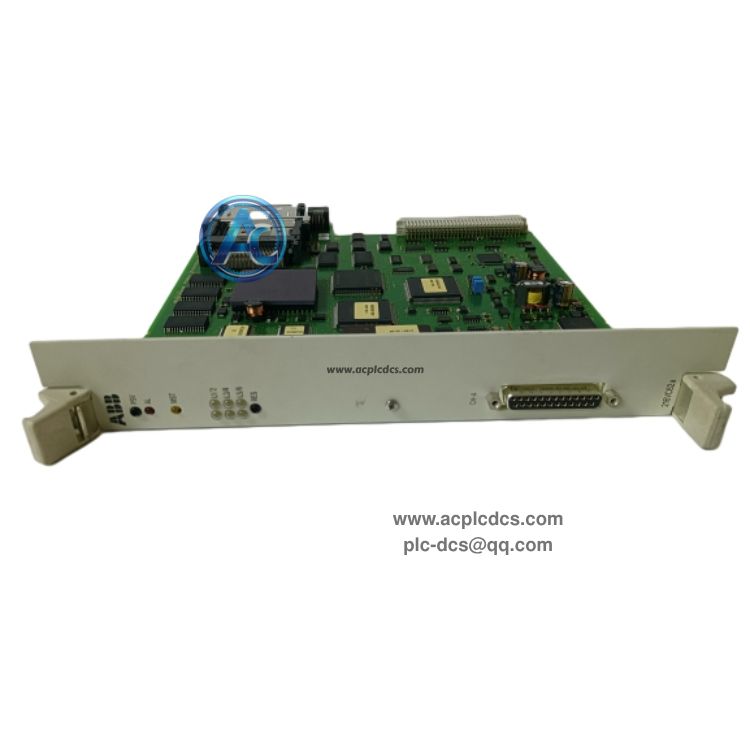

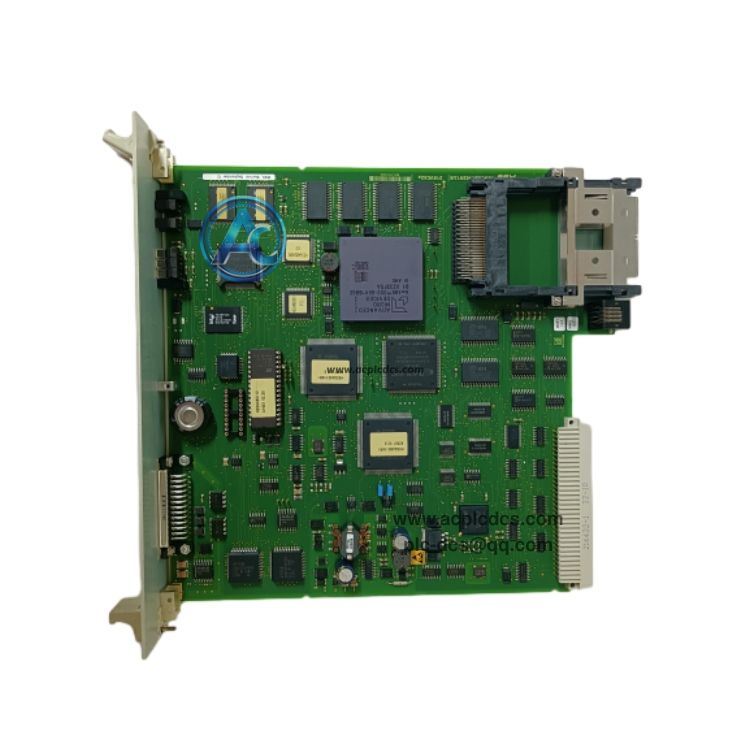

ABB 216VC62A HESG324442R112/F Processor Communication Module in stock
ABB 216VC62A (HESG324442R112/F) is a processor and communication module for ABB Advant Master DCS system. It executes control logic, processes I/O data and handles high-speed fieldbus communication between rack components, serving as a core processing unit for the legacy Advant control rack.
This board adopts VME bus architecture with built-in comprehensive self-diagnosis and watchdog protection. It is end-of-life, supplied as new surplus or refurbished spare parts for power plant and petrochemical Advant DCS maintenance and replacement.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | 216VC62A, HESG324442R112/F |
| 3 | Module Type | Processor & Communication Module |
| 4 | System Platform | ABB Advant Master DCS |
| 5 | Bus Standard | VME bus |
| 6 | Diagnosis | Built-in self-test and watchdog protection |
| 7 | Mounting | DCS rack mount |
| 8 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Execute DCS control logic and process analog/digital I/O data from field modules |
| 2 | Manage Advant fieldbus communication and exchange data with I/O and communication boards |
| 3 | Watchdog circuit to ensure safe system shutdown when processor fault occurs |
| 4 | Real-time module self-diagnosis, record fault events and send alarm signals |
| 5 | Coordinate internal rack data transmission for 216 series I/O modules |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant boiler and turbine Advant Master DCS control cabinet |
| 2 | Petrochemical and oil & gas continuous process control system |
| 3 | Pulp & paper, metallurgy heavy industry automation control rack |
| 4 | Coordinate 216DB61,216EA62,216NG62A I/O modules in Advant rack |
| 5 | Legacy ABB Advant DCS spare parts replacement and overhaul project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB 216VC62A HESG324442R112/F? A:It is a processor and communication board for ABB Advant Master DCS. It runs control logic, processes I/O signals and manages fieldbus communication for the whole Advant rack. |
| 2 | Q:Which I/O modules can it work with? A:It matches the 216 series modules including 216DB61 digital input, 216EA62 analog output and 216NG62A communication module in Advant rack. |
| 3 | Q:Is this module still in production? A:This processor board has been discontinued by ABB. Available stock is new surplus or refurbished spare parts for maintenance of existing Advant DCS systems. |
