GE VMIVME7698 VMEbus Single Board Computer

2026-10-27

GE VMIVME7698 VMEbus Single Board Computer

GE VMIVME7698 is a 6U single-slot VME64 single-board computer developed by VMIC (GE Intelligent Platforms, Abaco). It adopts Socket 370 Intel Celeron processor up to 366MHz, PC/AT compatible architecture, equipped with onboard fast Ethernet, SVGA graphics, serial ports and IDE storage interface, built for real-time VME control and simulation systems.

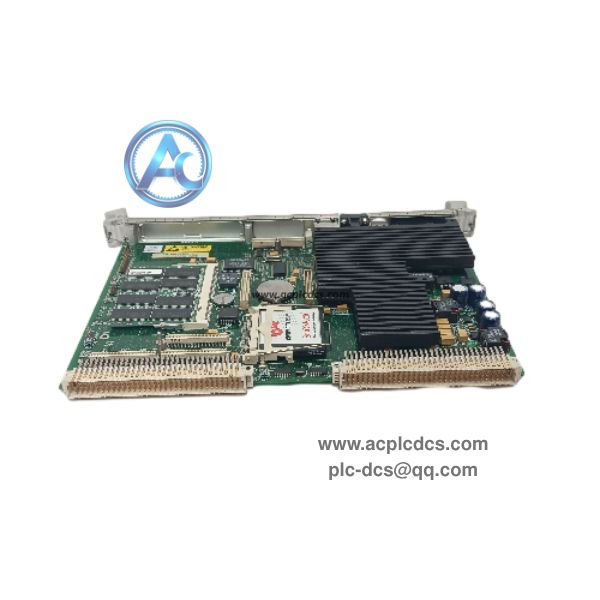

GE VMIVME7698 (4).jpeg

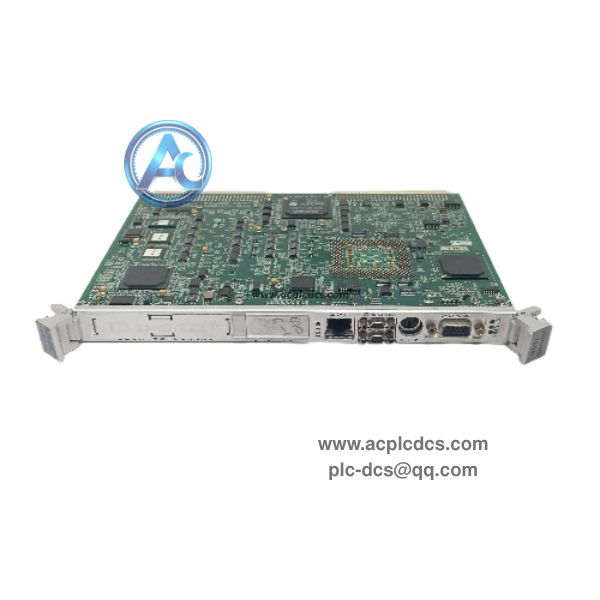

GE VMIVME7698 (1).jpeg

This SBC supports PMC expansion site, battery-backed SRAM and configurable watchdog timer. It can run VxWorks, Linux, Windows NT and other real-time operating systems, widely deployed in turbine control, hardware-in-loop simulation and legacy VME rack renovation, and it is a classic discontinued spare for VMIC VME systems.


GE VMIVME7698 (3).jpeg

Data Parameters

  • 1. Brand: GE (VMIC / Abaco)

  • 2. Model: VMIVME7698

  • 3. Product Type: 6U Single Slot VME64 Single Board Computer

  • 4. Application: Turbine control, real-time simulation, test & measurement system

  • 5. Feature: Socket370 Celeron, VME64, PMC expansion, passive heat sink

  • 6. Characteristic: Up to 256MB SDRAM, 32KB battery-backed SRAM

  • 7. Onboard Interfaces: 10/100 Ethernet, SVGA, dual RS232, PS/2 KB/Mouse, IDE

  • 8. Bus Mode: A32/A24/D32/D16, MBLT64, BLT32 transfer

  • 9. Storage: CompactFlash / IDE hard disk optional

  • 10. Operating Temperature: -20℃ ~ +60℃

Core Functions

  • 1. Serve as the main CPU to run real-time control application for VME rack systems.

  • 2. Communicate with VMIVME I/O boards via VME64 bus to collect and output control signals.

  • 3. Support watchdog timer and programmable timers for safety and timing control logic.

  • 4. Realize local display, serial debugging and network remote boot function.

  • 5. Expand extra functions through PMC module site for customized simulation tasks.

Application Scenarios

  • 1. GE gas and steam turbine VME control cabinet main computing rack.

  • 2. Hardware-in-loop real-time simulation and test bench control unit.

  • 3. Aerospace and military embedded VME measurement & control platform.

  • 4. Legacy VMIC VME system overhaul and SBC spare replacement.

  • 5. Matching master CPU for VMIVME1150 / 2170A / 4150 / 5576 I/O group.

FAQ

  • 1. Q: What is GE VMIVME7698?
        A: It is a VME64 single board computer based on Intel Celeron for VMIC VME real-time control racks.

  • 2. Q: Can it work with VMIVME reflective memory board?
        A: Yes, it can cooperate with VMIVME5576 to build low-latency synchronous simulation network.

  • 3. Q: Is it still in production?
        A: This model is discontinued, only available as surplus and maintenance spare parts.
