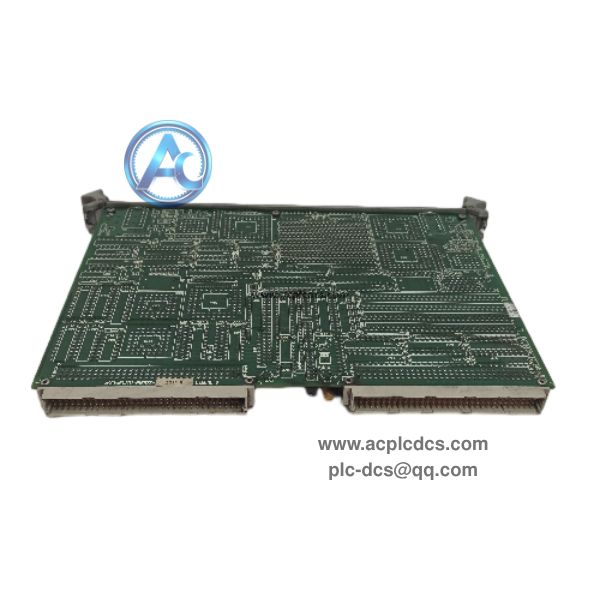

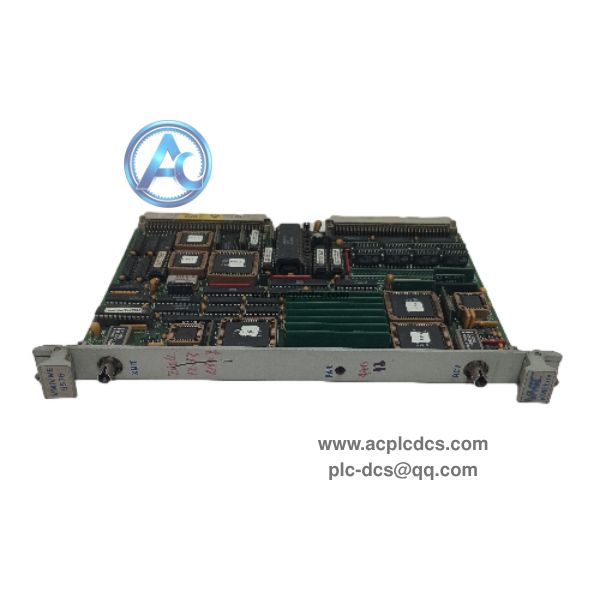

GE VMIVME5576 Fiber Optic Reflective Memory Board

GE VMIVME5576 is a 6U single-height VMEbus fiber reflective memory board developed by VMIC (GE Intelligent Platforms). It realizes ultra-low-latency shared memory communication among distributed VME nodes through fiber links. Once data is written to local SRAM, it will be broadcast to all other nodes on the network automatically, with transparent transmission for host CPU and no extra I/O overhead.

This module supports up to 256 network nodes, with onboard SRAM configurable from 256KB to 1MB. It supports hardware interrupt synchronization between nodes, widely used in turbine control, real-time simulation and hardware-in-loop test systems, and it is a classic spare for legacy VME distributed control racks.

Data Parameters

• 1. Brand: GE (VMIC / Abaco)

• 2. Model: VMIVME5576

• 3. Product Type: VMEbus Fiber Reflective Memory Interface Card

• 4. Application: Distributed VME real-time control & simulation system

• 5. Feature: Max 6.2MB/s transfer rate, fiber optic transmission

• 6. Characteristic: 256KB ~ 1MB onboard SRAM, up to 256 nodes

• 7. Fiber Connector: ST / SC optional, multimode fiber

• 8. Bus Support: VME A24 / A32, D8/D16/D32 access

• 9. Form Factor: 6U single Eurocard VME module

• 10. Operating Temperature: -20℃ ~ +60℃

Core Functions

• 1. Build synchronous shared memory network for multiple distributed VME controller racks.

• 2. Automatically broadcast write data to all reflective memory nodes via fiber link.

• 3. Generate hardware interrupt signals to synchronize tasks among different control nodes.

• 4. Use transmit/receive FIFO buffer to stabilize throughput during peak data burst.

• 5. Provide high-speed interconnection for multi-cpu real-time simulation and turbine control system.

Application Scenarios

• 1. GE gas and steam turbine VME distributed control cabinet communication rack.

• 2. Hardware-in-loop real-time simulation test bench multi-node synchronization network.

• 3. Aerospace and industrial high-speed distributed computing platform retrofit.

• 4. Legacy VMIC VME reflective memory network overhaul and spare replacement.

• 5. Matched communication spare for VMIVME1150 / 2170A / 4150 I/O rack group.

FAQ

• 1. Q: What is GE VMIVME5576?
      A: It is a fiber reflective memory VME board for low-latency synchronous data sharing between VME racks.

• 2. Q: Does it require special driver for data exchange?
      A: Basic data mirroring is hardware implemented, transparent to user software.

• 3. Q: Can it work separately without other VMIVME series cards?
      A: It needs VME backplane and at least two VMIVME5576 cards to form a reflective memory network.
