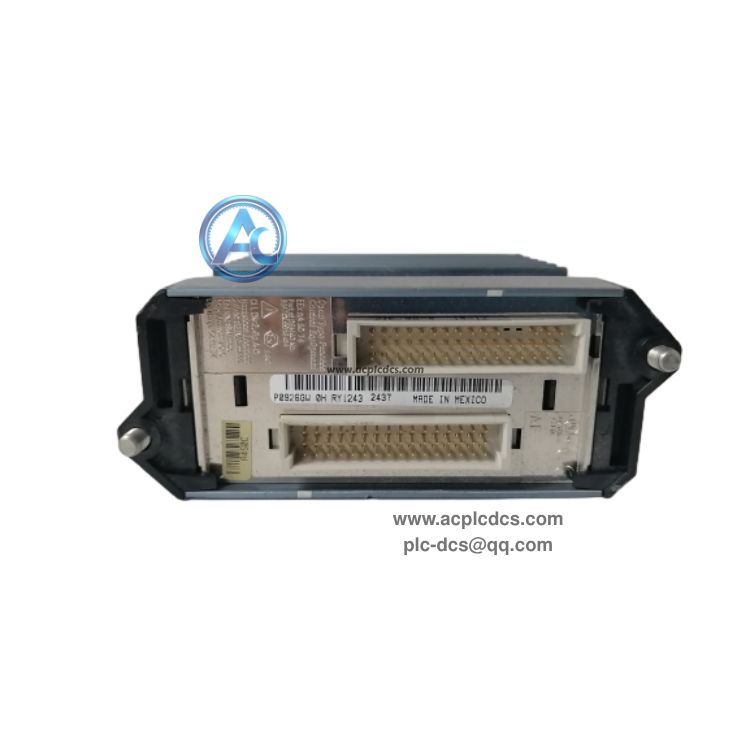

FOXBORO FBM232 Field Device System Integrator (FDSI) Module

FOXBORO FBM232 is an Ethernet field device integration module for Foxboro I/A Series and Evo DCS systems. It acts as a communication gateway to connect single-ported field instruments and third-party equipment to the DCS controller via Ethernet network.

This module supports Modbus TCP and other downloadable protocol drivers, and can communicate with up to 64 field devices. It is rated ISA G3 for harsh industrial environments and widely used as spare parts for process plant DCS cabinet maintenance and upgrade projects.

Data Parameters

• 1. Brand: FOXBORO.

• 2. Model: FBM232.

• 3. Product Type: Field Device System Integrator (FDSI) Module.

• 4. Ethernet Interface: Single RJ45 port, 10/100 Mbps.

• 5. Max Connected Field Devices: Up to 64 units.

• 6. Max DCI Block Connections: 2000 points.

• 7. Power Supply: 24VDC, max power consumption 7W.

• 8. Operating Temperature: -20℃ ~ +70℃.

• 9. Environment Rating: ISA Class G3 harsh industrial grade.

• 10. Supported Protocol: Modbus TCP, downloadable protocol drivers.

Core Functions

• 1. Serve as Ethernet gateway to integrate third-party field devices into Foxboro DCS system.

• 2. Collect real-time process data from instruments and convert data into DCI blocks for DCS control database.

• 3. Support downloadable protocol drivers to adapt multiple types of industrial communication devices.

• 4. Communicate with DCS controller through redundant internal module fieldbus.

• 5. Built-in continuous self-diagnosis to detect network and module hardware faults.

Application Scenarios

• 1. Petrochemical plant Foxboro I/A series DCS system network integration cabinet.

• 2. Oil & gas refinery and pipeline field instrument data collection and monitoring.

• 3. Power plant thermal control system third-party equipment communication access.

• 4. Chemical process control system DCS cabinet upgrade and spare parts replacement.

• 5. Legacy Foxboro Evo DCS system maintenance spare inventory.

FAQ

• 1. Q: What is FOXBORO FBM232?
      A: It is FDSI field device integration module for Foxboro DCS, used to connect field instruments and third-party devices via Ethernet.

• 2. Q: How many field devices can FBM232 connect?
      A: A single FBM232 module can communicate with up to 64 field devices on the Ethernet network.

• 3. Q: What environment can FBM232 adapt to?
      A: It meets ISA G3 harsh environment standard, suitable for high humidity, dust and corrosive industrial workshop conditions.
