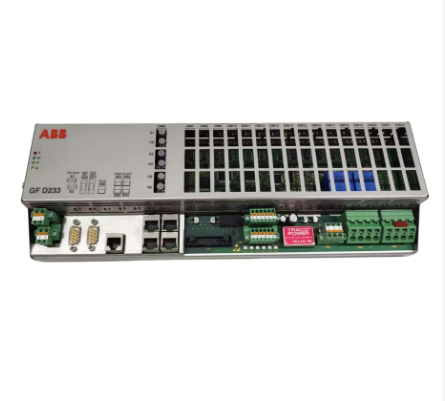

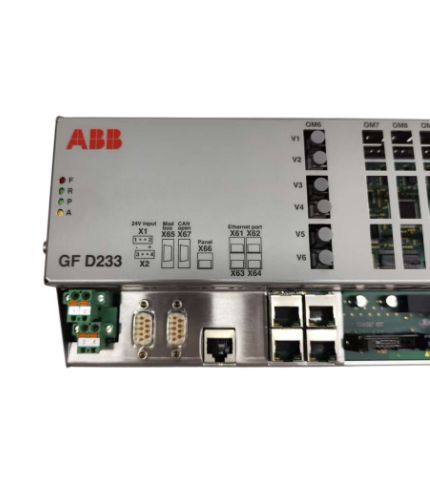

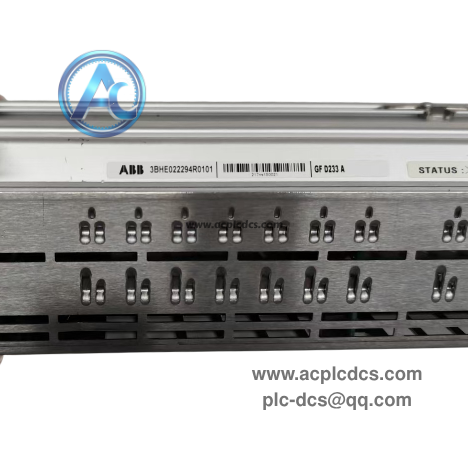

ABB GFD233A 3BHE022294R0101 DC Drive Control Interface Module in stock
ABB GFD233A 3BHE022294R0101 is a high-performance control interface module designed for ABB DCS500 series DC drive systems. It acts as the core signal processing board for DC motor speed and torque regulation, responsible for collecting field feedback signals and executing drive closed-loop control logic.
This module comes with multiple digital and analog channels, galvanic isolation and fault diagnosis functions. It is discontinued legacy spare part, widely used for maintenance and replacement of aging DCS500 DC drive cabinets in metallurgy, paper and industrial processing lines.
Main Specifications
| Item | Parameter |
| [1] Brand | ABB |
| [2] Model | GFD233A 3BHE022294R0101 |
| [3] Product Type | DC Drive Control Interface Module |
| [4] Compatible Series | ABB DCS500 DC Drive System |
| [5] Signal Type | Analog & digital input / output signals |
| [6] Isolation | Galvanic isolation between channels |
| [7] Onboard Diagnostics | Built-in fault detection and LED status indicators |
| [8] Mounting | Rack-mounted inside DCS500 drive cabinet |
| [9] Power Supply | Internal power from drive unit |
| [10] Operating Temp | -10℃ ~ +55℃ |
Core Functions
| Function | Description |
| [1] DC Motor Closed-loop Control | Execute speed and torque closed-loop regulation for DCS500 DC motor drive. |
| [2] Analog & Digital Signal Acquisition | Collect motor current, voltage and switch status signals from field side. |
| [3] Drive Fault Monitoring & Protection | Detect overcurrent, overload and abnormal status, trigger interlock protection actions. |
| [4] System Communication Interface | Exchange control and status data between drive unit and upper controller. |
| [5] On-site Status Indication | LED indicators display running, alarm and fault status for quick troubleshooting. |
Application Scenarios
| Industry | Usage |
| [1] Metallurgy Industry | DC drive control for rolling mill and metal processing production lines. |
| [2] Paper & Pulp | DC motor speed control for paper making and winding machines. |
| [3] Material Handling | Heavy-duty DC drive control for hoist and conveyor equipment. |
| [4] Legacy DCS500 System Maintenance | Spare replacement for aging ABB DCS500 DC drive control cabinets. |
FAQ
| Question | Answer |
| [1] What is ABB GFD233A 3BHE022294R0101? | It is a control interface board specially used for ABB DCS500 series DC drive for motor speed and torque control. |
| [2] Which drive system is it compatible with? | It is designed for ABB DCS500 DC drive cabinet, can not be used for ACS AC drives. |
| [3] What protection functions does it have? | It supports overcurrent, overload and abnormal status interlock protection for DC drive unit. |
| [4] Is it obsolete spare part? | Yes, it is legacy spare for maintenance and replacement of old DCS500 DC drive systems. |
