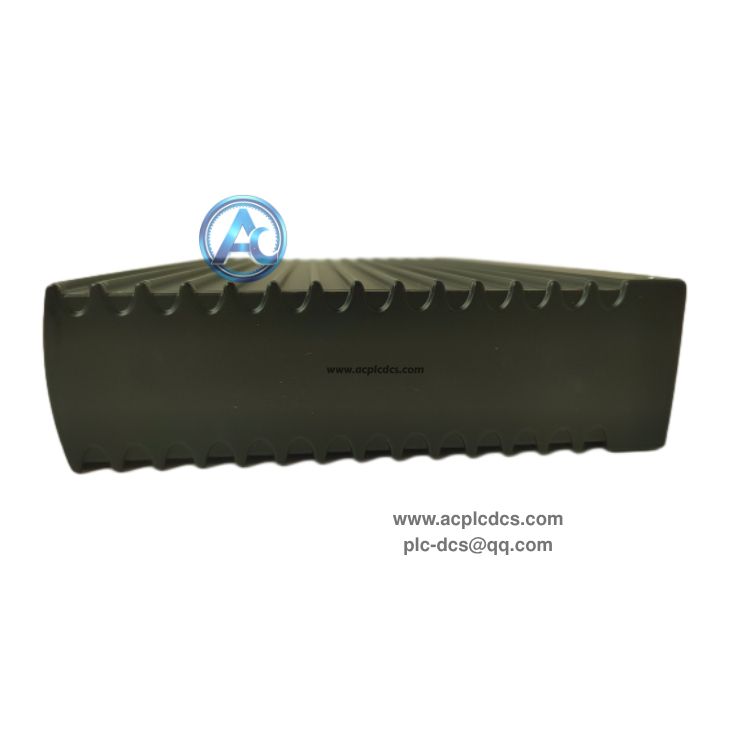

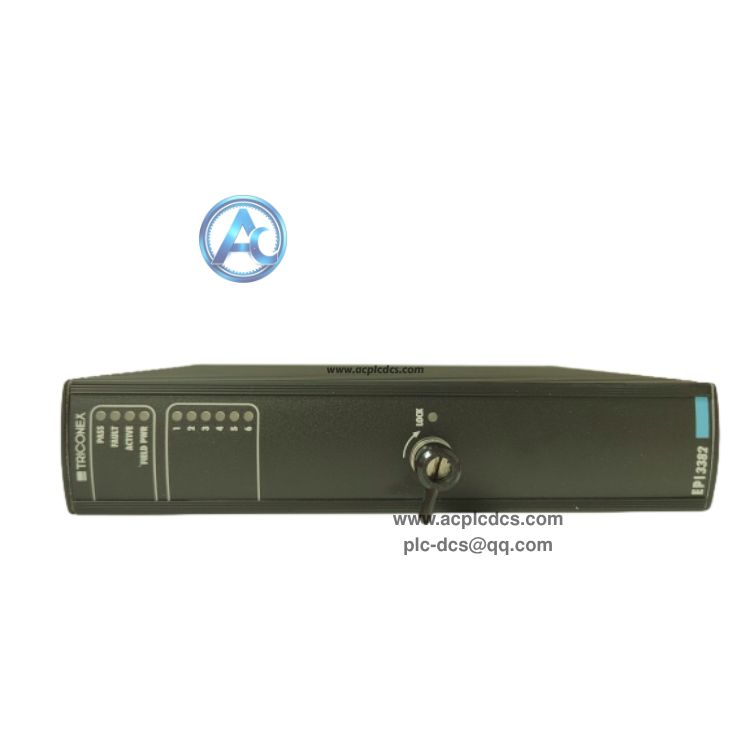

TRICONEX EPI3382 32-Channel Analog Input Module
TRICONEX EPI3382 (also known as 3382) is a 32-channel high-density analog input module for Tricon triple modular redundant safety instrumented system. It acquires 0-10V DC analog signals from field transmitters and sensors, with TMR 2oo3 voting architecture to eliminate single point failure for safety loop.
This module supports continuous per-channel self-diagnosis to detect wire break, short circuit and hardware drift. It features hot-swap function for online replacement without system shutdown, certified to IEC 61508 SIL3. It is end-of-life, supplied as surplus or refurbished spare parts for legacy Tricon SIS rack maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Triconex (Schneider Electric) |
| 2 | Model | EPI3382 (3382) |
| 3 | Module Type | 32-Channel Analog Input Module (AI) |
| 4 | Input Signal | 0~10V DC |
| 5 | Safety Architecture | TMR triple modular redundancy, 2oo3 voting |
| 6 | Safety Level | SIL3 (IEC 61508) |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Collect 0~10V DC analog signals from field pressure, temperature and level transmitters |
| 2 | TMR 2oo3 hardware voting to ensure signal integrity and avoid single point failure |
| 3 | Built-in per-channel diagnostics to detect open circuit, short circuit and signal abnormality |
| 4 | Hot-swap support for online replacement without SIS system shutdown |
| 5 | Transmit validated analog process data to Tricon main controller for safety logic calculation |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Oil & gas plant emergency shutdown system (ESD) analog signal acquisition |
| 2 | Petrochemical process safety instrumented system (SIS) monitoring |
| 3 | Power plant boiler and turbine safety interlock measurement system |
| 4 | Fire & gas (F&G) detection and safety protection system |
| 5 | Legacy Tricon SIS rack spare replacement and system overhaul project |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is TRICONEX EPI3382? A:It is the 32-channel 0-10V analog input module for Tricon TMR SIS. It collects analog measurement signals from field transmitters, uses triple redundant voting to validate data and feeds process values into the safety controller for safety interlock logic. |
| 2 | Q:What signal type does EPI3382 accept? A:It is designed for 0~10V DC voltage signals from field sensors, pressure, temperature and level transmitters, widely used in safety loop measurement for process industry. |
| 3 | Is TRICONEX EPI3382 still in production? A:This analog input module has been discontinued. Available stock is new surplus or refurbished spare parts for maintenance and replacement of existing Tricon SIS safety systems. |
