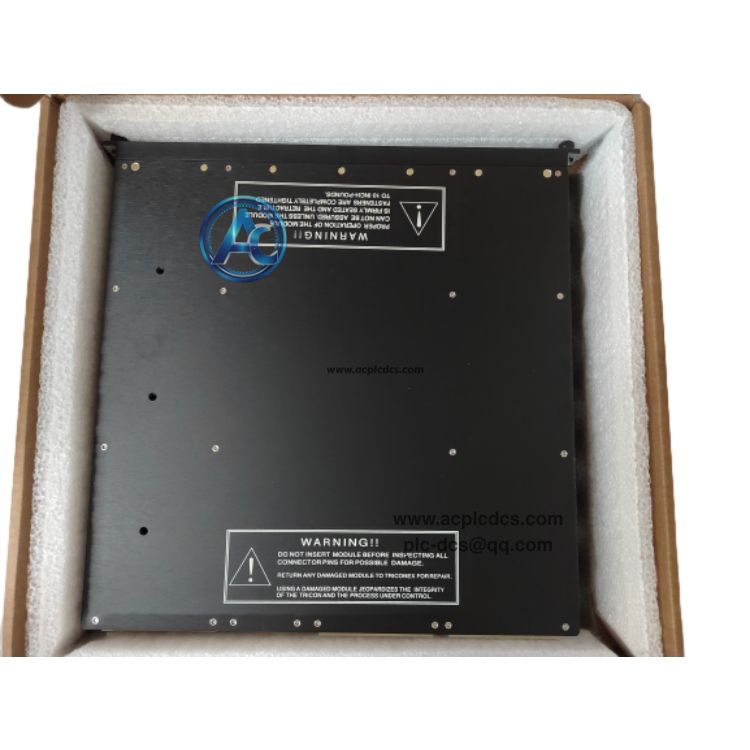

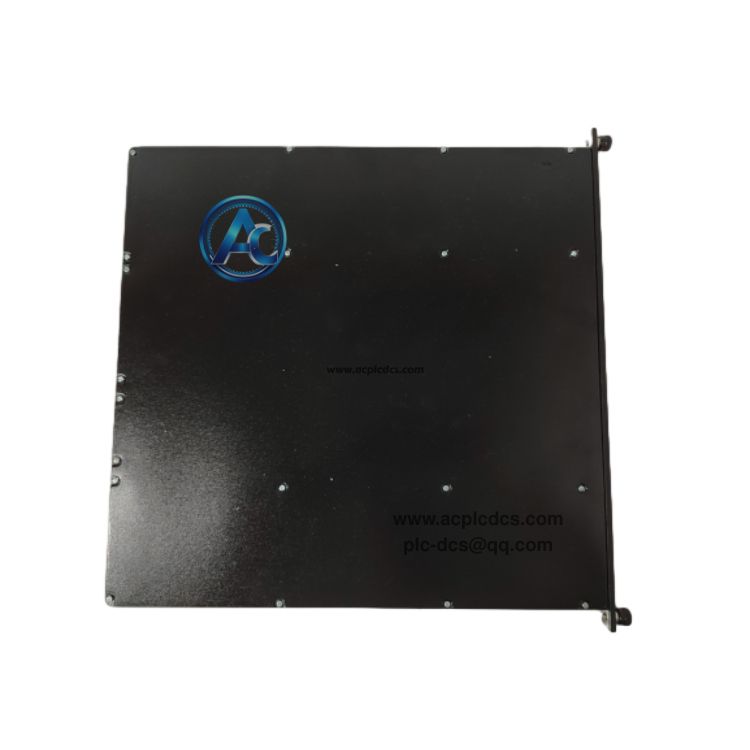

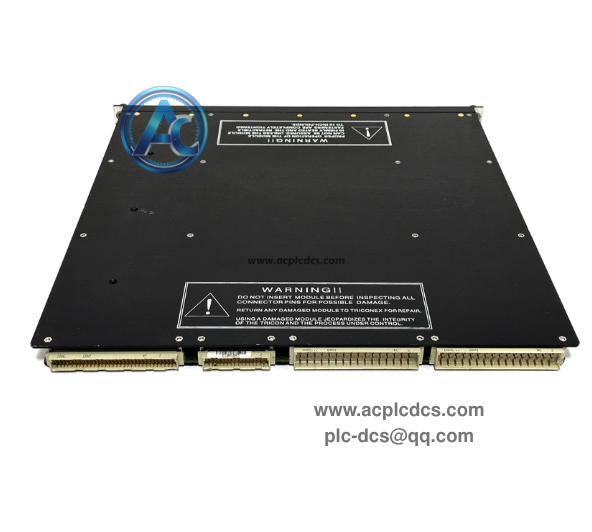

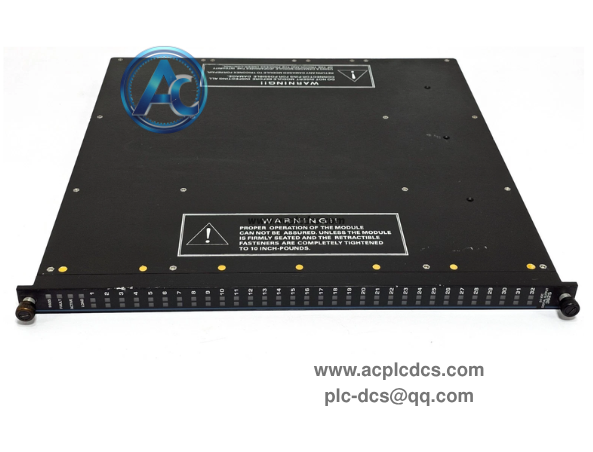

TRICONEX 3625C1 Digital Output Module in stock
TRICONEX 3625C1 is a high-density 32-channel digital output module designed for Tricon TMR safety instrumented system. It adopts triple modular redundant 2oo3 voting architecture, providing 24VDC discrete output to drive solenoid valves, relays and field actuators for ESD, BMS and F&G safety interlock systems.
This module supports continuous per-channel diagnostics to detect short circuit, open wire and internal hardware faults. It allows hot-swap replacement without system shutdown, certified to IEC 61508 SIL3. It is end-of-life, supplied as surplus or refurbished spare parts for legacy Tricon safety rack maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Triconex (Schneider Electric) |
| 2 | Model | 3625C1 |
| 3 | Module Type | 32-Channel Digital Output Module (DO) |
| 4 | Field Output | 24VDC, 1.7A per channel |
| 5 | Safety Architecture | TMR triple modular redundancy, 2oo3 voting |
| 6 | Safety Level | SIL3 (IEC 61508) |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Output 24VDC discrete control signals to solenoid valves and safety relays |
| 2 | TMR 2oo3 hardware voting to eliminate single point failure for safety action |
| 3 | Continuous channel diagnostics for short circuit, open circuit and module fault detection |
| 4 | Hot-swap support for online replacement without SIS system shutdown |
| 5 | Fail-safe output design to trigger trip action when module or power fault occurs |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Oil & gas plant emergency shutdown system (ESD) |
| 2 | Power plant burner management system (BMS) and boiler interlock |
| 3 | Chemical and petrochemical fire & gas (F&G) safety protection system |
| 4 | Legacy Tricon SIS rack spare replacement and equipment overhaul project |
| 5 | Critical process safety instrumented system (SIS) actuator control |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is TRICONEX 3625C1? A:It is a 32-channel 24VDC digital output module for Tricon TMR SIS. It receives safety logic commands from main controller and drives field actuators, adopting 2oo3 voting to guarantee high integrity emergency trip protection. |
| 2 | Q:What is the fail-safe characteristic? A:When module power fails or internal fault is detected, outputs will automatically switch to safe state to shut down the process, which meets the safety requirement of emergency shutdown systems. |
| 3 | Q:Is TRICONEX 3625C1 still in production? A:This digital output module has been discontinued. Available stock is new surplus or refurbished spare parts for maintenance and replacement of existing Tricon SIS safety racks. |
