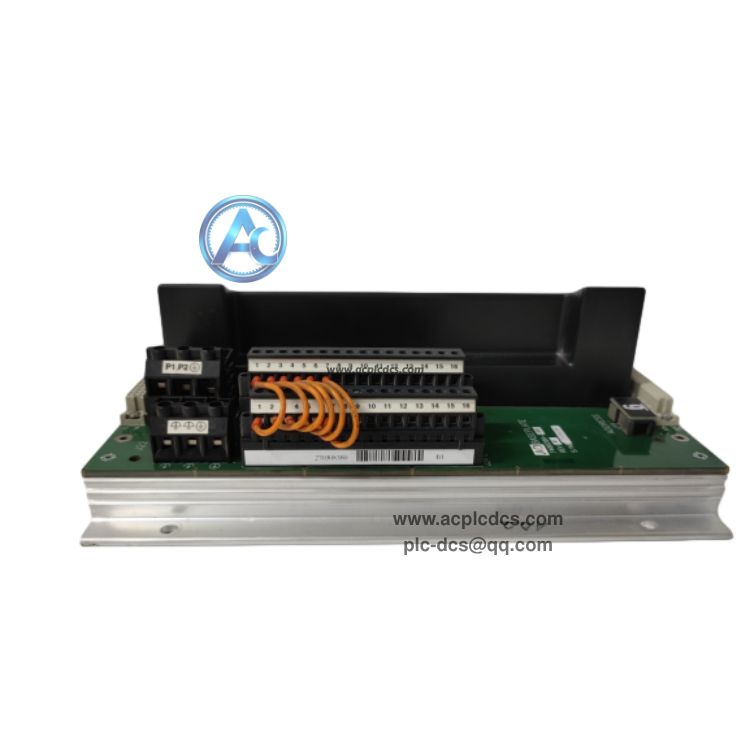

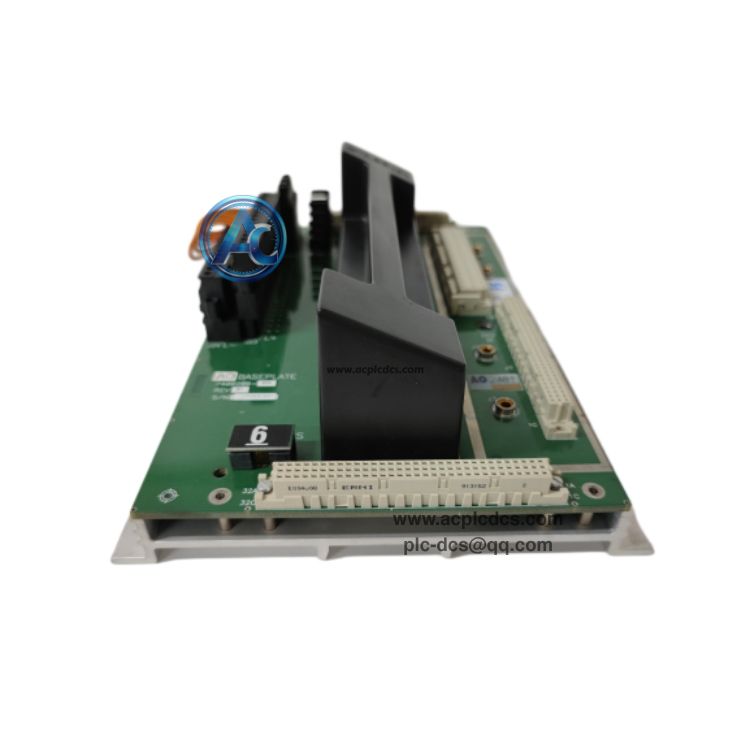

TRICONEX AO2481 8-Channel Analog Output Module in stock

TRICONEX AO2481 is an 8-channel isolated analog output module for Tricon triple modular redundant safety instrumented system. It outputs 4-20mA analog control signals to field control valves and actuators to adjust temperature, pressure and flow in safety-critical industrial processes.

This module adopts TMR triple voting fault-tolerant architecture with 12-bit high precision and continuous channel self-diagnosis function. It supports online hot swap without shutting down the SIS system, widely used as spare replacement for petrochemical, power and chemical safety control cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: TRICONEX.

• 2. Model: AO2481.

• 3. Product Type: 8-Channel Analog Output Module.

• 4. System Architecture: Triple Modular Redundant (TMR).

• 5. Safety Level: IEC 61508 SIL3 certified.

• 6. Output Signal: 4~20mA DC analog current signal.

• 7. Resolution: 12-bit high precision output.

• 8. Accuracy: Less than 0.25% of full scale range.

• 9. Feature: Support online hot swap replacement.

• 10. Compatible System: Tricon / Trident TMR SIS safety rack system.

Core Functions

• 1. Receive safety control commands and output 4-20mA analog signals to field control valves.

• 2. TMR triple channel voting to guarantee high reliability of analog control output signals.

• 3. Built-in loop self-diagnosis to detect wire break, short circuit and channel hardware faults.

• 4. Support hot swap maintenance without interrupting the running safety instrumented system.

• 5. Realize continuous process regulation under normal operation and safety limiting control.

Application Scenarios

• 1. Oil & gas industry ESD emergency shutdown system spare parts replacement.

• 2. Chemical plant reactor safety interlock control cabinet maintenance and retrofit.

• 3. Power plant boiler and turbine safety protection system renovation project.

• 4. Petrochemical refining SIS safety instrumented system spare parts inventory.

• 5. Legacy Tricon Trident TMR safety automation system overhaul and module renewal.

FAQ

• 1. Q: What is TRICONEX AO2481?
      A: It is SIL3 8-channel analog output module for TRICONEX Tricon / Trident TMR safety instrumented SIS system.

• 2. Q: What field devices can TRICONEX AO2481 control?
      A: It outputs 4-20mA signals to drive control valves, positioners and process actuators.

• 3. Q: What safety standard does TRICONEX AO2481 comply with?
      A: It meets IEC 61508 standard and obtains SIL3 safety certification for safety-critical industrial applications.
