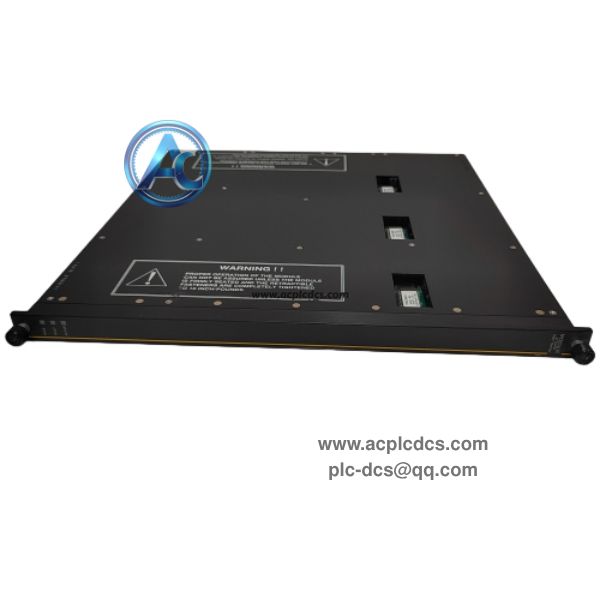

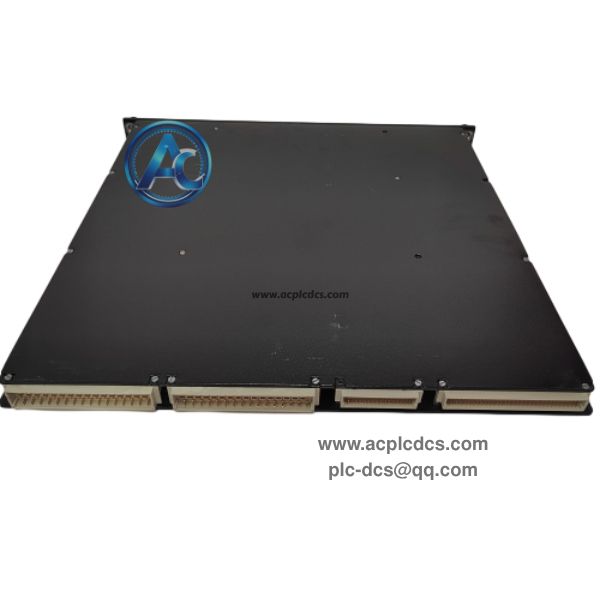

Triconex 3700A Analog Input Module in stock

Triconex 3700A is a 32-channel differential analog input module for Triconex Tricon TMR safety instrumented system(SIS). It collects 0~5VDC analog signals from field transmitters, converts analog signals to digital data and transmits data to triple redundant main processors for 2oo3 safety voting calculation.

This module adopts triple modular redundancy architecture with 12-bit A/D conversion and per-channel continuous diagnostics. It supports hot-swap replacement without shutting down the safety system, widely used for ESD, FGS safety cabinet maintenance, spare parts replacement and safety interlock system retrofit projects.

Data Parameters

• 1. Brand: Triconex (Schneider Electric).

• 2. Model: 3700A.

• 3. Product Type: 32-Channel Differential Analog Input Module.

• 4. Product Series: Tricon Safety Instrumented System.

• 5. Input Range: 0~5 VDC with +6% overrange capability.

• 6. Resolution: 12-bit A/D conversion.

• 7. Architecture: Triple Modular Redundancy (TMR).

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Continuous per-channel hardware and wiring fault detection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Acquire differential analog voltage signals from pressure, temperature and flow field transmitters.

• 2. Convert analog signals to digital values and send data to triple redundant CPU for safety voting processing.

• 3. Differential input design suppresses common-mode interference and improves anti-interference ability on industrial sites.

• 4. Real-time channel diagnostics detect sensor open circuit, short circuit and module hardware abnormalities.

• 5. Support hot-swap replacement for online maintenance without stopping the whole safety instrumented system.

Application Scenarios

• 1. Oil & gas plant ESD emergency shutdown system analog signal collection cabinet spare replacement.

• 2. Petrochemical factory fire & gas detection system analog monitoring upgrade project.

• 3. Power plant safety interlock system process variable collection spare parts renewal.

• 4. Refining and chemical factories SIL3 safety protection system spare inventory backup.

• 5. Legacy Triconex Tricon safety system aging analog input module replacement project.

FAQ

• 1. Q: What is Triconex 3700A?
      A: It is 32-channel differential analog input module for Tricon SIS safety system, used for collecting 0-5VDC analog sensor signals.

• 2. Q: What is the difference between 3700 and 3700A?
      A: 3700A is upgraded version with improved overrange protection and optimized circuit anti-interference performance.

• 3. Q: Can 3700A be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole Tricon safety system.
