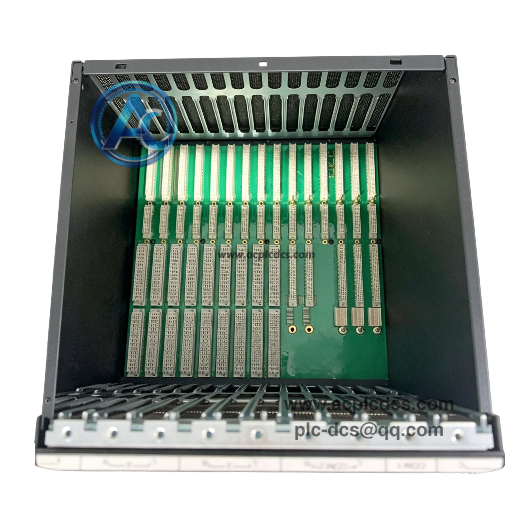

Triconex 8120E Enhanced Performance Main Chassis
Triconex 8120E is an enhanced performance main chassis for Tricon SIS safety instrumented systems under Schneider Electric. It is the core hardware rack that accommodates TMR processors, redundant power supplies, I/O modules and communication modules for safety control architecture.
This chassis adopts triple modular redundant design with 2-out-of-3 voting logic, certified SIL3. All inserted modules support hot swap. It is legacy spare widely used for maintenance replacement of ESD, F&G and burner management systems.
Main Specifications
| Item | Parameter |
| [1] Brand | Triconex (Schneider Electric) |
| [2] Model | 8120E |
| [3] Product Type | SIS Main Chassis |
| [4] Architecture | Triple Modular Redundancy (TMR) |
| [5] Safety Level | IEC 61508 SIL 3 |
| [6] Feature | Hot swappable modules |
Core Functions
| Function | Description |
| [1] System Hardware Carrier | Host Tricon processor, power, I/O and communication modules to build complete SIS rack. |
| [2] TMR Fault Tolerance | Supports 2oo3 voting, single component fault will not shut down the safety system. |
| [3] Online Module Replacement | Hot swap of I/O and power modules without system shutdown during maintenance. |
| [4] Integrated System Diagnostics | Backplane circuit monitors module status and reports hardware faults to controller. |
Application Scenarios
| Industry | Usage |
| [1] Oil & Gas | ESD emergency shutdown and fire & gas protection for offshore platforms. |
| [2] Chemical Industry | Safety interlock protection for chemical reactors and process units. |
| [3] Power Generation | Turbine protection and burner management safety control systems. |
| [4] Legacy System Maintenance | Spare chassis replacement for aging Tricon SIS safety racks. |
FAQ
| Question | Answer |
| [1] What is Triconex 8120E? | It is an enhanced performance main chassis for Tricon TMR SIS safety instrumented system. |
| [2] Can modules be hot swapped in this chassis? | Yes, all supported I/O and power modules support hot swap without rack shutdown. |
| [3] What safety certification does it meet? | It meets IEC 61508 SIL3 safety standard for safety instrumented systems. |
| [4] Is Triconex 8120E legacy spare part? | Yes, it is discontinued legacy spare for maintenance replacement of existing Tricon racks. |
