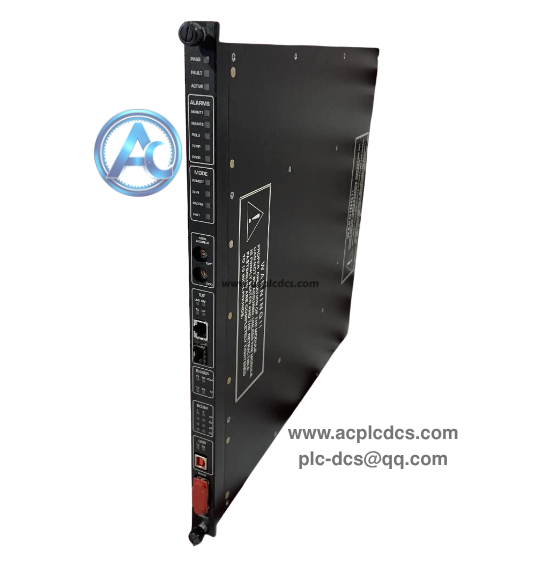

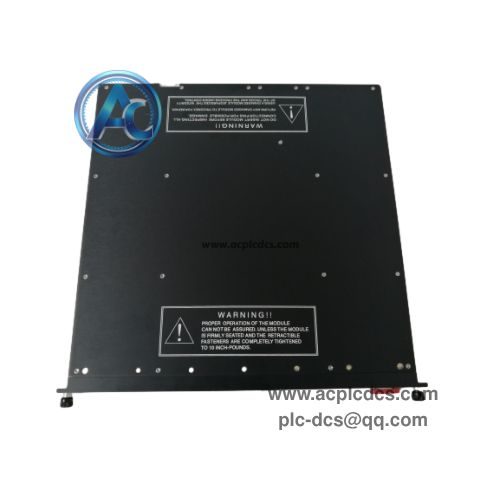

Triconex 3009 Enhanced Main Processor (UMP) Module in stock
Triconex 3009 is an enhanced main processor module for Tricon TMR safety instrumented systems, owned by Schneider Electric. It serves as the core controller executing safety logic, processing field I/O data and implementing 2-out-of-3 voting for safety interlock operations.
This SIL3 certified triple redundant processor supports multiple communication interfaces and continuous online self-diagnosis. It is legacy spare widely used for maintenance replacement of ESD, fire & gas and burner management safety systems.
Main Specifications
| Item | Parameter |
| [1] Brand | Triconex (Schneider Electric) |
| [2] Model | 3009 |
| [3] Product Type | Enhanced Main Processor (UMP) Module |
| [4] Architecture | Triple Modular Redundancy (TMR) |
| [5] Safety Grade | IEC 61508 SIL 3 |
| [6] Compatible Rack | Tricon 8110 / 8120E main chassis |
Core Functions
| Function | Description |
| [1] Safety Logic Execution | Run ESD and interlock control programs, process input signals and output safety commands. |
| [2] TMR 2oo3 Voting | Three independent processing channels, automatically mask single channel hardware faults. |
| [3] Multi-Protocol Communication | Ethernet and serial interfaces for data exchange with HMI, DCS and host systems. |
| [4] Continuous Self-Diagnosis | Detect processor, memory and backplane faults and report alarms to monitoring software. |
Application Scenarios
| Industry | Usage |
| [1] Oil & Gas | ESD emergency shutdown and fire & gas protection for offshore platforms. |
| [2] Chemical Industry | Reactor safety interlock and hazardous process protection in chemical plants. |
| [3] Power Generation | Turbine protection and burner management safety control systems. |
| [4] Legacy System Maintenance | Spare processor replacement for aging Tricon SIS racks. |
FAQ
| Question | Answer |
| [1] What is Triconex 3009? | It is enhanced main processor module (UMP), the core controller of Tricon TMR SIS safety system. |
| [2] What safety level does it support? | It is IEC 61508 SIL3 certified for safety instrumented system applications. |
| [3] What is TMR architecture? | Triple Modular Redundancy, three independent processing channels with 2oo3 fault-tolerant voting. |
| [4] Is Triconex 3009 discontinued? | Yes, it is legacy spare part used for maintenance replacement of existing Tricon safety racks. |
