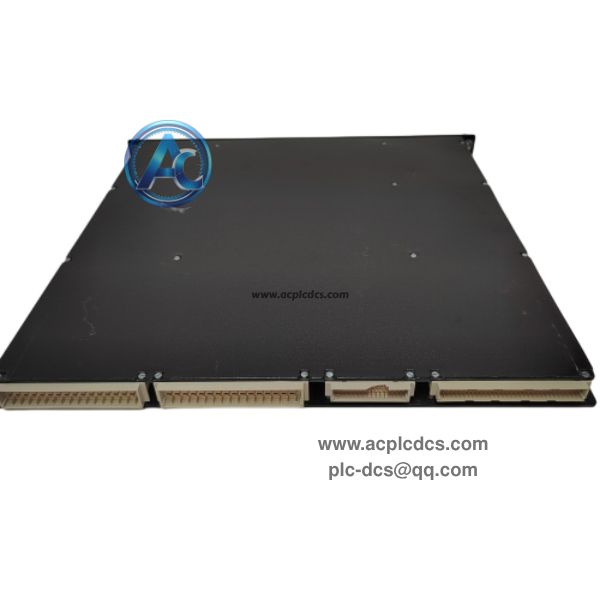

Triconex 3636R Relay Output Module in stock

Triconex 3636R is a 32-channel non-triplicated relay output module for Triconex Tricon safety instrumented system(SIS). It receives voted logic signals from the TMR controller and drives isolated dry relay contacts to control field devices, annunciators and solenoid valves in safety related applications.

This module adopts non-commoned independent relay channels, each channel equipped with fast acting fuse and loopback diagnostic circuit. It supports hot-swap replacement during operation, widely used for safety system cabinet maintenance, spare parts replacement and safety interlock retrofit projects.

Data Parameters

• 1. Brand: Triconex (Schneider Electric).

• 2. Model: 3636R.

• 3. Product Type: 32-Channel Relay Output Module.

• 4. Product Series: Tricon Safety Instrumented System.

• 5. Channel Count: 32 non-commoned independent relay channels.

• 6. Contact Rating: Max 155V AC/DC, 2A per channel.

• 7. Fuse: 2.5A fast fuse for each output channel.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Relay loopback and hardware fault detection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Receive 2oo3 voted safety logic signals from Tricon main processor module.

• 2. Actuate isolated dry relay contacts to drive field annunciators, solenoid valves and auxiliary interlock equipment.

• 3. Built-in loopback diagnostic circuit to verify relay working status and detect contact or wiring faults.

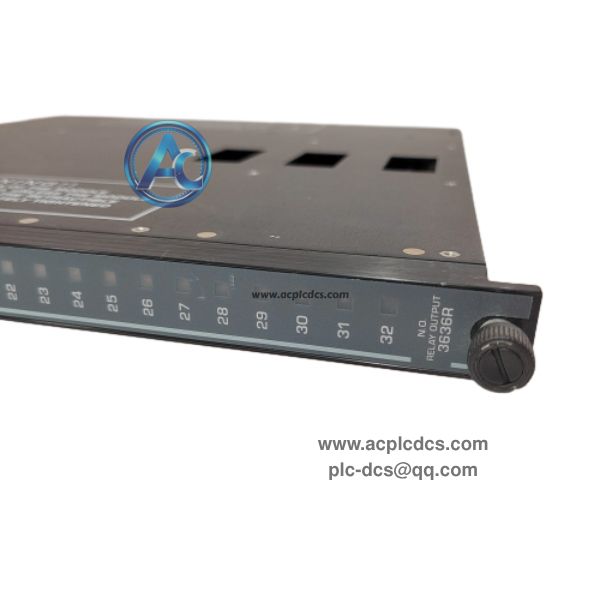

• 4. Equipped with LED indicators to display module pass, fault and channel active status.

• 5. Support hot-swap replacement for on-site maintenance without stopping the safety system.

Application Scenarios

• 1. Oil & gas plant safety instrumented system alarm and interlock cabinet spare replacement.

• 2. Petrochemical industry SIS system annunciator panel and solenoid valve control upgrade project.

• 3. Power plant safety interlock system auxiliary contact output spare parts renewal.

• 4. Chemical and refining factories safety protection system spare inventory backup.

• 5. Legacy Triconex Tricon safety system aging relay output module replacement project.

FAQ

• 1. Q: What is Triconex 3636R?
      A: It is 32-channel non-triplicated relay output module for Triconex Tricon SIS safety system, used for dry contact interlock and alarm output.

• 2. Q: What is non-commoned relay design?
      A: Every relay channel has independent isolated contacts, no shared common terminal between different channels.

• 3. Q: Can 3636R be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole Tricon safety system.
