Products Description

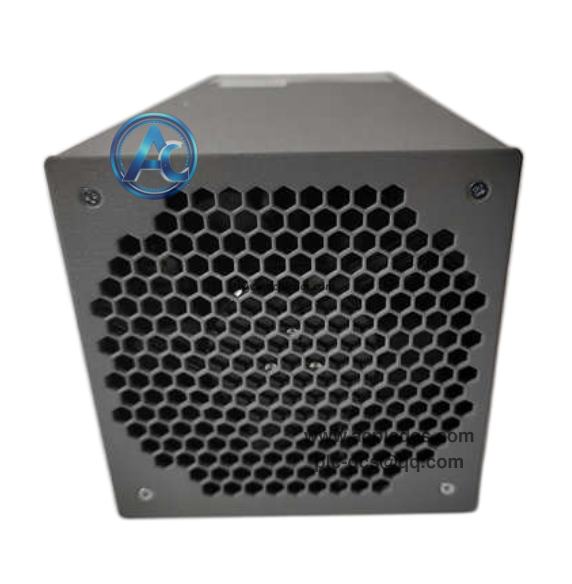

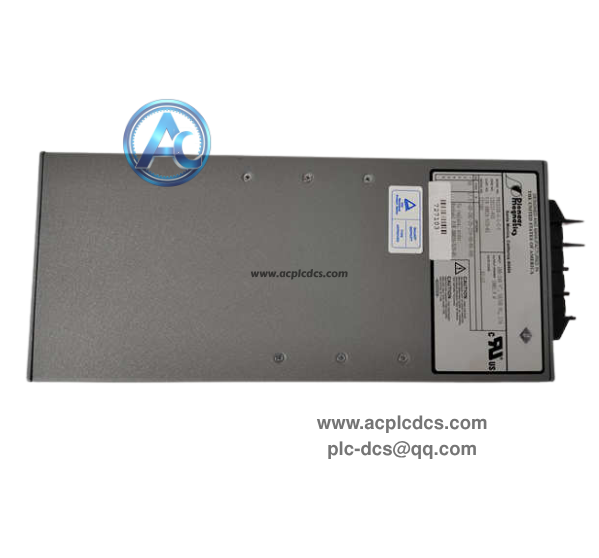

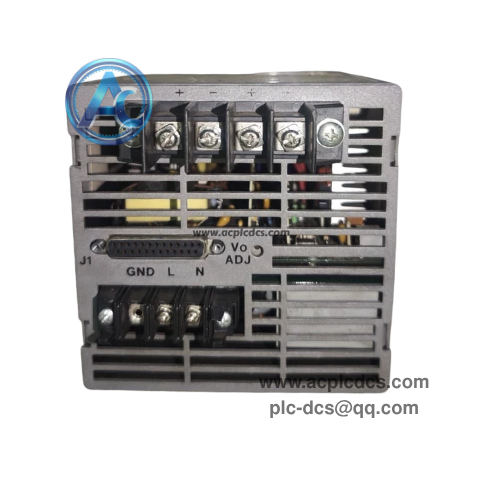

Pioneer Magnetics 80026-529-01 AC/DC Industrial Power Supply (PM3326B-6-1-2-E) in stock
Pioneer Magnetics 80026-529-01 (Model PM3326B-6-1-2-E) is a high-power single-phase AC/DC switching power supply for industrial automation systems. It delivers stable DC output with wide AC input range, built-in protection circuits and high efficiency, commonly used as power source for Allen‑Bradley industrial rack equipment.
This 1000W power supply features overvoltage, overcurrent and overtemperature protection, supporting continuous heavy-duty operation in industrial cabinet environments. It is an obsolete power unit, available as surplus or refurbished spare parts for legacy automation equipment replacement and maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | Pioneer Magnetics |
| 2 | Model | 80026-529-01, PM3326B-6-1-2-E |
| 3 | Module Type | Single-phase AC/DC Switching Power Supply |
| 4 | Rated Power | 1000W |
| 5 | Input Type | Wide range AC single phase |
| 6 | Protection | OVP, OCP, OTP, short circuit protection |
| 7 | Operating Temperature | 0℃ ~ +50℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Convert single-phase AC mains to regulated DC power for industrial rack hardware |
| 2 | Provide 1000W continuous power output for PLC, I/O and controller modules |
| 3 | Multi-layer safety protection against overvoltage, overcurrent and overheating |
| 4 | High efficiency switching topology to reduce heat generation inside cabinet |
| 5 | Built-in fault detection to alarm abnormal power status for system diagnostics |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Allen‑Bradley legacy industrial control rack power supply replacement |
| 2 | Factory automation, process control and heavy industry control cabinets |
| 3 | Continuous production line PLC and DCS controller power subsystem |
| 4 | Industrial spare parts inventory and equipment overhaul project |
| 5 | Legacy automation system maintenance and retrofit upgrade |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is Pioneer Magnetics 80026-529-01? A:It is a 1000W single-phase AC/DC switching power supply (PM3326B-6-1-2-E) made by Pioneer Magnetics. It supplies stable DC power for Allen‑Bradley and other industrial control racks with comprehensive safety protection functions. |
| 2 | Q:What protection features does this power supply have? A:It includes overvoltage protection(OVP), overcurrent protection(OCP), over-temperature protection(OTP) and short-circuit protection, which can automatically cut off output to protect downstream control modules under fault conditions. |
| 3 | Q:Is Pioneer Magnetics 80026-529-01 still in production? A:This power supply has been discontinued. Available stock is new surplus or refurbished spare parts for maintenance of old industrial control racks. |
