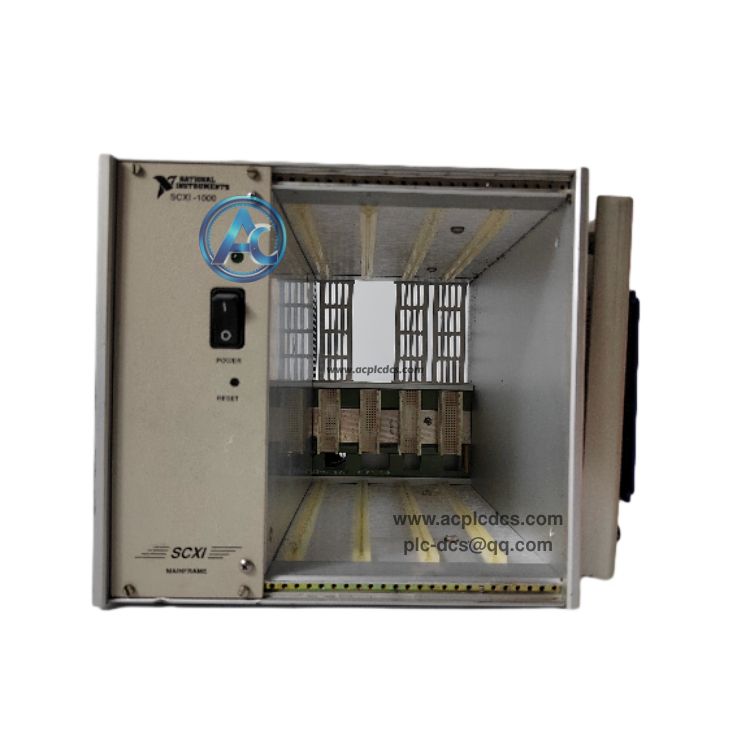

NI SCXI-1000 4-Slot AC Signal Conditioning Chassis in stock
NI SCXI-1000 is a rugged low-noise 4-slot AC chassis for National Instruments SCXI signal conditioning modules. It supplies stable power to installed SCXI modules and manages backplane timing, trigger signals and signal routing between DAQ hardware and conditioning modules.
It supports daisy-chain connection, allowing up to 8 chassis linked by one DAQ device for high-channel measurement systems. Multiple AC voltage variants are available for global power grids. It is end-of-life, supplied as surplus or refurbished spare for legacy test & measurement system maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | NI (National Instruments) |
| 2 | Model | SCXI-1000 |
| 3 | Module Type | 4-Slot AC SCXI Signal Conditioning Chassis |
| 4 | Slot Quantity | 4 slots for SCXI signal conditioning modules |
| 5 | Interconnection | Daisy chain, max 8 chassis per DAQ controller |
| 6 | Feature | Low noise backplane, timing & trigger routing |
| 7 | Operating Temperature | 0℃ ~ +50℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Provide regulated AC power supply for up to 4 SCXI signal conditioning modules |
| 2 | Backplane routing for analog signals, timing clock and hardware trigger signals |
| 3 | Daisy-chain interface to expand measurement channels by cascading multiple chassis |
| 4 | Low-noise design to reduce interference for thermocouple, strain gauge and RTD signals |
| 5 | Work with NI DAQ hardware and NI-DAQmx driver for data acquisition configuration |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Thermocouple, RTD, strain gauge and 4-20mA process signal measurement |
| 2 | Industrial test bench, laboratory data acquisition and vibration monitoring system |
| 3 | High-channel distributed measurement system with multi-chassis daisy chain |
| 4 | Legacy SCXI test system spare replacement and chassis overhaul |
| 5 | Automotive, aerospace and energy industry sensor measurement platform |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is NI SCXI-1000? A:It is a 4-slot AC-powered chassis for NI SCXI signal conditioning modules. It supplies power and handles signal/trigger routing, used to amplify and filter low-level sensor signals before sending to DAQ devices for measurement. |
| 2 | Q:What modules can be installed inside SCXI-1000? A:It is compatible with full SCXI series modules including SCXI-1102, SCXI-1104C, thermocouple amplifiers, multiplexers and strain gauge signal conditioning modules. |
| 3 | Q:Is NI SCXI-1000 still in production? A:This SCXI chassis has been discontinued by NI. Available stock is new surplus or refurbished units for maintaining existing DAQ and signal conditioning measurement systems. |
