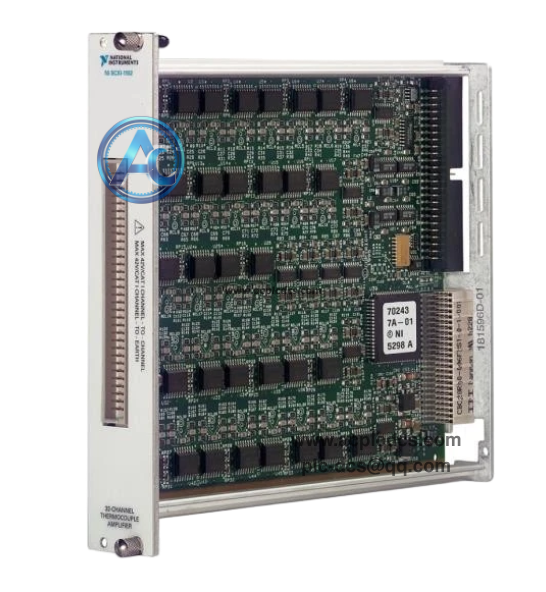

NI SCXI-1102 32-Channel Input Conditioning Module in stock
NI SCXI-1102 is National Instruments SCXI signal conditioning module with 32 differential analog input channels, designed for thermocouple, millivolt and low-level voltage signal measurement. It integrates low-pass filter and programmable gain amplifier, multiplexing multiple input signals to one output channel for DAQ hardware acquisition.
This module has built-in cold junction sensor for thermocouple temperature compensation. It supports gain selection of 1 or 100, equipped with 2Hz low-pass filter to suppress power frequency noise. It is installed in SCXI chassis, widely used for industrial temperature test and low voltage signal data acquisition systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | NI (National Instruments) |
| 2 | Model | SCXI-1102 |
| 3 | Module Type | 32-Channel Differential Analog Input Conditioning Module |
| 4 | Input Channels | 32 differential analog inputs + 1 cold junction sensor channel |
| 5 | Programmable Gain | Gain 1 or 100 selectable |
| 6 | Filter Characteristic | 2Hz two-pole low-pass filter, reject 60Hz noise |
| 7 | Operating Temperature | 0℃ ~ +50℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Condition low-level millivolt signals and thermocouple temperature measurement signals |
| 2 | Software selectable gain amplification for weak analog signal adjustment |
| 3 | Built-in cold junction sensor for thermocouple cold-junction compensation |
| 4 | Multiplex 32 channels into single analog output to connect DAQ acquisition card |
| 5 | Low-pass filtering to reduce industrial power frequency electromagnetic interference |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Multi-point thermocouple temperature monitoring in industrial test benches |
| 2 | Laboratory low voltage and micro-voltage signal measurement and collection |
| 3 | Automotive component thermal performance durability testing |
| 4 | Energy equipment thermal inspection and distributed temperature acquisition system |
| 5 | Legacy SCXI chassis data acquisition system spare parts replacement |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is SCXI-1102 used for? A:It is NI SCXI signal conditioning module for thermocouple and low-level millivolt analog signal conditioning. |
| 2 | Q:How many differential input channels does it have? A:32 differential analog input channels plus one cold junction sensor channel. |
| 3 | Q:What is the difference between SCXI-1102,1102B and 1102C? A:Different low-pass filter cutoff frequency, SCXI-1102 is 2Hz version. |
